Knife Mill GRINDOMIX GM 200 Professional Food Sample Preparation

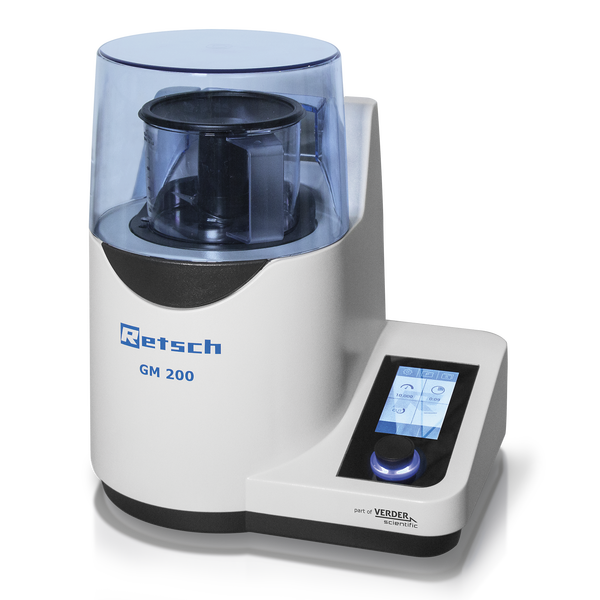

Knife Mill GRINDOMIX GM 200

Knife Mill GRINDOMIX GM 200 complete with 1 litre grinding container of autoclavable plastic, standard lid and knife of stainless steel

20.254.0001

GM 200

220–240 V, 50/60 Hz

20.254.0002

GM 200

100–120 V, 50/60 Hz

Accessories GM 200

Grinding containers, 1 litre

Selection help

Grinding container types:

• Standard grinding container:
  Made of polycarbonate; it is transparent, scratch-proof and autoclavable


• Polypropylene (PP) grinding container:
  The budget-priced alternative, but not autoclavable


• Stainless steel grinding container:
  Best suited for hard or embrittled materials due to its resistance to impact. This container is also used for cryogenic grinding with dry ice.

Please note:
The maximum usable volume of the 1 liter grinding container is 700 ml.

03.045.0057

Grinding container

autoclavable plastic (transparent and scratch-resistant)

03.045.0047

Grinding container

PP

03.045.0050

Grinding container

stainless steel

Lids for grinding containers of autoclavable plastic or PP

Selection help

Lid types for grinding containers of autoclavable plastic (PC) or PP:

• Standard lid:
  Perfectly suited for standard applications.

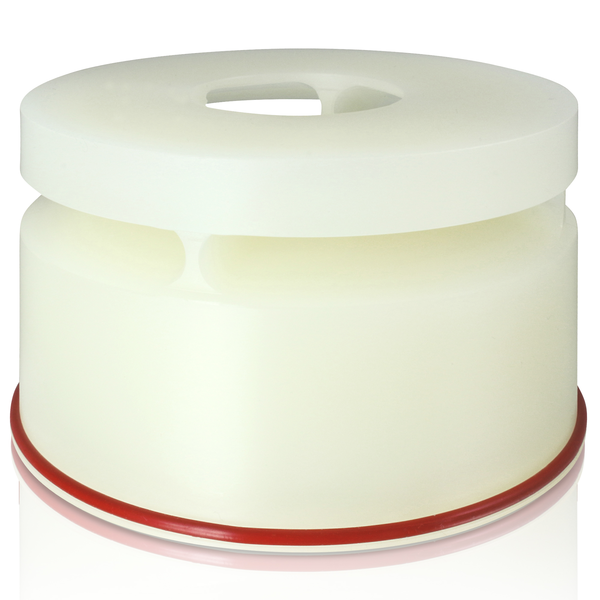

• Reduction lid 0.3 l and 0.5 l:
  These lids reduce the volume of the grinding container to 0.3 l / 0.5 l and are therefore particularly suitable for homogenizing small sample amounts.

  The volume reduction increases the efficiency of the grinding process compared to the use of the standard lid, because the sample is more often pushed against the knife blades. Moreover, the rounded concave underside of the lid promotes excellent mixing and homogenization of the sample.


• Gravity lid:
  Particularly suitable for homogenizing materials which lose volume during the grinding process, like hay.

  The lid automatically reduces the container volume which results in the sample being constantly pushed against the knife blades. This increases the efficiency of the process.


• Gravity lid with overflow channels:
  Particularly suitable for homogenizing materials with a high liquid content which first take up more room but lose quite a lot of volume during the grinding process, like tomatoes.

  The lid automatically reduces the container volume which results in the sample being constantly pushed against the knife blades. This increases the efficiency of the process.

  The liquid which rises between lid and container walls due to capillary forces is led back to the grinding process by the overflow channels.

03.107.0562

Standard lid

PP

22.107.0022

Standard lid

PP

100 pieces

03.107.0606

Reduction lid

PP

for chamber reduction to 0.25 litres

03.107.0310

Reduction lid

PP

for chamber reduction to 0.5 litres

02.107.0327

Gravity lid

PP

02.107.0323

Gravity lid

PP

with overflow channels

Lids for grinding containers of glass or stainless steel

Selection help

Lid types for grinding containers of glass or stainless steel:

• Standard lid:
  Perfectly suited for standard applications.


• Gravity lid:
  Particularly suitable for homogenizing materials which lose volume during the grinding process, like hay.

  The lid automatically reduces the container volume which results in the sample being constantly pushed against the knife blades. This increases the efficiency of the process.


• Gravity lid with overflow channels:
  Particularly suitable for homogenizing materials with a high liquid content which first take up more room but lose quite a lot of volume during the grinding process, like tomatoes.

  The lid automatically reduces the container volume which results in the sample being constantly pushed against the knife blades. This increases the efficiency of the process.

  The liquid which rises between lid and container walls due to capillary forces is led back to the grinding process by the overflow channels.

03.107.0562

Standard lid

PP

22.107.0022

Standard lid

PP

100 pieces

02.107.0328

Gravity lid

PP

02.107.0308

Gravity lid

PP

with overflow channels

Knives

Selection help

Available knives:

• Stainless steel knife:
  Perfectly suited for standard applications.


• Serrated blade knife:
  Particularly suitable for homogenizing tough sample materials like meat with rind or smoked bacon.


• Knife with pure titanium blades:
  Used for heavy-metal-free sample homogenization to prevent abrasion of iron or chrome into the sample.

02.446.0047

Knife of stainless steel

02.446.0057

Knife of stainless steel with serrated blades

02.446.0048

Knife of pure titanium for grinding without heavy-metal contamination

22.446.0004

Full metal knife, for cryogenic grinding, 2 blades

Cryo kit for cryogenic grinding with dry ice

22.354.0005

Cryo kit, (incl. grinding container, stainless steel with beads, full metal knifewith 2 blades, cryo lid)

Additional items GM 200

05.723.0001

Scraper
