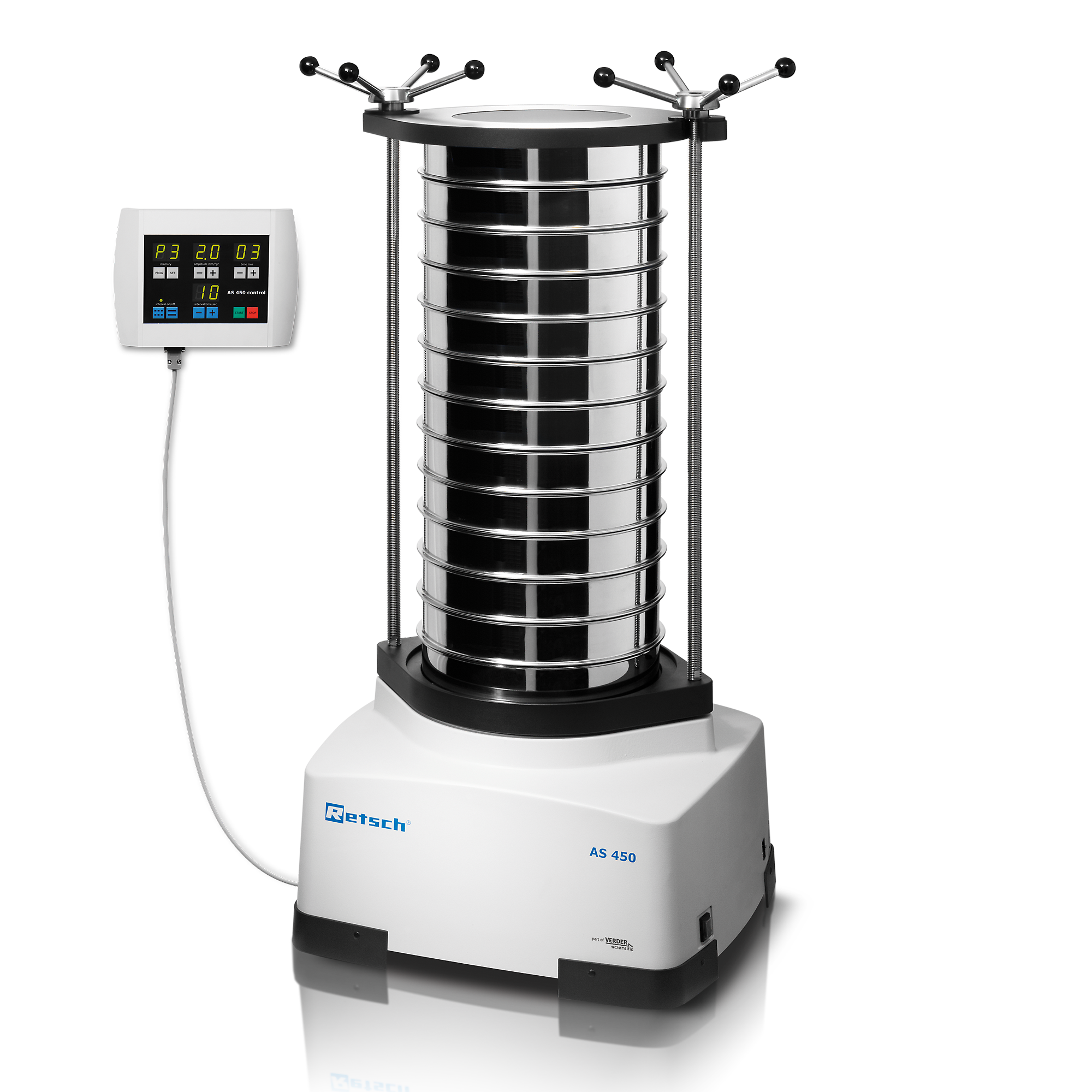

Vibratory Sieve Shakers AS 450

Vibratory Sieve Shakers AS 450 for test sieves up to 450 mm / 18” Ø
(please order clamping device, test sieves and collecting pan separately)

30.026.0001
AS 450 control, 230 V, 50/60 Hz, incl. test report acc. to EN 10204 2.2

other electrical versions available for the same price

Clamping devices AS 450

AS 450 control

32.662.0015

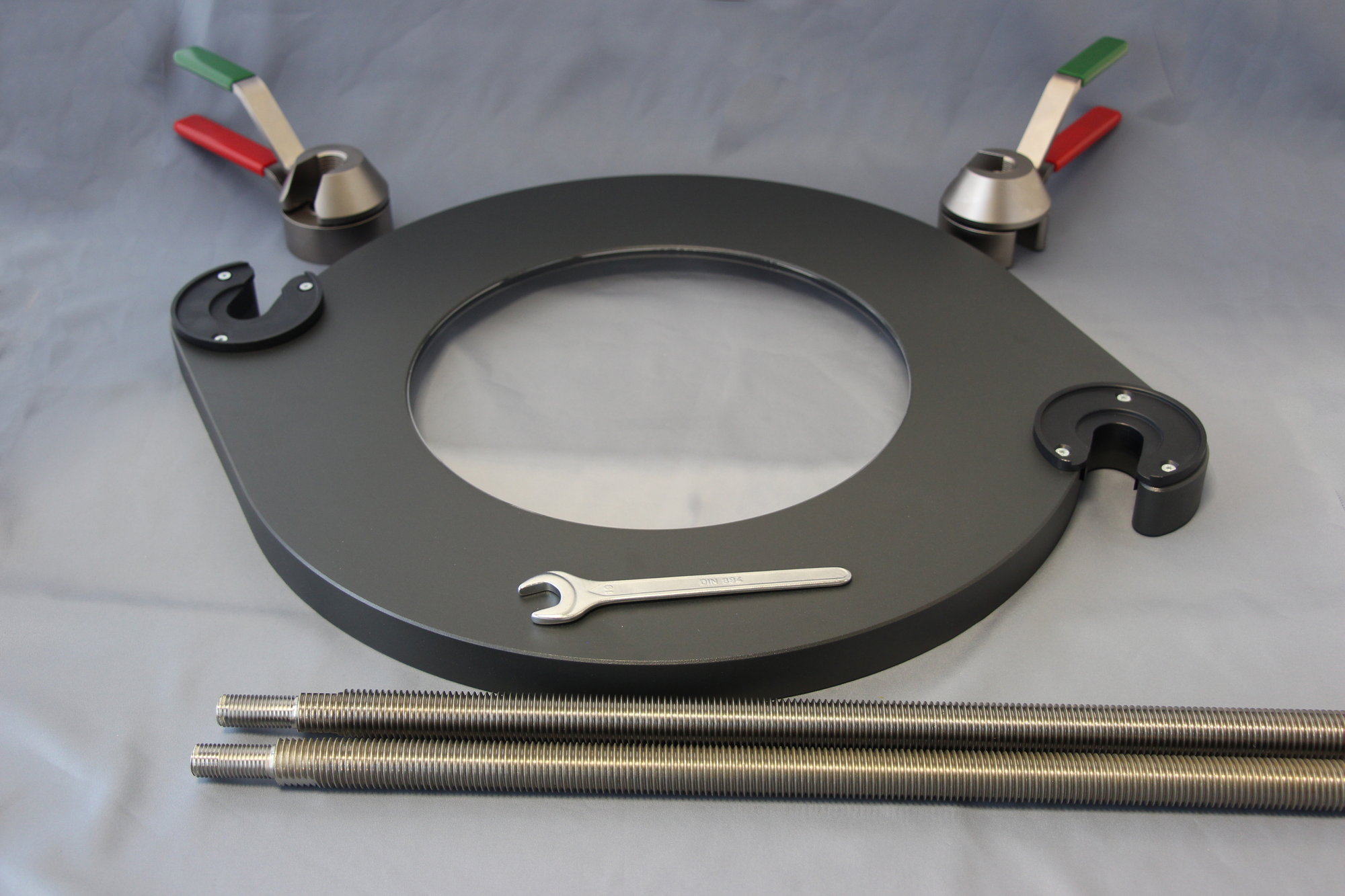

Clamping device “standard”, for test sieves 400/450 mm Ø

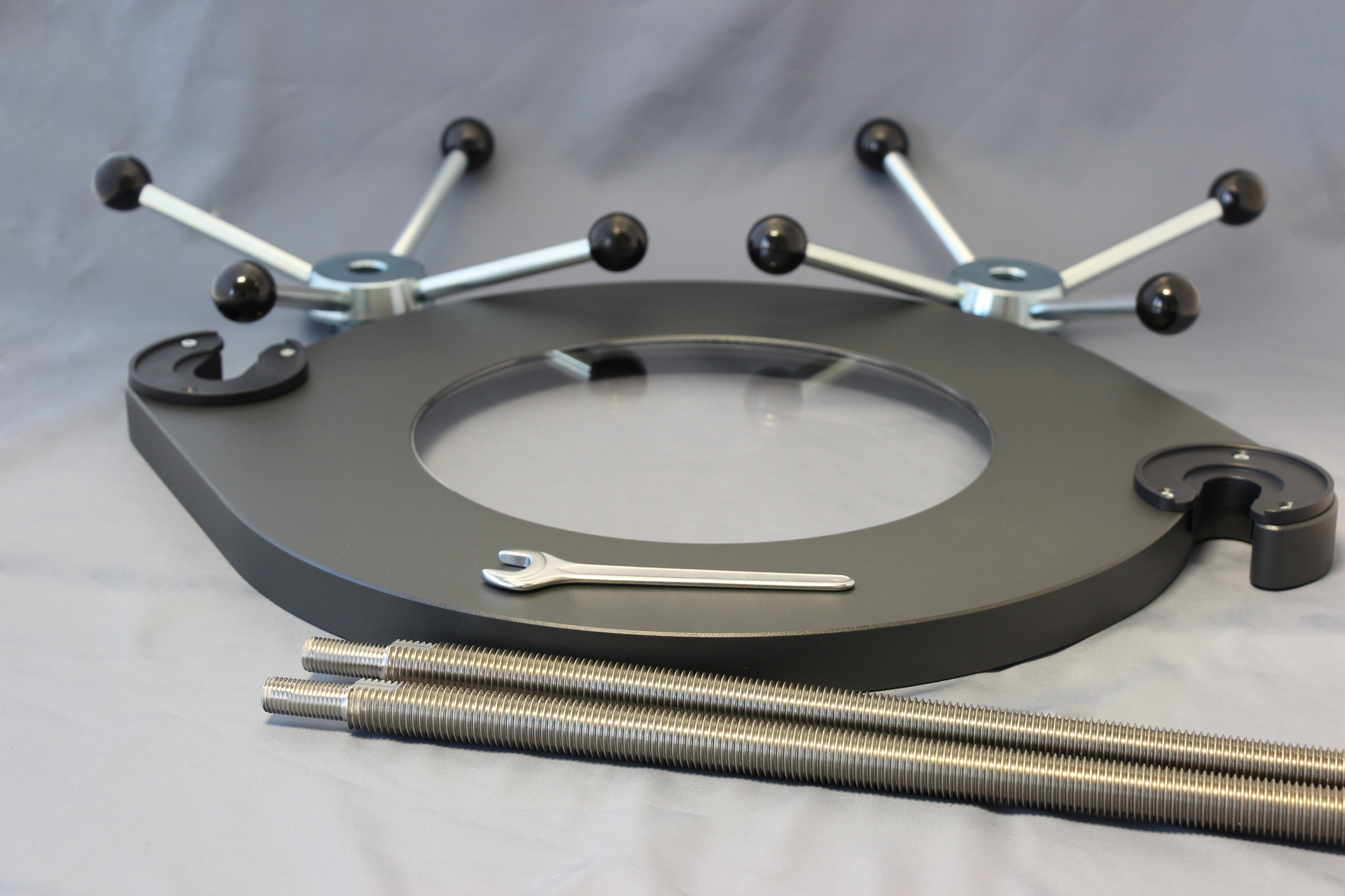

32.662.0016
Clamping device “comfort”, for test sieves 400/450 mm Ø
32.662.0017

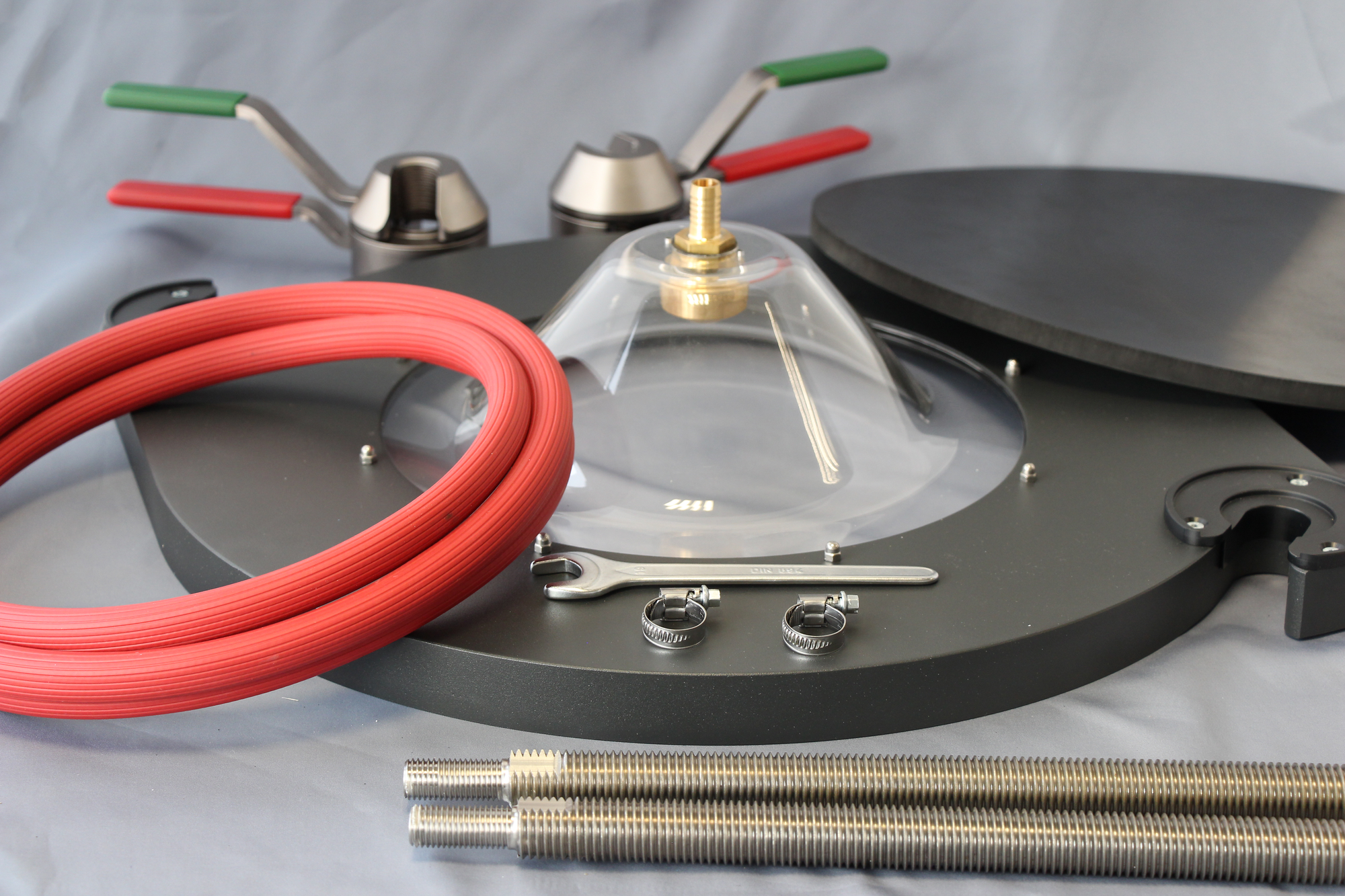

Wet sieving clamping device “standard”, for test sieves 400/450 mm Ø
32.662.0018

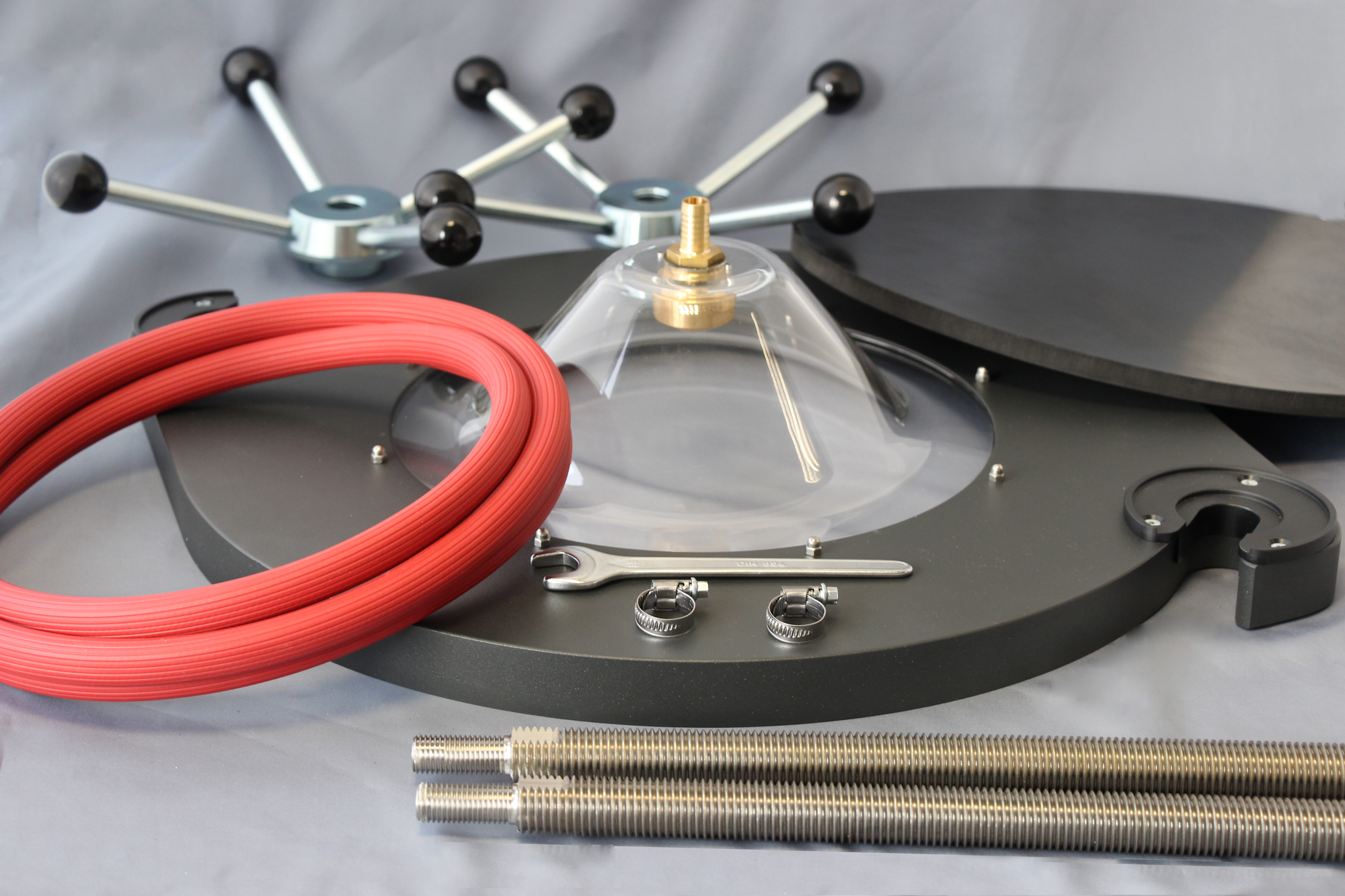

Wet sieving clamping device “comfort”, for test sieves 400/450 mm Ø

Sieve stacks AS 450

60.166.000998
Sieve stack consisting of 10 test sieves (ISO 3310-1), 400 mm Ø, 65 mm height (63 µm, 125 µm, 250 µm, 500 µm, 1 mm, 2 mm, 4 mm, 8 mm, 16 mm, 31.5 mm) and collecting pan
60.168.000999
Sieve stack consisting of 7 test sieves (ISO 3310-1), 450 mm Ø, 100 mm height (63 µm, 125 µm, 250 µm, 500 µm, 1 mm, 2 mm, 4 mm) and collecting pan
60.167.000998
Sieve stack consisting of 10 test sieves (ASTM E11), 400 mm Ø, 65 mm height, (230 mesh, 120 mesh, 60 mesh, 35 mesh, 18 mesh, 10 mesh, 5 mesh, 5/16”, 5/8”, 1.1/4”) and collecting pan
60.169.000999
Sieve stack consisting of 7 test sieves (ASTM E11), 450 mm Ø, 100 mm height
(230 mesh, 120 mesh, 60 mesh, 35 mesh, 18 mesh, 10 mesh, 5 mesh) and collecting pan

Accessories AS 450 control

99.200.0030
IQ/OQ Documentation for AS 450 control

Accessories for clamping devices AS 450

Clamping elements

32.737.0003
Quick-clamping elements, (2 pieces) for clamping device “comfort” AS 450 control
02.654.0011
Clamping elements, (2 pieces) for clamping device “standard” AS 450 control
02.654.0019
Clamping elements, (2 pieces) for clamping device “standard” AS 450 basic

Accessories for test sieves (pans, rings, lids)

For test sieves 400 mm Ø

60.010.000400
Collecting pan, stainless steel, 400 mm Ø, height 65 mm
60.220.000400
Intermediate pan, stainless steel, 400 mm Ø, height 65 mm
60.935.000400
Intermediate ring, stainless steel, 400 mm Ø, height 65 mm
60.107.000400
Sieve lid, stainless steel, 400 mm Ø,
69.440.0070
Collecting pan with outlet, stainless steel, 400 mm Ø, height 70 mm
69.421.000400
Venting ring for wet sieving, stainless steel, 400 mm Ø, height 65 mm
05.114.0048
O-ring for test sieves, , 400 mm Ø,

For test sieves 450 mm Ø

60.010.000450
Collecting pan, stainless steel, 450 mm Ø, height 50 mm
60.220.000450
Intermediate pan, stainless steel, 450 mm Ø, height 100 mm
60.935.000450
Intermediate ring, stainless steel, 450 mm Ø, height 100 mm
69.545.0050
Sieve lid, stainless steel, 450 mm Ø,
69.445.0084
Collecting pan with outlet, stainless steel, 450 mm Ø, height 85 mm
69.421.000450
Venting ring for wet sieving, stainless steel, 450 mm Ø, height 100 mm
05.114.0012
O-ring for test sieves, , 450 mm Ø,

Test Sieves ø 450 mm - 100 mm height - ISO 3310/1 - stainless steel /wire gauze

# mm
# mesh no.
ø
height
standard
60.168.000036
36 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000038
38 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000040
40 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000045
45 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000050
50 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000053
53 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000056
56 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000063
63 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000071
71 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000075
75 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000080
80 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000090
90 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000100
100 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000106
106 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000112
112 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000125
125 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000140
140 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000150
150 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000160
160 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000180
180 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000200
200 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000212
212 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000224
224 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000250
250 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000280
280 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000300
300 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000315
315 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000355
355 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000400
400 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000425
425 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000450
450 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000500
500 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000560
560 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000600
600 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000630
630 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000710
710 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000800
800 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000850
850 µm
-
450 mm
100 mm
ISO 3310/1
60.168.000900
900 µm
-
450 mm
100 mm
ISO 3310/1
60.168.001000
1.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.001120
1.12 mm
-
450 mm
100 mm
ISO 3310/1
60.168.001180
1.18 mm
-
450 mm
100 mm
ISO 3310/1
60.168.001250
1.25 mm
-
450 mm
100 mm
ISO 3310/1
60.168.001400
1.40 mm
-
450 mm
100 mm
ISO 3310/1
60.168.001600
1.60 mm
-
450 mm
100 mm
ISO 3310/1
60.168.001700
1.70 mm
-
450 mm
100 mm
ISO 3310/1
60.168.001800
1.80 mm
-
450 mm
100 mm
ISO 3310/1
60.168.002000
2.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.002240
2.24 mm
-
450 mm
100 mm
ISO 3310/1
60.168.002360
2.36 mm
-
450 mm
100 mm
ISO 3310/1
60.168.002500
2.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.002800
2.80 mm
-
450 mm
100 mm
ISO 3310/1
60.168.003150
3.15 mm
-
450 mm
100 mm
ISO 3310/1
60.168.003350
3.35 mm
-
450 mm
100 mm
ISO 3310/1
60.168.003550
3.55 mm
-
450 mm
100 mm
ISO 3310/1
60.168.004000
4.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.004500
4.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.004750
4.75 mm
-
450 mm
100 mm
ISO 3310/1
60.168.005000
5.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.005600
5.60 mm
-
450 mm
100 mm
ISO 3310/1
60.168.006300
6.30 mm
-
450 mm
100 mm
ISO 3310/1
60.168.006700
6.70 mm
-
450 mm
100 mm
ISO 3310/1
60.168.007100
7.10 mm
-
450 mm
100 mm
ISO 3310/1
60.168.008000
8.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.009000
9.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.009500
9.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.010000
10.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.011200
11.20 mm
-
450 mm
100 mm
ISO 3310/1
60.168.012500
12.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.013200
13.20 mm
-
450 mm
100 mm
ISO 3310/1
60.168.014000
14.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.016000
16.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.018000
18.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.019000
19.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.020000
20.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.022400
22.40 mm
-
450 mm
100 mm
ISO 3310/1
60.168.025000
25.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.026500
26.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.028000
28.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.031500
31.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.035500
35.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.037500
37.50 mm
-
450 mm
100 mm
ISO 3310/1
60.168.040000
40.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.045000
45.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.050000
50.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.053000
53.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.056000
56.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.063000
63.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.071000
71.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.075000
75.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.080000
80.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.090000
90.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.100000
100.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.106000
106.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.112000
112.00 mm
-
450 mm
100 mm
ISO 3310/1
60.168.125000
125.00 mm
-
450 mm
100 mm
ISO 3310/1
