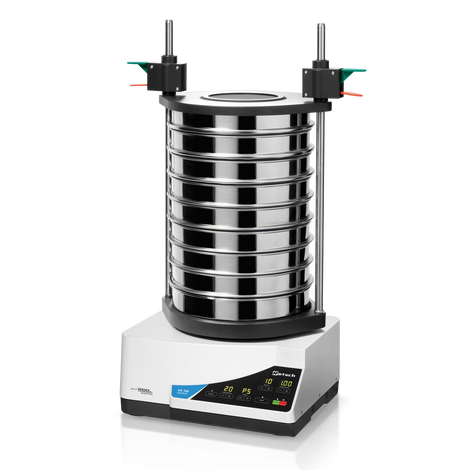

The AS 300 model has all the benefits of the AS 200 control but is designed for test sieves with a diameter up to 315 mm, providing a sieve surface which is approximately 2.5 times larger. Therefore, the AS 300 is able to separate up to 6 kg of material in one working run. Repetitive operations are greatly simplified with the possibility to store up to 99 standard operating procedures (SOP). For perfectly reproducible sieving results, the AS 300 control can be programmed with sieve acceleration independent of the power frequency instead of vibration height.
The microprocessor-controlled measuring device monitors and automatically readjusts the vibration height. All sieving parameters are set, displayed and monitored digitally. The AS 300 control can be calibrated, and is thus suitable for test materials monitoring. Like all instruments of the “control” series, the AS 300 has an integrated interface for using the evaluation software EasySieve® to control, set and visualize all parameters, including complete documentation of the sieving process
Accuracy & Efficiency
- Sieving with 3-D effect
- For sieves up to (Ø) 315 mm
- Suitable for dry and wet sieving
- Measuring range 20 μm to 40 mm
- Memory for 99 Standard Operating Procedures (SOPs)
- Digital setting and control of sieving parameters
- Sieve acceleration independent of power frequency
- Reproducible and globally comparable sieving results
- Short sieving times due to large sieve surface and effective movement
- Test materials monitoring according to DIN EN ISO 9001

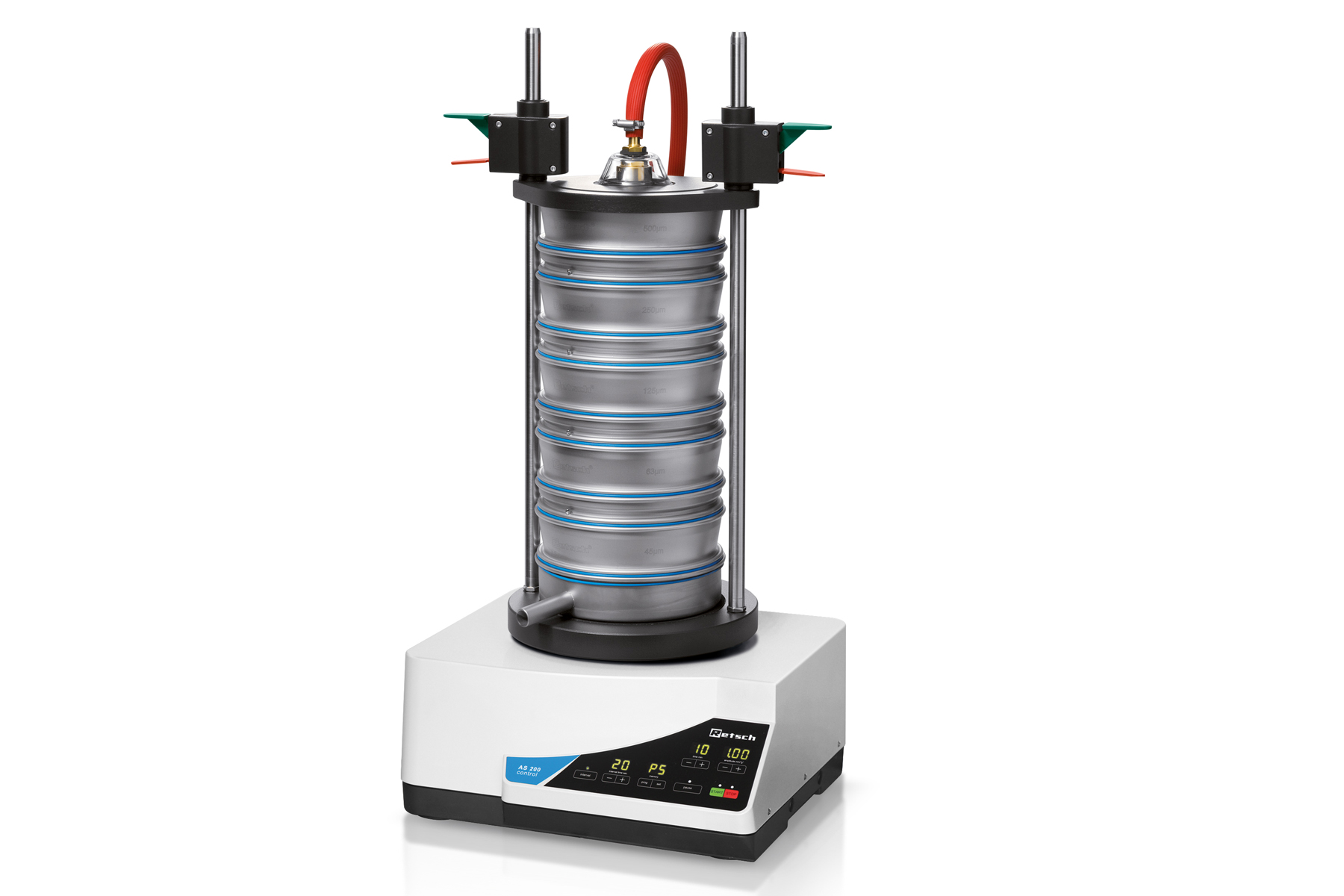

Vibratory Sieve Shaker AS 300 control Wet sieving with Vibratory Sieve Shakers
There are many applications for which wet sieving is the best solution, e.g. when the material to be tested is a suspension or when a very fine sample (< 45 μm) that tends to agglomerate needs to be sieved. All vibratory sieve shakers from RETSCH can be used for wet sieving. There are special accessories like clamping lids with spray nozzle and collecting pans with outlet available. By placing RETSCH’s venting rings between the sieves, air cushions can expand without letting liquid or sample material escape.
Vibratory Sieve Shaker AS 300 control Accessories & Options
The sieve shakers of the control series can be equipped with a variety of accessories to provide for a wealth of application requirements.

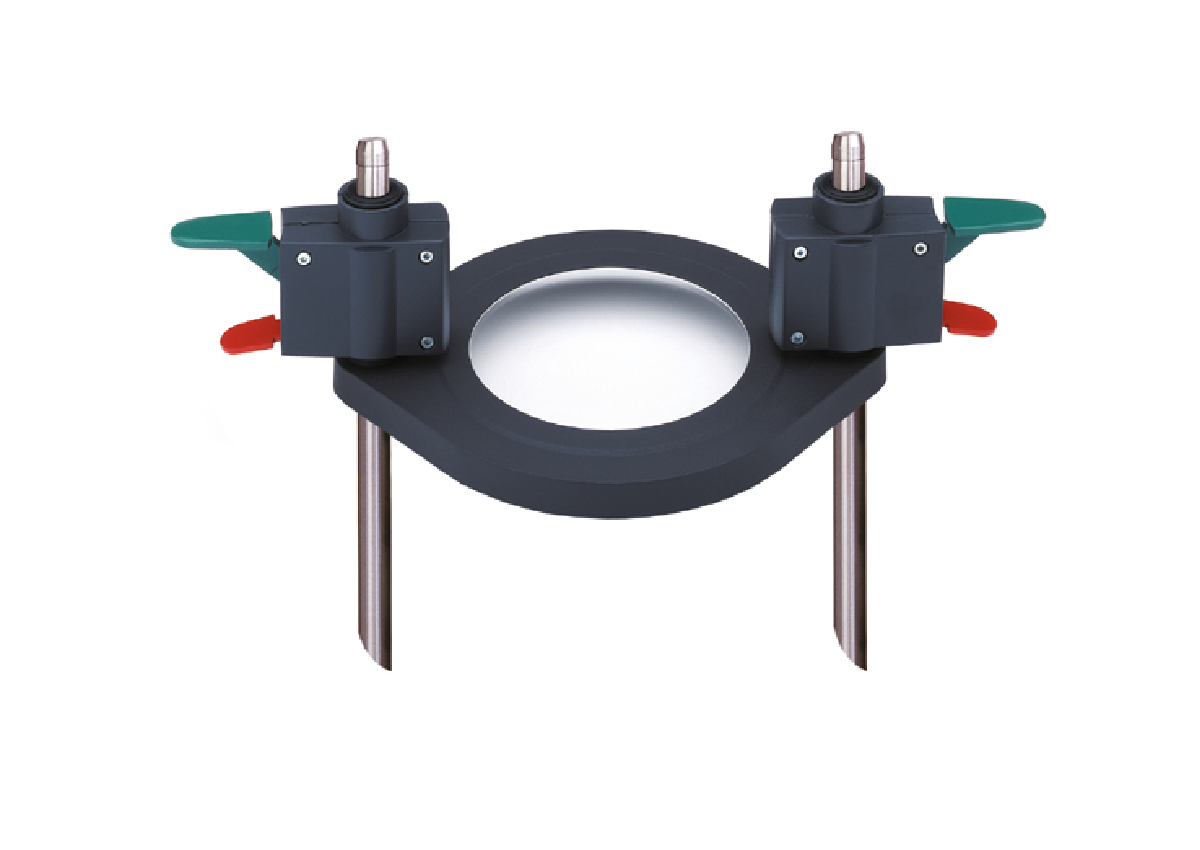

- Clamping units
With the RETSCH clamping devices the sieves are clamped safely, quickly and conveniently on the sieve shaker. The clamping devices “comfort” are particularly user-friendly and timesaving.
- IQ/OQ Documents
We provide IQ/OQ documentation for the „control“ sieve shakers to support IQ/OQ certification by our customers.
- Accessories for test sieves
Collecting pans, intermediate pans, intermediate rings and sieve lids.
- Sample DividersMeaningful results can only be obtained if the sample represents the original material. Sample dividers produce representative part samples, thus ensuring reproducibility of the analysis.
- Accessories for wet sieving
Clamping lid with nozzle, collecting pans with outlet, venting rings.
- Ultrasonic baths and dryers
Suitable for thorough cleaning of test sieves and for quick, gentle drying of samples and sieves.
- Sieving Aids
Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).
RETSCH test sieves and accessories - Engineered for superior performance
EasySieve / EasySieve CFR Evaluation Software
EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11-conform version.
Vibratory Sieve Shaker AS 300 control Typical Sample Materials
RETSCH's vibratory sieve shakers are ideally suited for separation, fractioning and particle size determination of cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils and washing powder.
fertilizers
soil
cereals
construction materials
To find the best solution for your sample preparation task, visit our application database.
Vibratory Sieve Shaker AS 300 control Functional Principle
Each vibratory sieve shaker of the series AS 200 is equipped with an electromagnetic drive that is patented by RETSCH (EP 0642844). This drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface.
The advantage: high stress capacity, extremely smooth operation and short sieving times with high separation efficiency.
Vibratory Sieve Shaker AS 300 control Technical Data
| Applications | separation, fractioning, particle size determination |
|---|---|
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | powders, bulk materials, suspensions |
| Measuring range | 20 µm - 40 mm |
| Sieving motion | throwing motion with angular momentum |
| Max. batch / feed capacity | 6 kg |
| Max. number of fractions | 11 / 17 |
| Max. mass of sieve stack | 10 kg |
| Amplitude | digital, 0.20 - > 2.20 mm |
| Controlled amplitude | yes |
| Sieve acceleration | 1.0 - > 10.0 g |
| Time display | digital, 1 - 99 min |
| Interval operation | 1 - 99 s |
| Storable SOPs | 99 |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | yes |
| Serial interface | yes |
| Including test certificate / can be calibrated | yes |
| Suitable sieve diameters | 100 mm / 200 mm / 203 mm (8") / 305 mm / 315 mm |
| Max. height of sieve stack | 510 mm |
| Clamping devices | standard, "comfort", each for wet and dry sieving |
| Protection code | IP 21 |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| W x H x D | 417 x 220 x 384 mm |
| Net weight | ~ 42 kg |
| Standards | CE |
