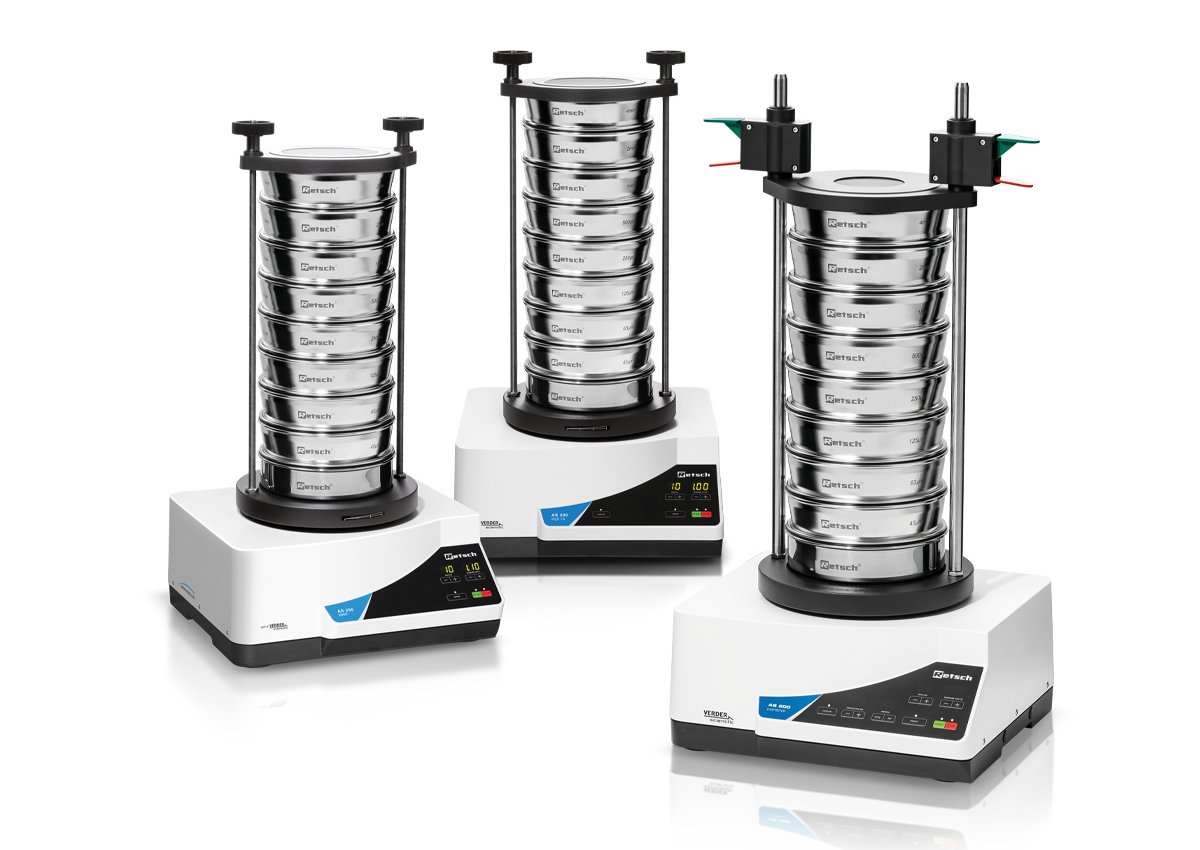

The vibratory sieve shakers of the series AS 200 are used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring. The controllable electromagnetic drive offers an optimal adaption for every product. Sharp fractions are obtained even after short sieving times.

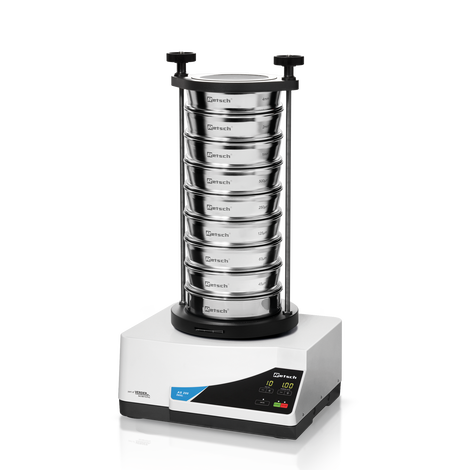

The AS 200 basic sieve shaker is the economical alternative of the series with familiar RETSCH quality and reliability. It features digital setting and display of performance and time.
Accuracy & Efficiency

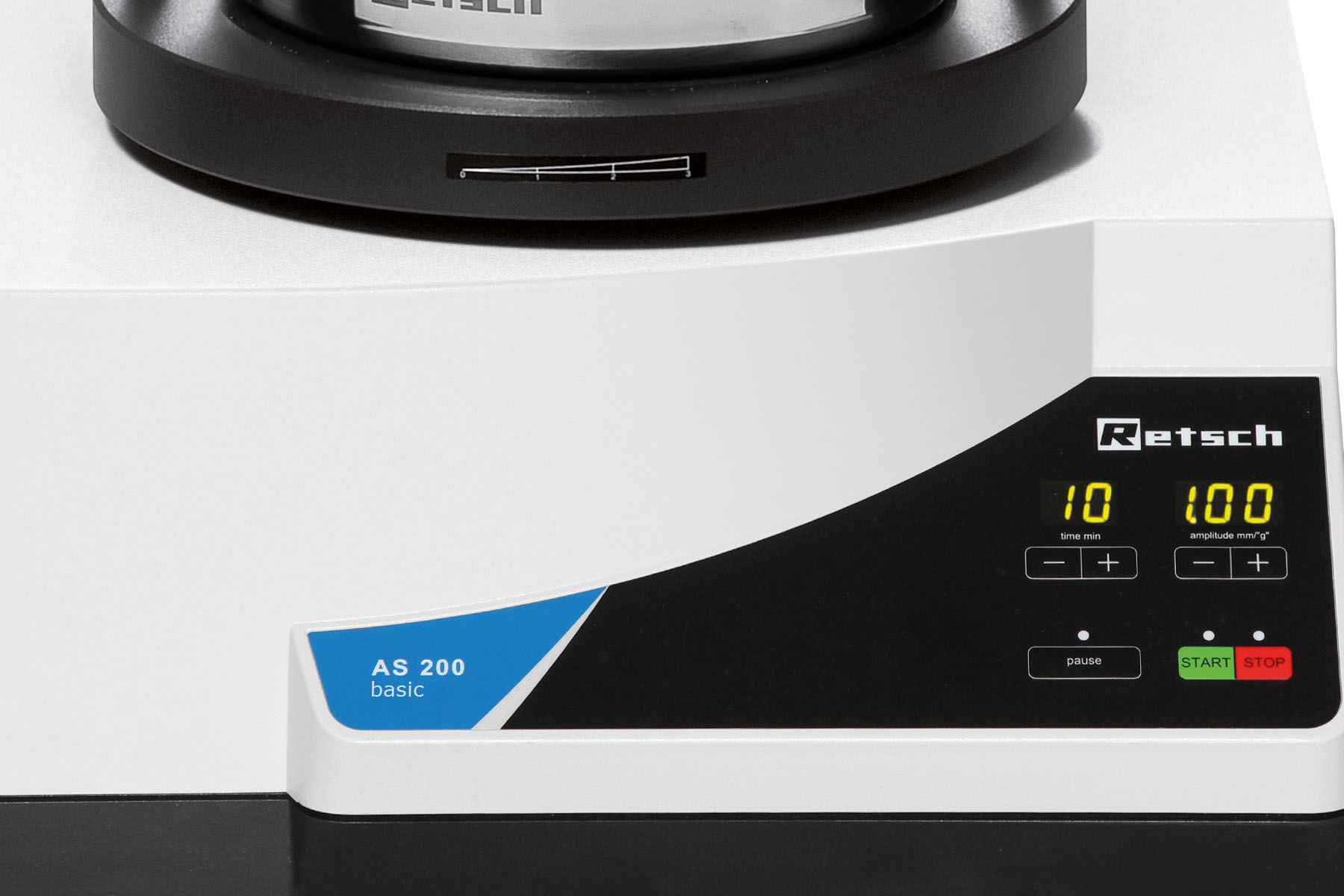

- NEW: digital display of performance and time
- suitable for dry and wet sieving
- excellent separation efficiency even with short sieving times
- efficient electromagnetic drive
- 3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
- sieve stack up to 510 mm height
- free adjustment of all process parameters (time, performance)
- optional comfort clamping device
- optional evaluation software EasySieve
- maintenance-free
- easy operation, ergonomic design

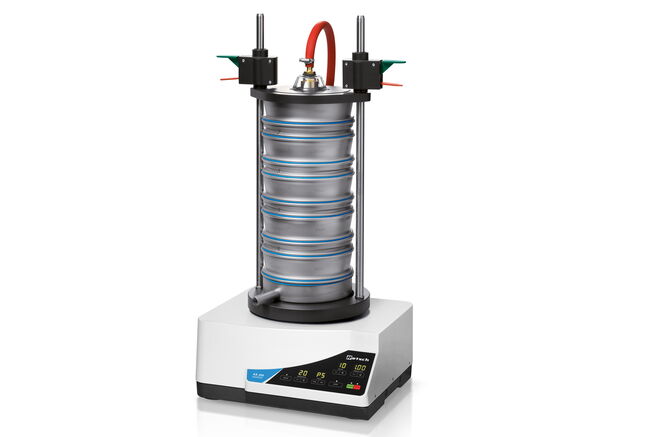

Wet sieving with Vibratory Sieve Shakers
There are many applications for which wet sieving is the best solution, e.g. when the material to be tested is a suspension or when a very fine sample (< 45 μm) that tends to agglomerate needs to be sieved. All vibratory sieve shakers from RETSCH can be used for wet sieving. There are special accessories like clamping lids with spray nozzle and collecting pans with outlet available. By placing RETSCH’s venting rings between the sieves, air cushions can expand without letting liquid or sample material escape.
Vibratory Sieve Shaker AS 200 basic Accessories & Options
RETSCH sieve shakers can be equipped with a variety of accessories to meet a wide range of application requirements.

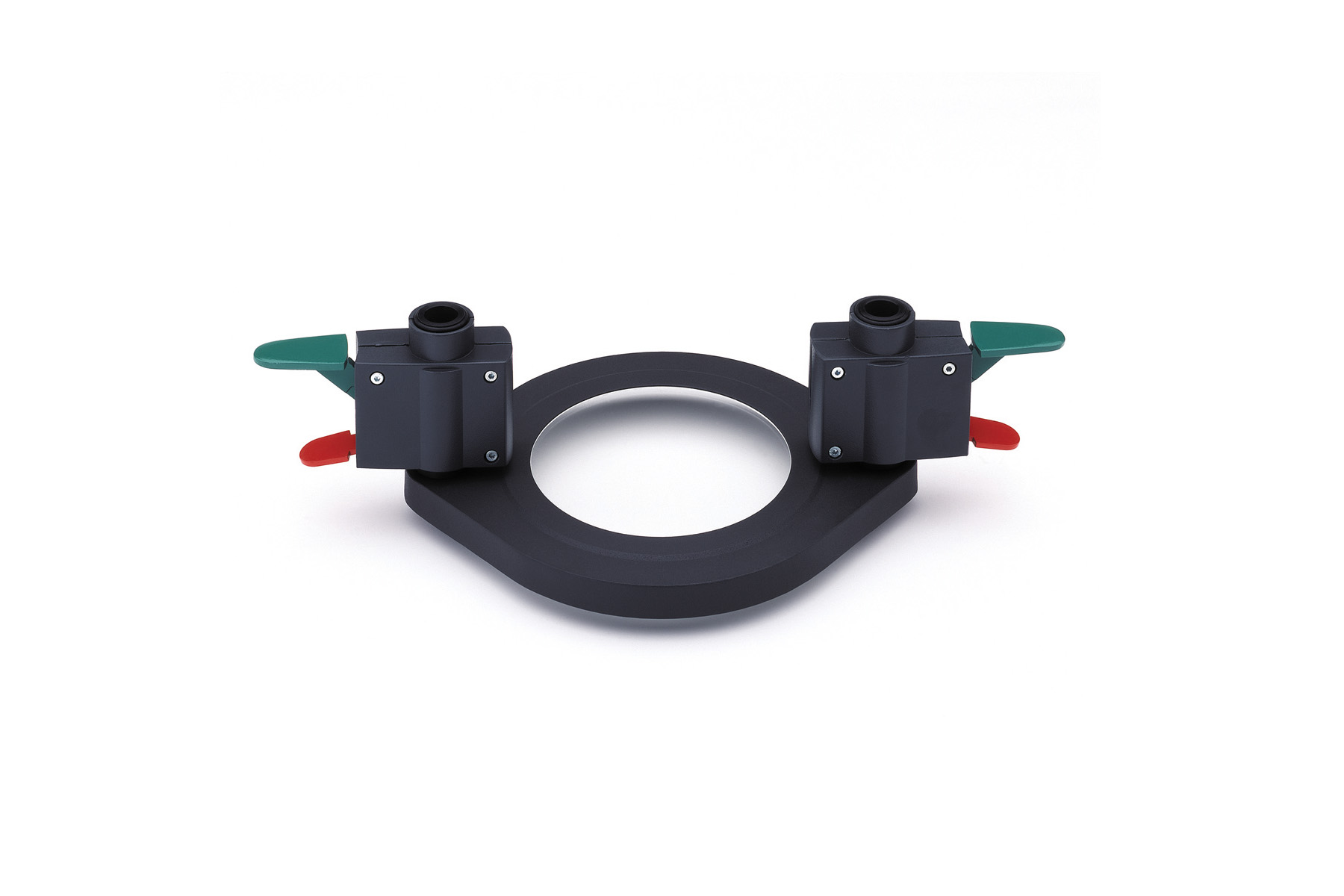

- Clamping units
With the RETSCH clamping devices the sieves are clamped safely, quickly and conveniently on the sieve shaker. The clamping devices “comfort” are particularly user-friendly and timesaving.

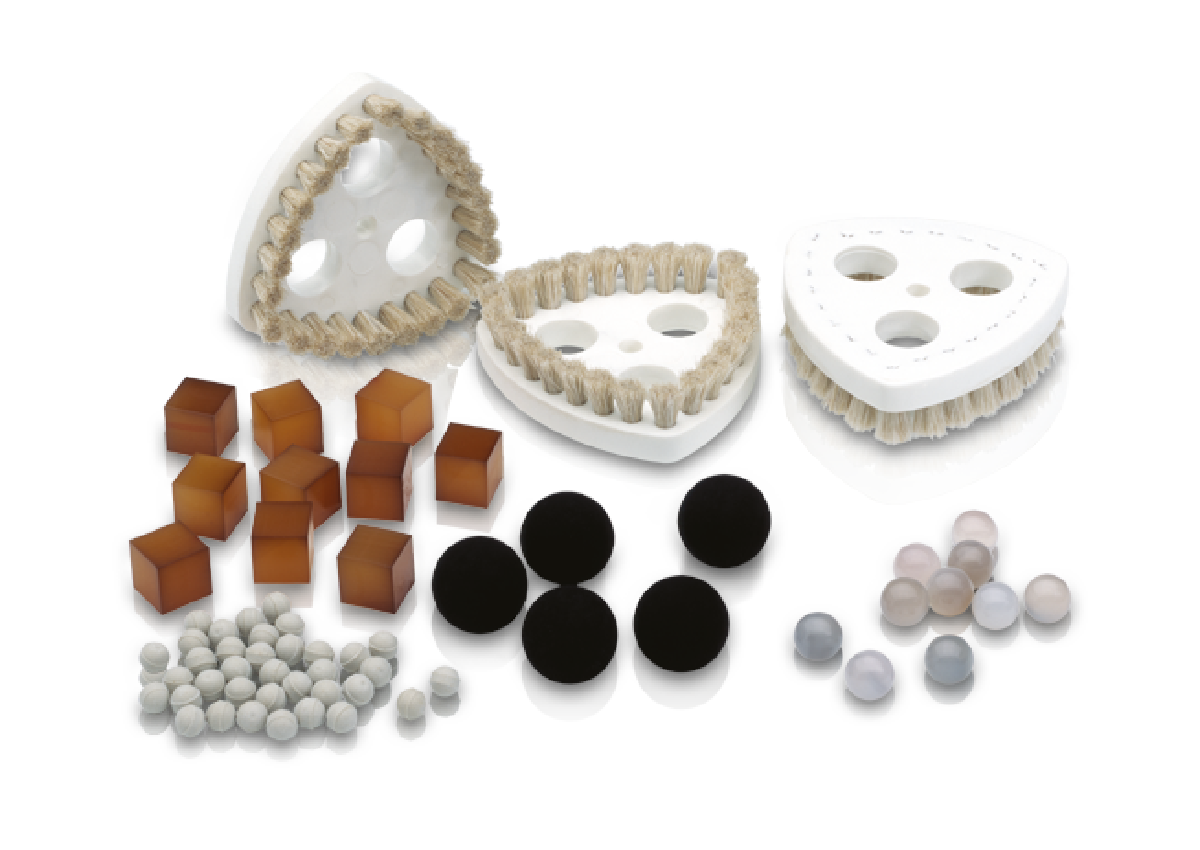

- Sieving Aids
Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).

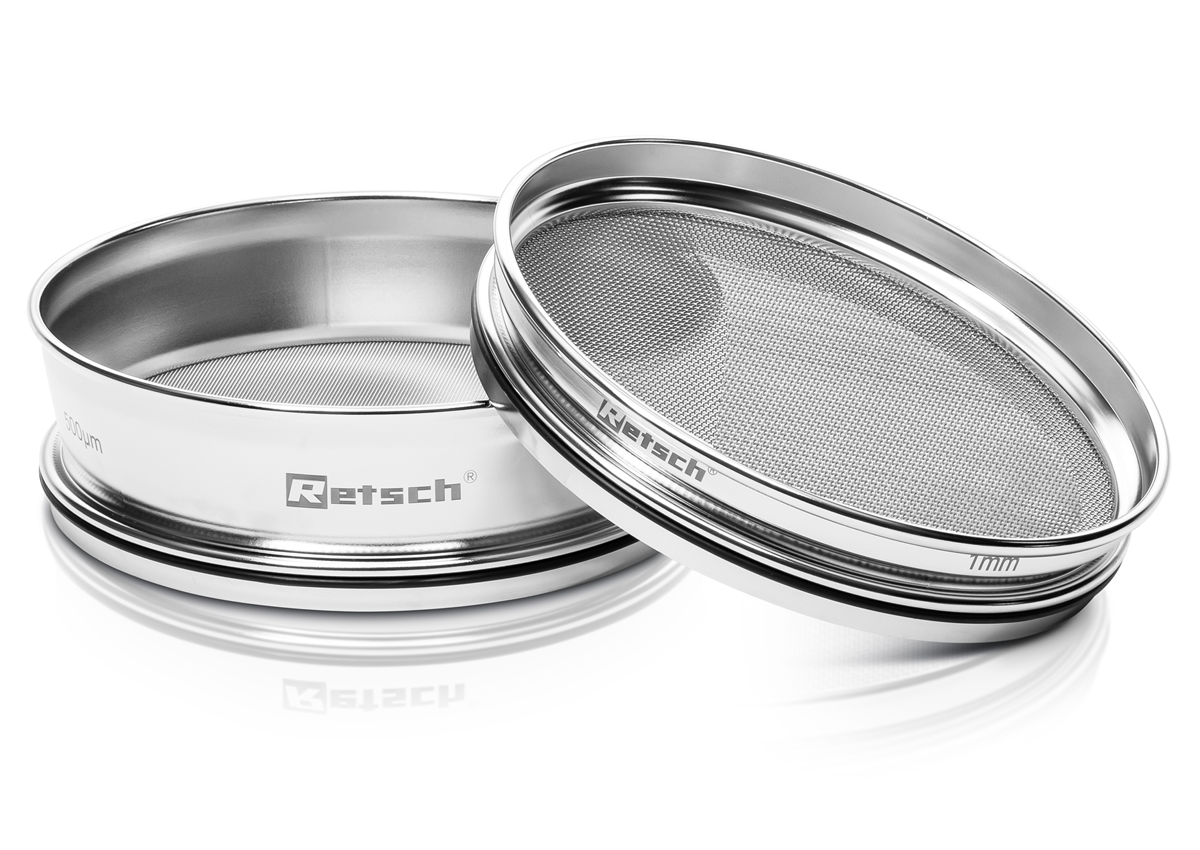

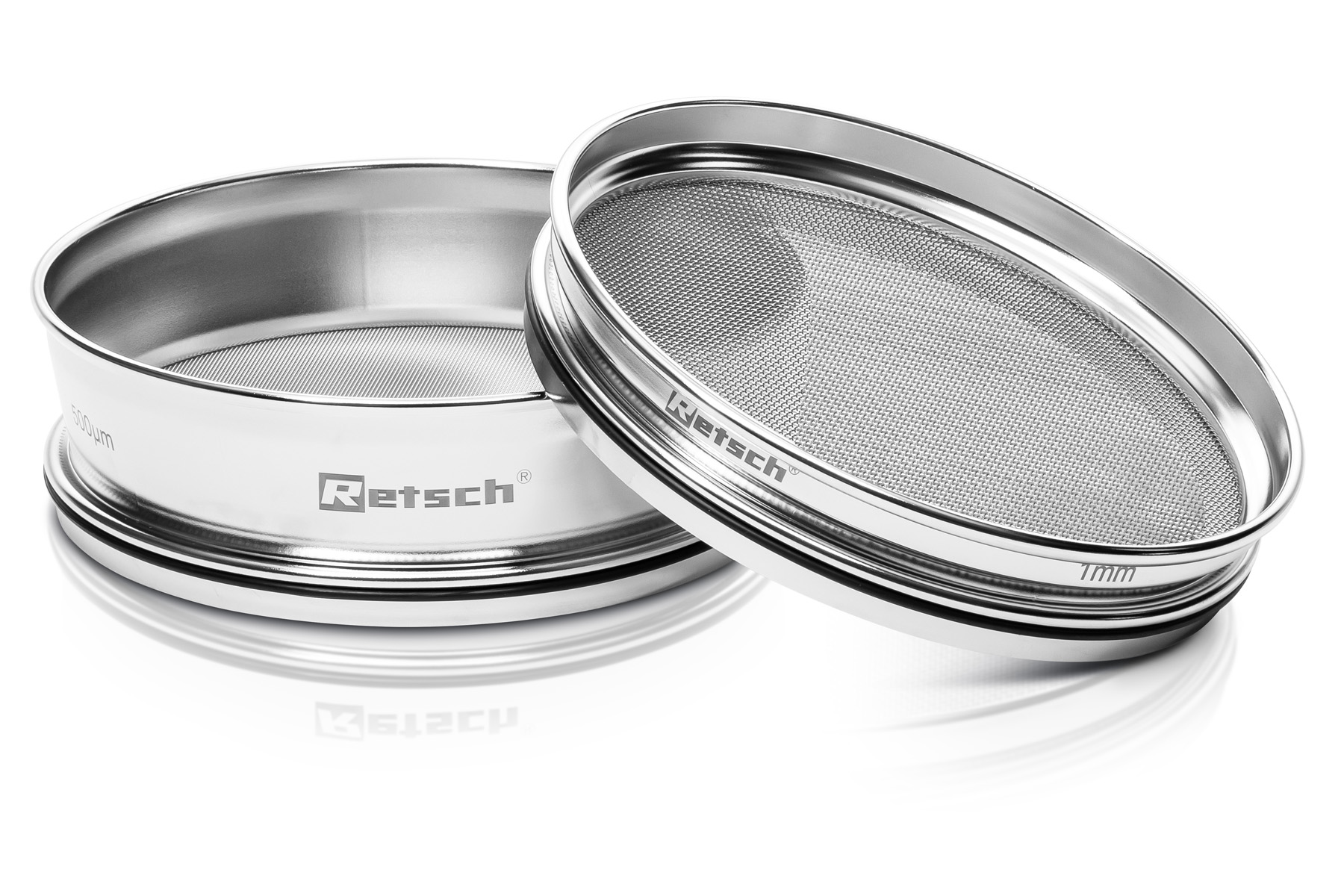

- Accessories for test sieves
Collecting pans, intermediate pans, intermediate rings and sieve lids.

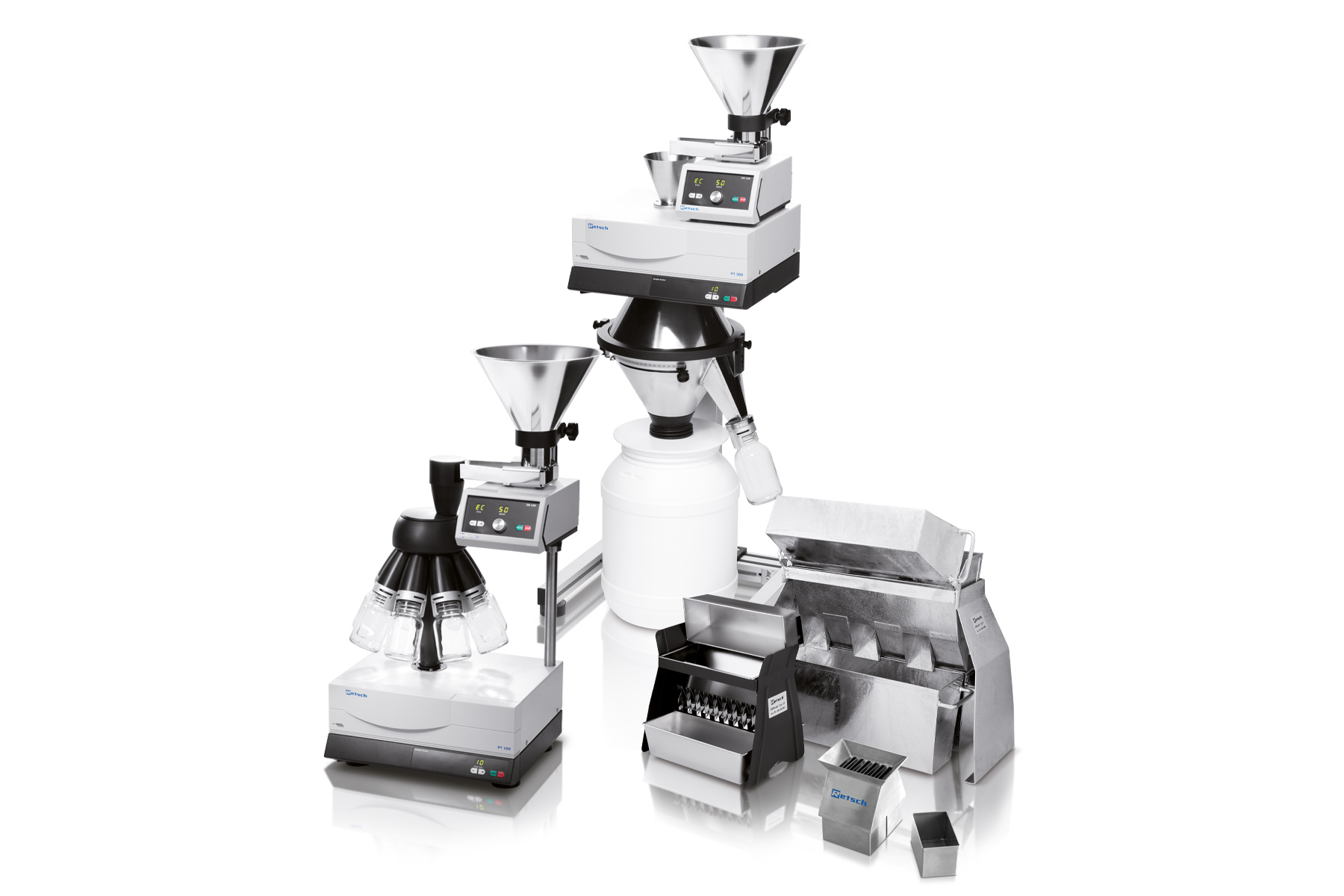

- Sample DividersMeaningful results can only be obtained if the sample represents the original material. Sample dividers produce representative part samples, thus ensuring reproducibility of the analysis.
- Accessories for wet sieving
Clamping lid with nozzle, collecting pans with outlet, venting rings.

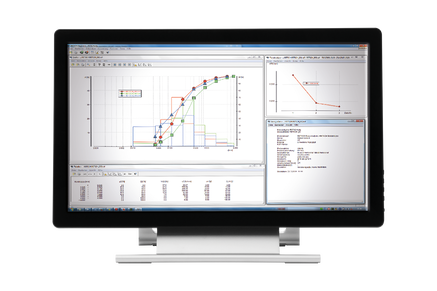

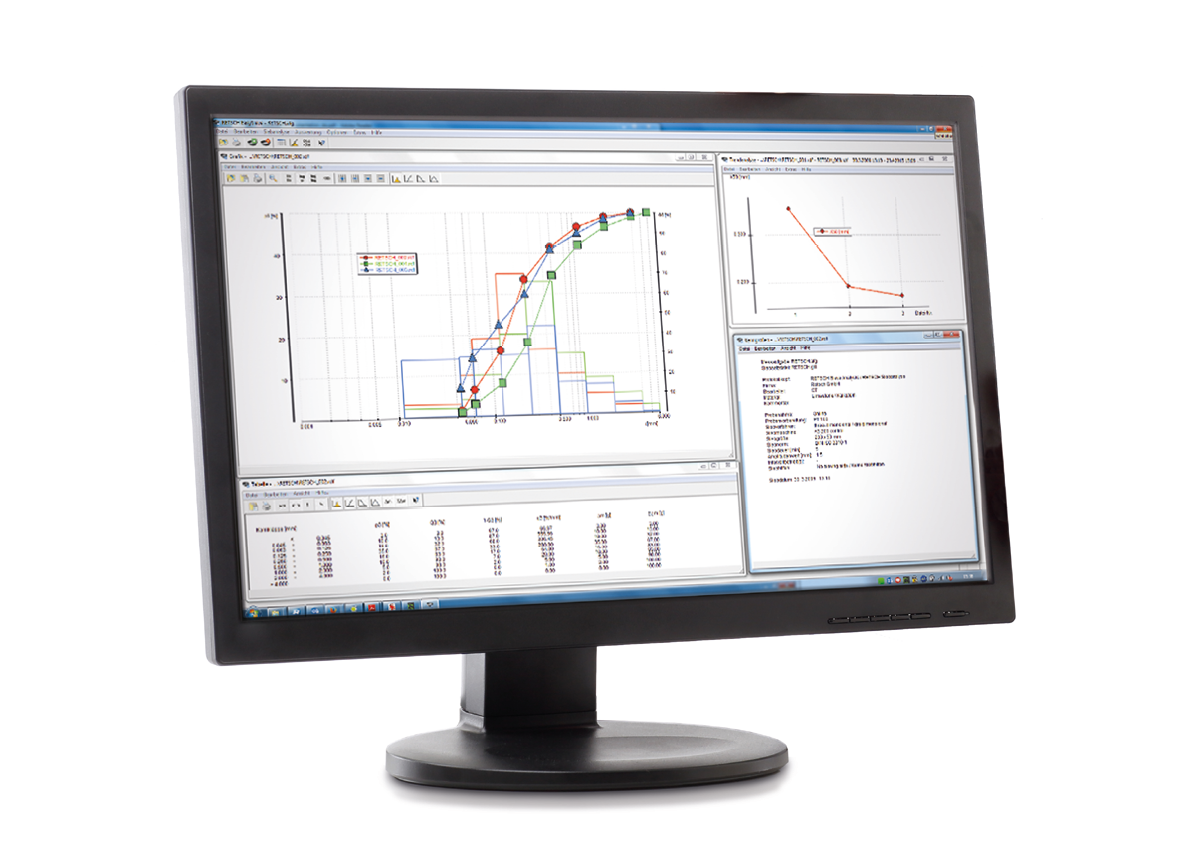

EasySieve / EasySieve CFR Evaluation Software
EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11-conform version.
Vibratory Sieve Shaker AS 200 basic Typical Applications
RETSCH's vibratory sieve shakers are ideally suited for separation, fractioning and particle size determination of cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils and washing powder.
fertilizers
soil
cereals
construction materials
To find the best solution for your sample preparation task, visit our application database.
Vibratory Sieve Shaker AS 200 basic Functional Principle
Each vibratory sieve shaker of the series AS 200 is equipped with an electromagnetic drive that is patented by RETSCH (EP 0642844). This drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface.
The advantage: high stress capacity, extremely smooth operation and short sieving times with high separation efficiency.
Vibratory Sieve Shaker AS 200 basic Technical Data
| Applications | separation, fractioning, particle size determination |
|---|---|
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | powders, bulk materials, suspensions |
| Measuring range | 20 µm - 25 mm |
| Sieving motion | throwing motion with angular momentum |
| Max. batch / feed capacity | 3 kg |
| Max. number of fractions | 9 / 17 |
| Max. mass of sieve stack | 4 kg |
| Amplitude | digital, 1 - 100% (0 - 3 mm) |
| Controlled amplitude | - |
| Time display | digital, 1 - 99 min |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | yes |
| USB interface | - |
| Including test certificate / can be calibrated | - |
| Suitable sieve diameters | 100 mm / 200 mm / 203 mm (8") |
| Max. height of sieve stack | 510 mm |
| Clamping devices | standard, "comfort", each for wet and dry sieving |
| Protection code | IP 21 |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| W x H x D | 417 x 212 x 384 mm |
| Net weight | ~ 35 kg |
| Standards | CE |
