Rotor Beater Mill SR 300
Rotor Beater Mill SR 300 with rotor, 240 mm filter hose and collecting receptacle (please order retaining frame, sieves and optional base frame separately)
20.752.0001
SR 300
200–240 V, 50/60 Hz, incl. standard rotor
20.752.0002
SR 300
200–240 V, 50/60 Hz, incl. distance rotor
22.824.0007
Base frame with wheels
Retaining frames and ring sieves for SR 300
Available retaining frames:
- Retaining frame 360°:
For soft, medium-hard or fibrous sample materials we recommend the use of the retaining frame 360° as shearing is the most suitable size reduction principle.
- Retaining frame 180°:
Medium-hard, hard (up to Mohs hardness 4), and brittle samples are best pulverized by using the retaining frame 180° with grinding insert for sieves 180° as impact and shearing are the most suitable size reduction principles.
Retaining frame 360° of stainless steel
22.642.0004
Retaining frame 360°
Ring sieves 360° of stainless steel
02.407.0057
Trapezoid holes
0.08 mm
02.407.0026
Trapezoid holes
0.12 mm
02.407.0028
Trapezoid holes
0.20 mm
02.407.0029
Trapezoid holes
0.25 mm
02.407.0120
Trapezoid holes
0.35 mm
02.407.0030
Trapezoid holes
0.50 mm
02.407.0031
Trapezoid holes
0.75 mm
02.407.0032
Trapezoid holes
1.00 mm
02.407.0058
Trapezoid holes
1.25 mm
02.407.0033
Trapezoid holes
1.50 mm
02.407.0034
Trapezoid holes
2.00 mm
02.407.0035
Round holes
3.00 mm
02.407.0036
Round holes
4.00 mm
02.407.0037
Round holes
5.00 mm
02.407.0043
Round holes
6.00 mm
02.407.0039
Round holes
8.00 mm
for pre-grinding
02.407.0040
Round holes
10.00 mm
Retaining frame 180° of stainless steel
02.143.0066
Retaining frame with grinding insert for sieves 180°

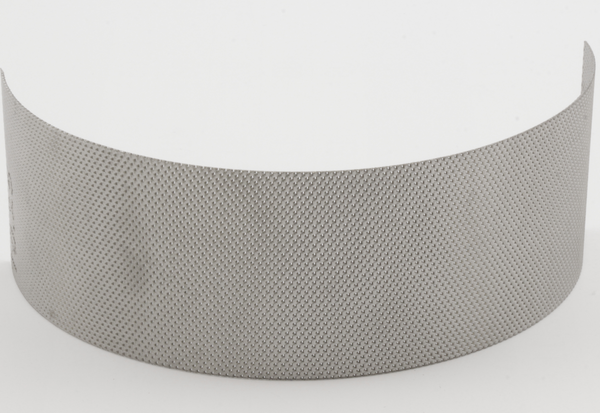

Sieves 180° of stainless steel
03.647.0081
Trapezoid holes
0.08 mm
03.647.0039
Trapezoid holes
0.12 mm
03.647.0040
Trapezoid holes
0.20 mm
03.647.0041
Trapezoid holes
0.25 mm
03.647.0395
Trapezoid holes
0.35 mm
03.647.0042
Trapezoid holes
0.50 mm
03.647.0043
Trapezoid holes
0.75 mm
03.647.0044
Trapezoid holes
1.00 mm
03.647.0045
Trapezoid holes
1.25 mm
03.647.0046
Trapezoid holes
1.50 mm
03.647.0047
Trapezoid holes
2.00 mm
03.647.0048
Round holes
3.00 mm
03.647.0049
Round holes
4.00 mm
03.647.0050
Round holes
5.00 mm
03.647.0051
Round holes
6.00 mm
03.647.0052
Round holes
8.00 mm
03.647.0053
Round holes
10.00 mm
for pre-grinding
Accessories SR 300
Cyclone-suction-combination for SR 300
The cyclone-suction combination is recommended for the homogenization of low density materials as the air jet which is generated improves discharge of the sample from the grinding chamber.
Moreover, the sample is cooled which is particularly beneficial for heat-sensitive materials.
22.935.0020
Cyclone unit incl. 5 litres collection receptacle (to be used with industrial vacuum cleaner)
22.935.0039
Cyclone unit incl. 30 litres collection receptacle (to be used with industrial vacuum cleaner). Requires 02.183.0157 cyclone outlet.
22.935.0043
High-performance cyclone unit incl. 30 litres collection receptacle (to be used with industrial vacuum cleaner). Requires 02.183.0157 cyclone outlet.
02.183.0157
Cyclone outlet for SR 300
22.748.0005
Industrial vacuum cleaner for mills, 230 V, 50/60 Hz (other electrical versions and spare filter bags available upon request)
Additional items SR 300
Rotor Types:
- Standard rotor:
Due to the small grinding gap it generates particularly strong shearing forces which is beneficial for pulverizing, e. g. fibrous materials.
- Distance rotor:
For heat-sensitive, slightly fatty samplesr. The larger grinding gap ensures reduction of frictional heat, thus preventing blocking of the sieves or the rotor.
22.717.0007
Distance rotor of stainless steel
22.717.0006
Standard rotor of stainless steel
03.010.0052
Sieve cassette, stainless steel
22.187.0008
Ring-type filter for collecting receptacle 5 litres
22.748.0001
Dust filter clamping rings for ring-type filter, incl. 5 dust filters
22.524.0002
Dust filters for ring-type filter, 25 pcs.
02.011.0038
Collecting receptacle, 5 litres, stainless steel
02.187.0020
Filter hose for collecting receptacle 5 litres, length 240 mm, incl. “comfort” flange
02.186.0037
Spare filter hose for 02.187.0020
05.045.0528
Collecting receptacle, 30 litres
99.200.0024
IQ/OQ Documentation for SR 300
Vibratory Feeder DR 100 for SR 300
DR 100 drive unit (please order feeding kit separately)
70.938.0001
DR 100 drive unit
220–240 V, 50 Hz
70.938.0003
DR 100 drive unit
220–240 V, 60 Hz
70.938.0010
DR 100 drive unit
200 V, 50 Hz
70.938.0006
DR 100 drive unit
200 V, 60 Hz
72.020.0019
Feeding kit DR 100/3.5 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres and holder for hopper and fixture
72.020.0020
Feeding kit DR 100/22 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres and holder for hopper and fixture
