Planetary Ball Mill PM 100
(please order grinding jars and balls separately)
20.540.0001

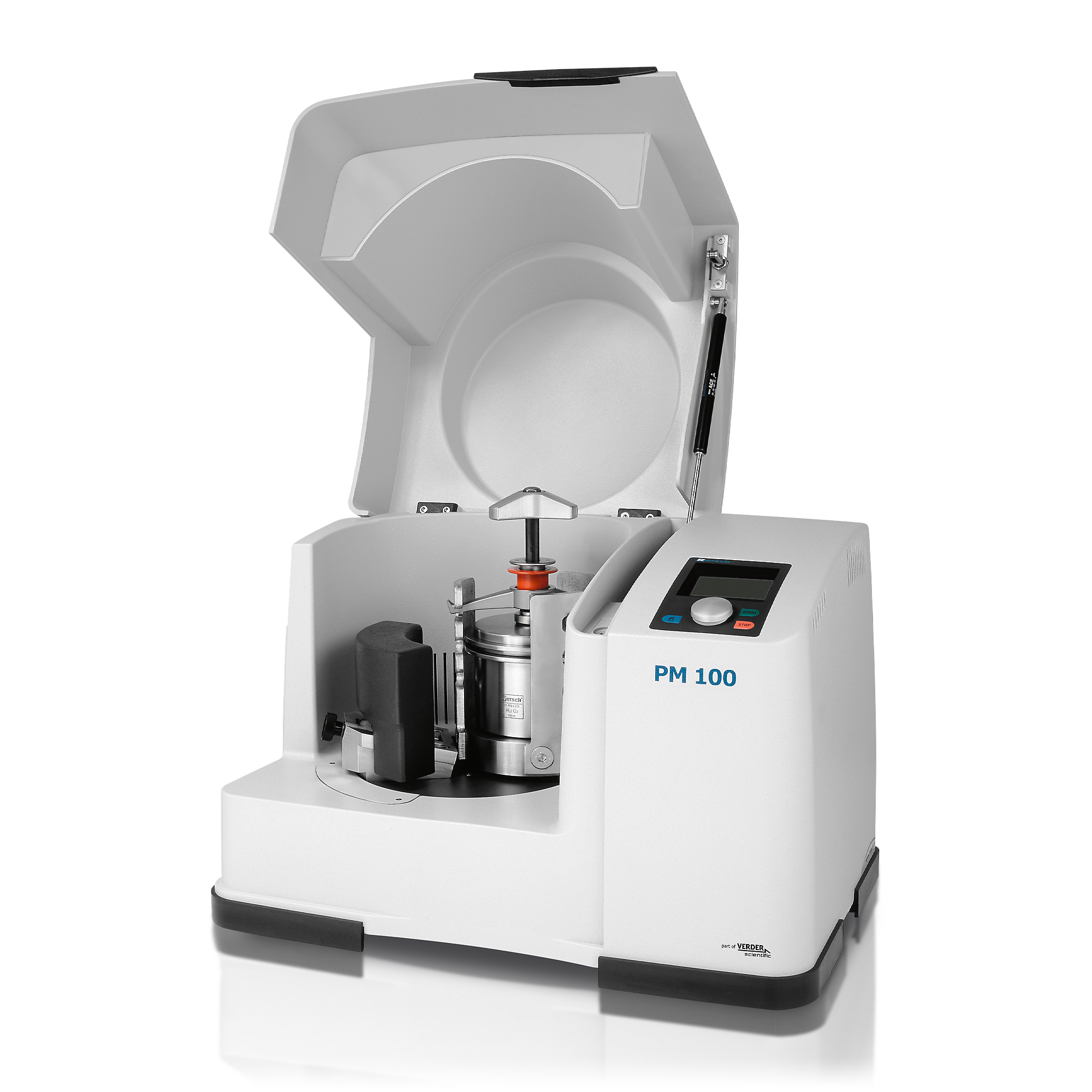

PM 100
with 1 grinding station, speed ratio 1 : -2
other electrical versions available for the same price
Accessories Planetary Ball Mills
22.661.0002
Clamping unit for PM 100 / PM 400
03.025.0178
Adapter for stacking grinding jars 50 ml - 80 ml
22.221.0002

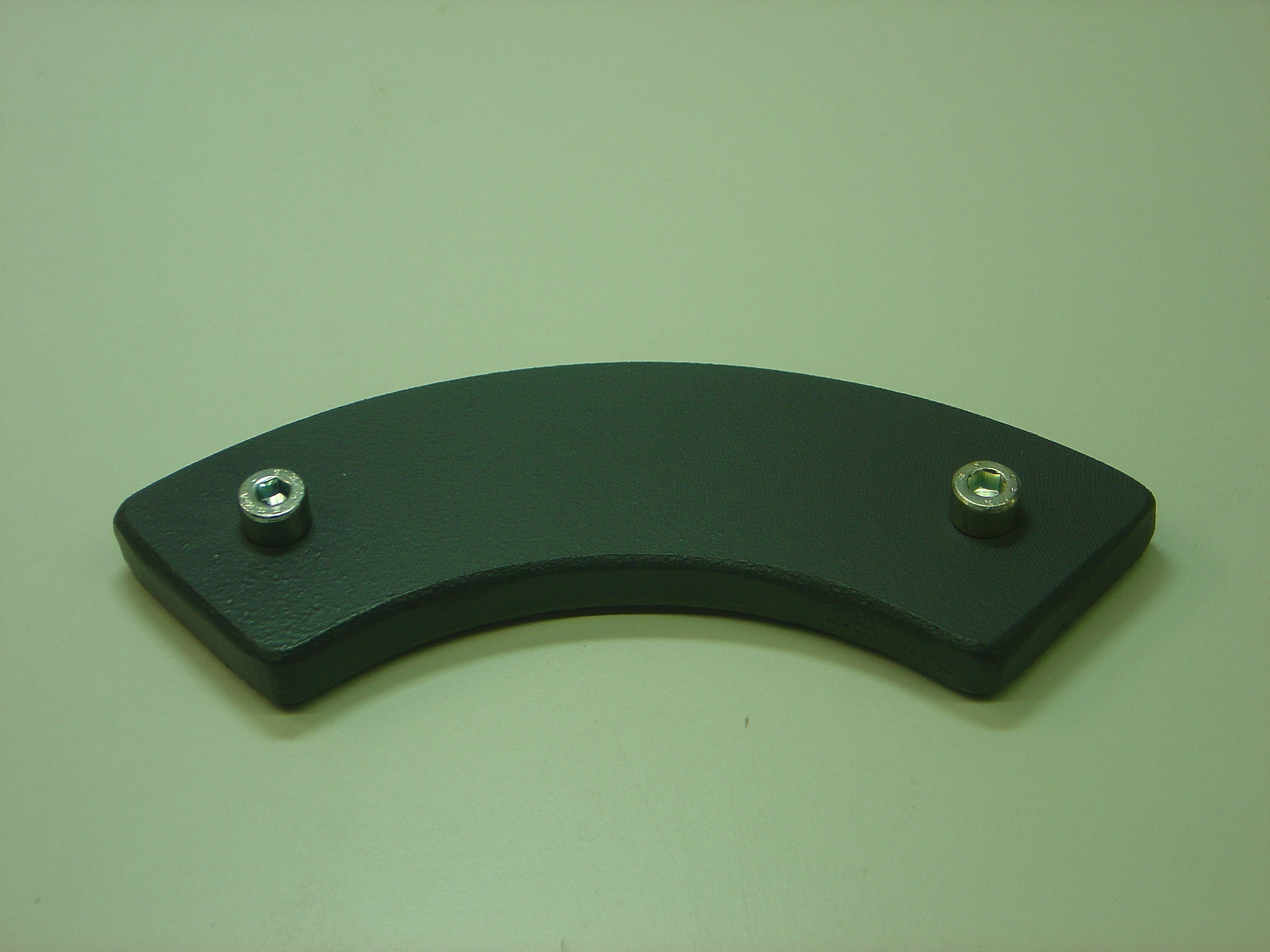

Add-on weight for PM 100
02.728.0048
Counter aid for sun wheel PM 100, PM 200 and PM 400
03.486.0062

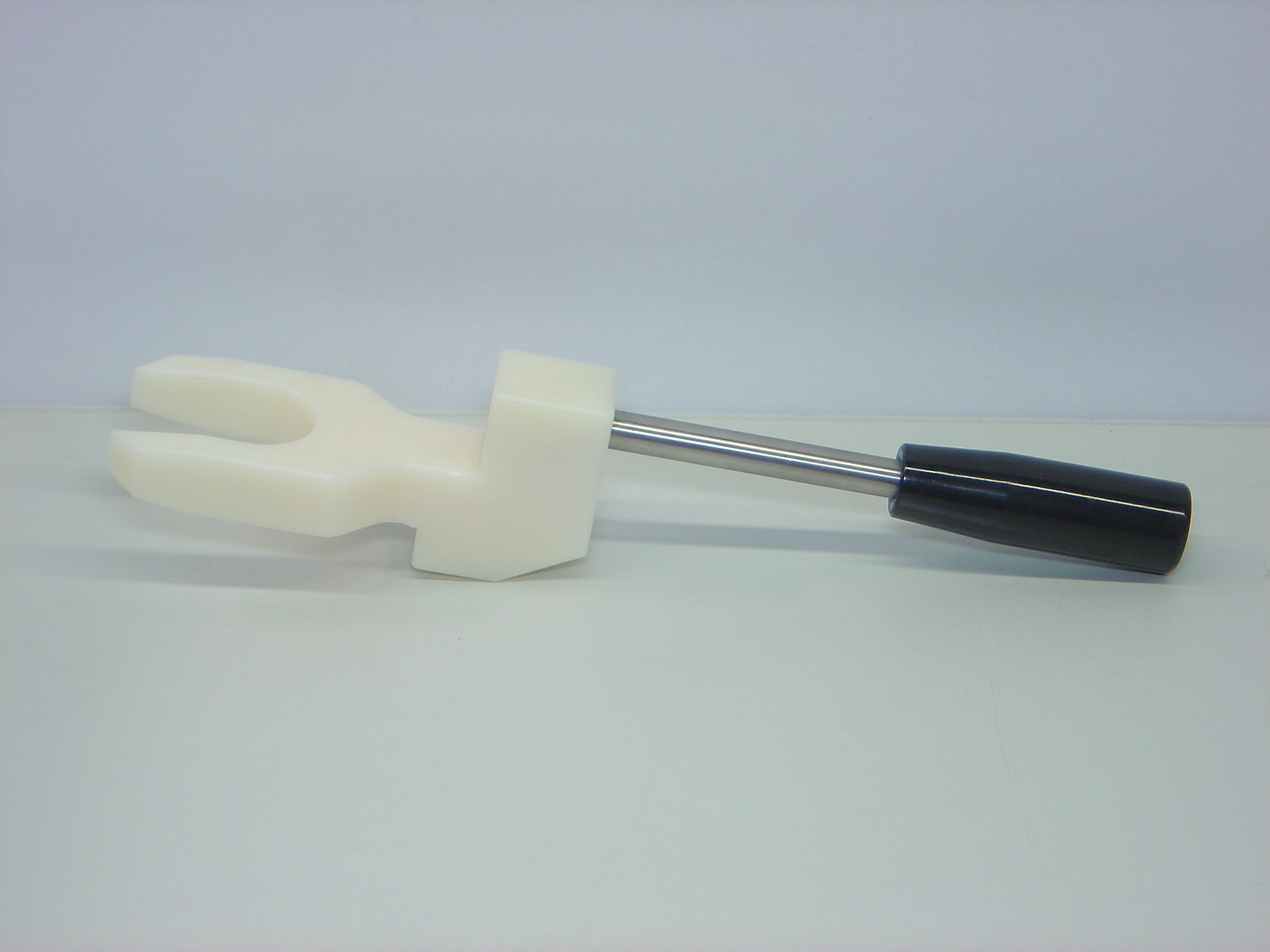

Opening aid for clamping unit of planetary ball mills
99.200.0006
IQ/OQ Documentation for PM 100
Pressure and temperature measuring system GrindControl for Planetary Ball Mills
incl. sensors and transmitter unit, inseert of lid, software, case, opening aid and cleaning accessories for PM (please order grinding jars separately)
22.782.0033
GrindControl for PM grinding jar EasyFit 50 - 125 ml
22.782.0034
GrindControl for PM grinding jar EasyFit 250 - 500 ml
GrindControl lid inserts
03.474.0243
GrindControl lid insert for 50, 80, 125 ml, stainless steel
03.474.0246
GrindControl lid insert for 50, 80, 125 ml, zirconium oxide
03.474.0244
GrindControl lid insert for 250 or 500 ml, stainless steel
03.474.0247
GrindControl lid insert for 250 or 500 ml, zirconium oxide
Accessories for PM GrindControl with grinding jars EasyFit
05.114.0056
O-ring for 50, 80 or 125 ml
05.114.0054
O-ring for 250 ml - 500 ml grinding jars EasyFit (PM)
03.111.0438
Flat gasket for 50 ml, 80 ml or 125 ml
03.111.0439
Flat gasket for 250 ml - 500 ml
22.186.0007
Sintered filter with O-ring, set of 10 pieces
22.864.0001
Valve set M8x1 for GrindControl and aeration lids
Grinding jars EasyFit
(grinding jars EasyFit are suitable for all planetary ball mills)
Hardened stainless steel
01.462.0239

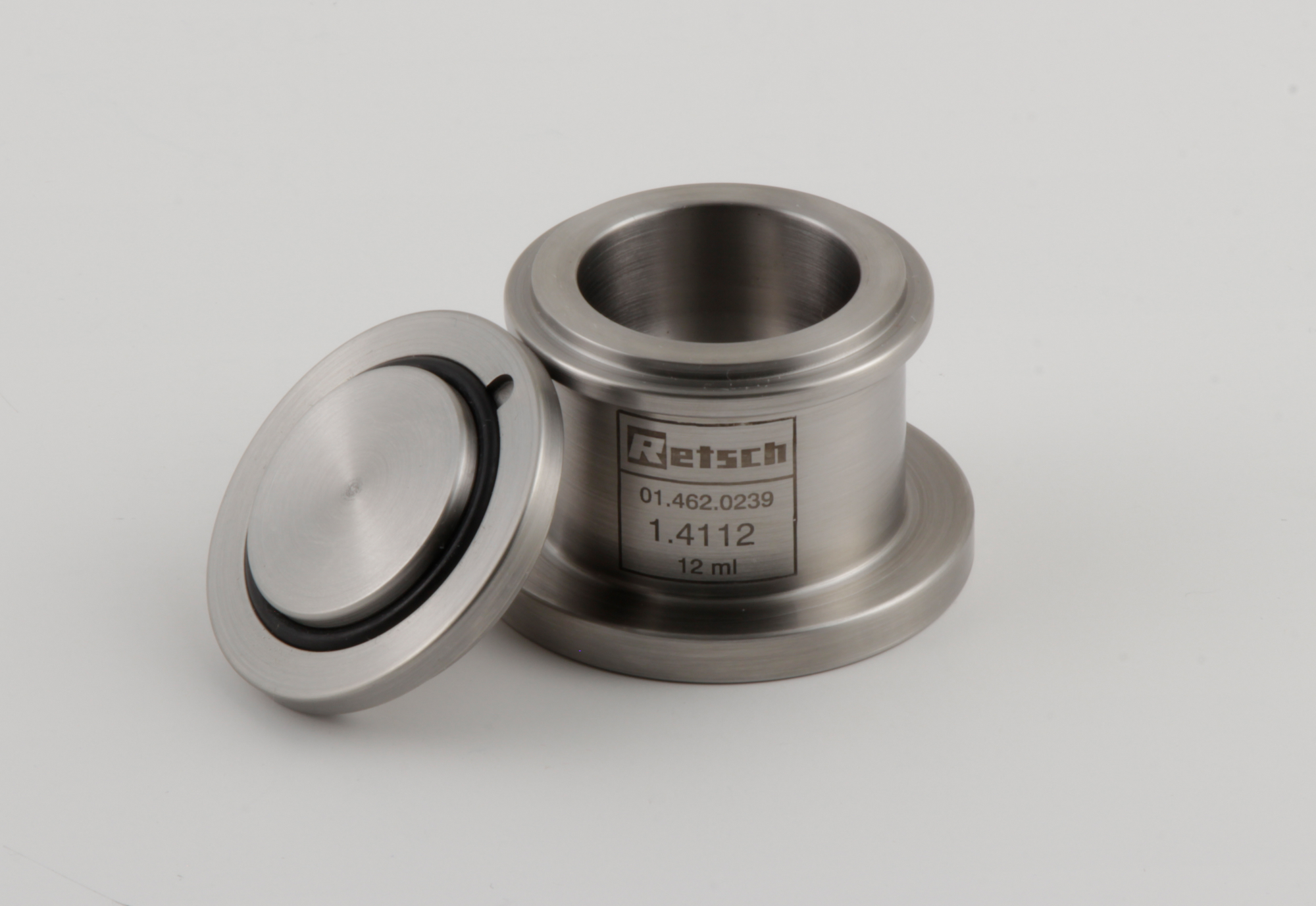

12 ml
01.462.0240
25 ml
Tungsten carbide
Agate
Sintered aluminum oxide
Zirconium oxide
Adapter for glass vials

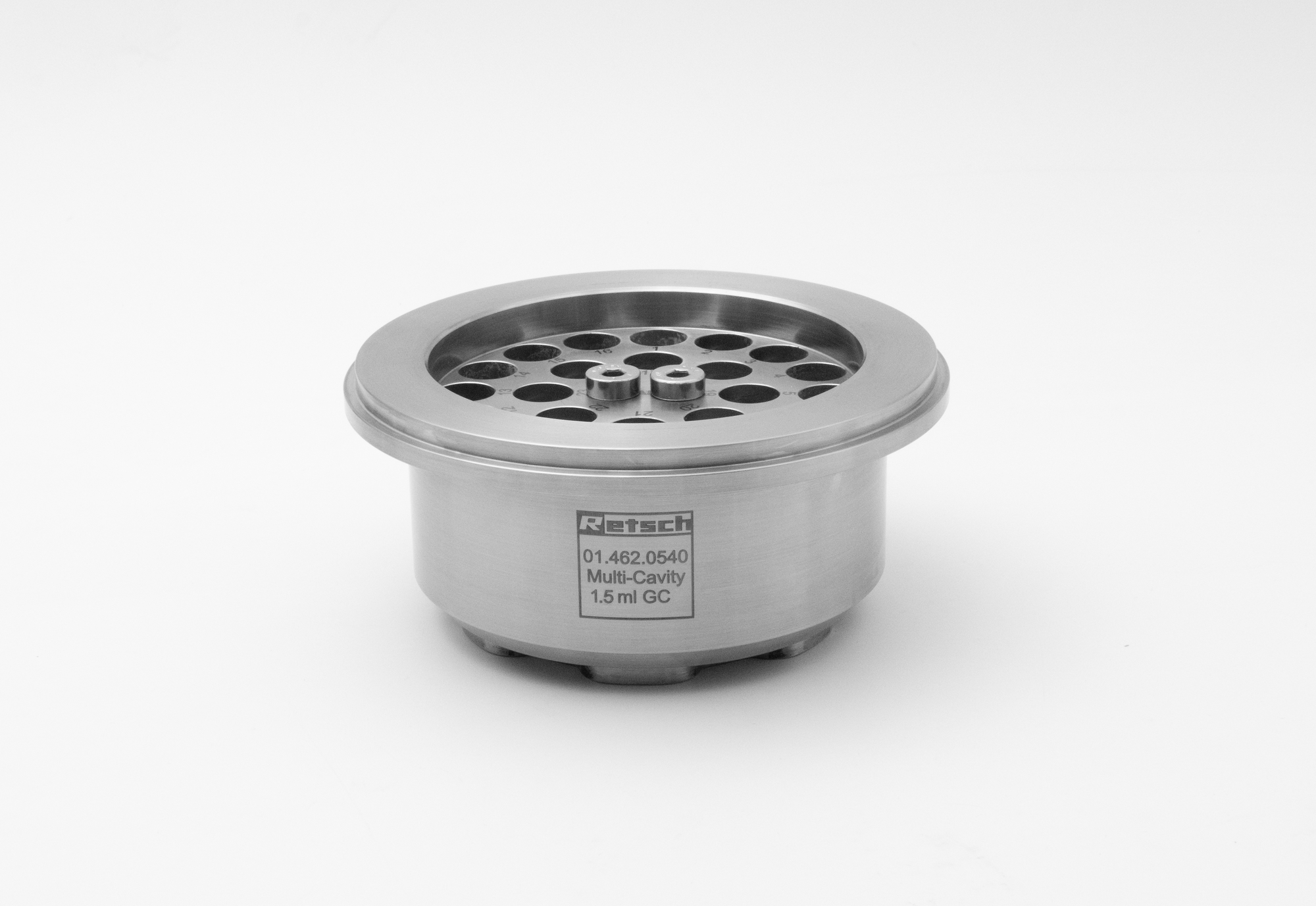

01.462.0540
Adapter for 24 x 1.5 ml glass vials, stainless, hardened steel
22.749.0009

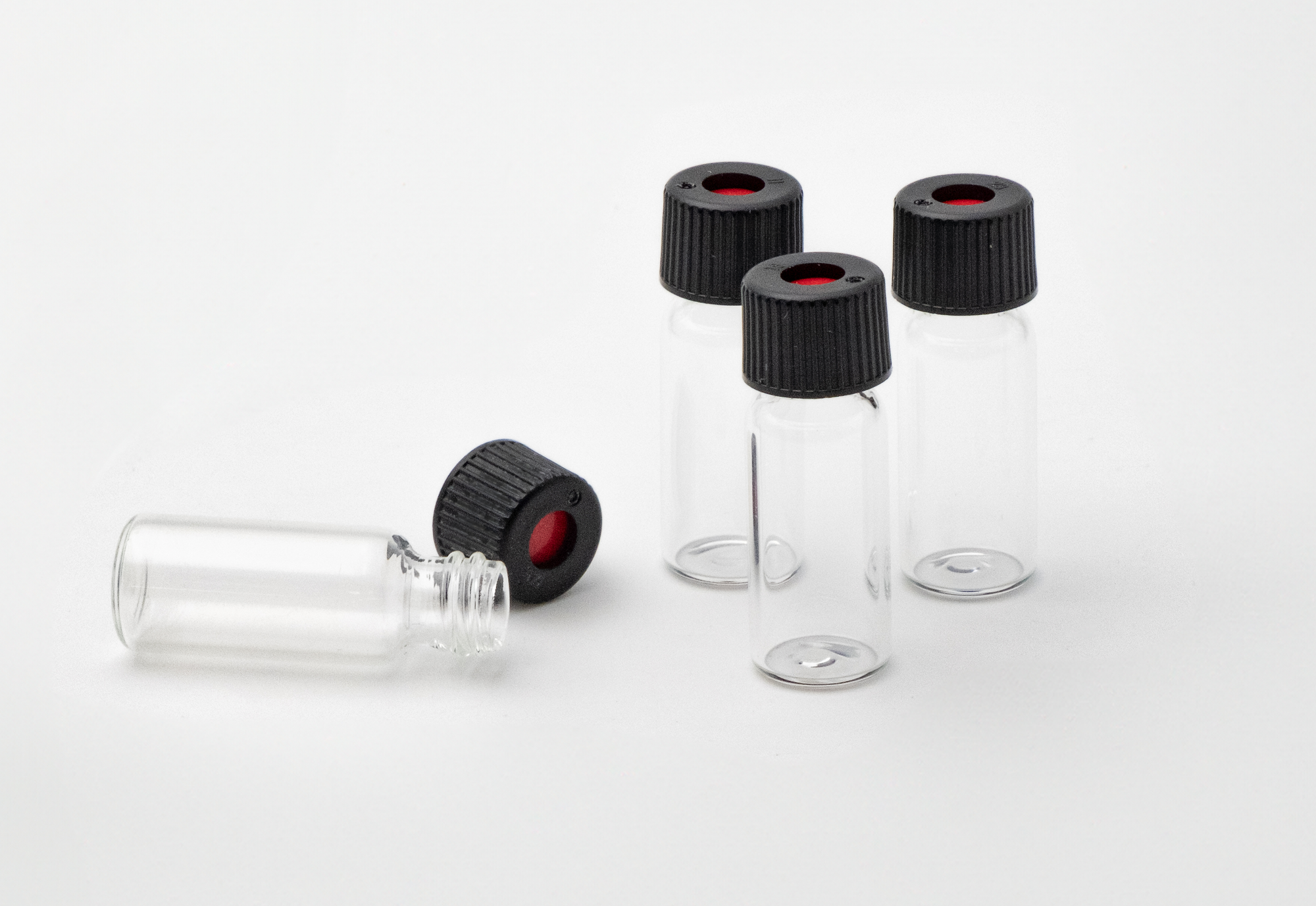

Glass vial 1.5 ml incl. septum cap, 100 pieces
05.181.0112
Replacement pressure spring for adapter for 24 x 1.5 ml glass vials, 1 piece
01.462.0541
Adapter for 7 x 20 ml glass vials, stainless, hardened steel
22.749.0010
Glass vial 20 ml incl. septum cap, 100 pieces
05.181.0044
Replacement pressure spring for adapter for 7 x 20 ml glass vials, 1 piece
Accessories for grinding jars EasyFit for wet grinding, grinding with inert atmosphere and Mechanical Alloying (MA)
Aeration lids (incl. inlay)
22.107.0613
for grinding jars EasyFit 50 ml - 125 ml, hardened stainless steel
22.107.0616
for grinding jars EasyFit 50 ml - 125 ml, tungsten carbide
22.107.0617
for grinding jars EasyFit 50 ml - 125 ml, agate
22.107.0615
for grinding jars EasyFit 50 ml - 125 ml, zirconium oxide
22.107.0618
for grinding jars EasyFit 250 ml - 500 ml, hardened stainless steel
22.107.0621
for grinding jars EasyFit 250 ml - 500 ml, tungsten carbide
22.107.0622
for grinding jars EasyFit 250 ml - 500 ml, agate
22.107.0620
for grinding jars EasyFit 250 ml - 500 ml, zirconium oxide
22.107.0619
for grinding jars EasyFit 250 ml - 500 ml, aluminum oxide
22.864.0001
Spare valve set for aeration lids M8x1
Inlay for aeration lid
03.474.0225
for grinding jars EasyFit 50 ml - 125 ml, hardened stainless steel
03.474.0207
for grinding jars EasyFit 50 ml - 125 ml, tungsten carbide
03.474.0208
for grinding jars EasyFit 50 ml - 125 ml, agate
03.474.0206
for grinding jars EasyFit 50 ml - 125 ml, zirconium oxide
03.474.0226
for grinding jars EasyFit 250 ml - 500 ml, hardened stainless steel
03.474.0210
for grinding jars EasyFit 250 ml - 500 ml, tungsten carbide
03.474.0211
for grinding jars EasyFit 250 ml - 500 ml, agate
03.474.0209
for grinding jars EasyFit 250 ml - 500 ml, zirconium oxide
03.474.0215
for grinding jars EasyFit 250 ml - 500 ml, aluminum oxide
Aeration lids for grinding jars EasyFit
incl. o-rings and sintered filter (please order lid insert and grinding jar separately)
22.107.0636
Aeration lid for grinding jar EasyFit 50 ml - 125 ml
22.107.0637
Aeration lid for grinding jar EasyFit 250 ml - 500 ml
Insert for grinding jar EasyFit
03.474.0261
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, stainless steel
03.474.0262
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, zirconium oxide
03.474.0263
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, tungsten carbide
03.474.0268
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, agate
03.474.0264
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, stainless steel
03.474.0265
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, zirconium oxide
03.474.0266
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, tungsten carbide
03.474.0267
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, aluminum oxide
03.474.0269
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, agate
22.186.0007
Sintered filter with O-ring, set of 10 pieces
22.864.0001
Valve set M8x1 for GrindControl and aeration lids
Safety closure devices
22.867.0011
for grinding jars EasyFit 50 ml - 125 ml
22.867.0012
for grinding jars EasyFit 250 ml - 500 ml
02.486.0055
Opening aid for safety closure device
Gaskets for grinding jars EasyFit

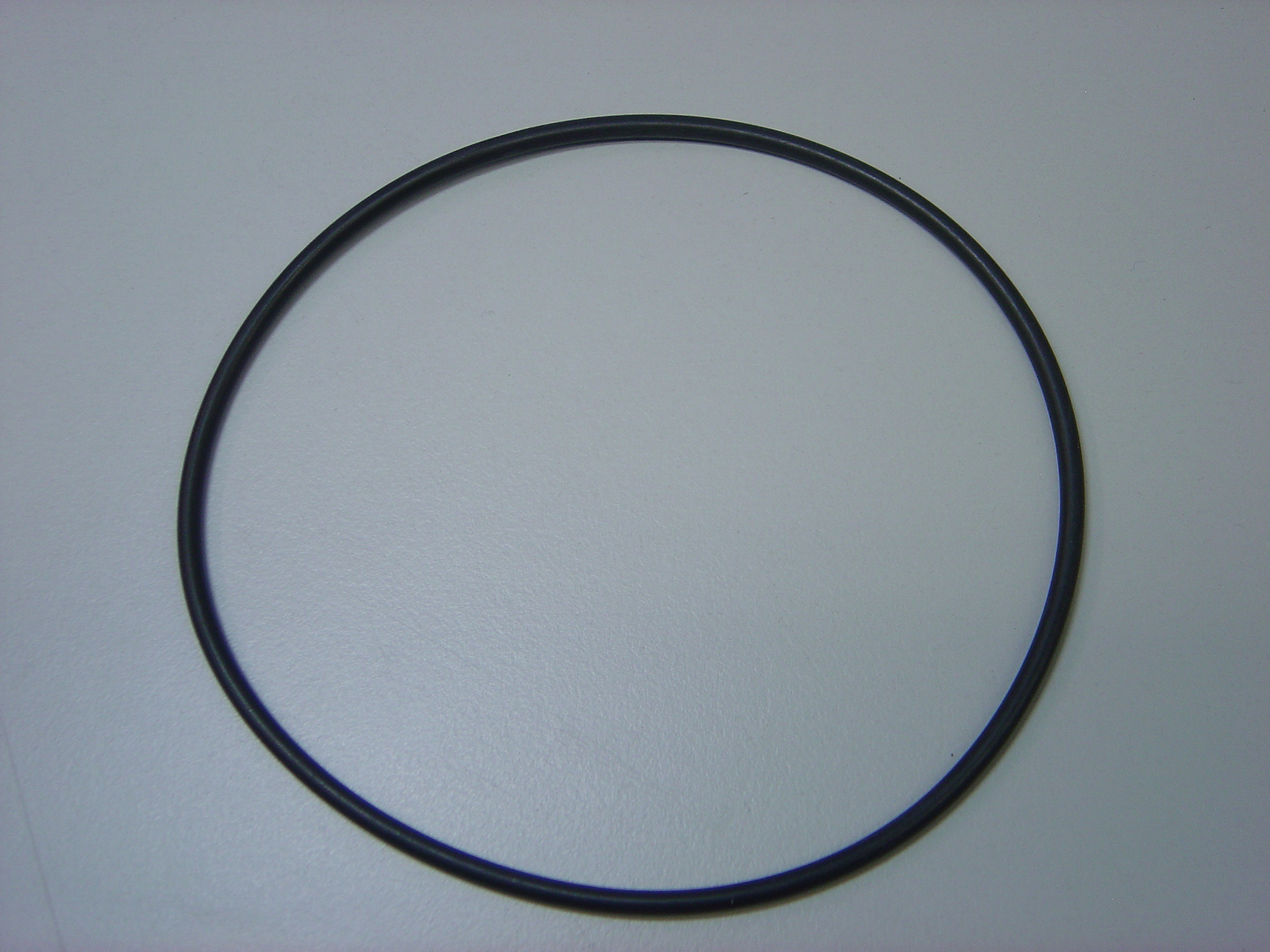

O-rings
05.114.0086
O-ring for 12 ml grinding jar EasyFit
05.114.0085
O-ring for 25 ml grinding jar EasyFit
05.114.0054
O-ring for 250 ml - 500 ml grinding jars EasyFit
05.114.0056
O-ring for 50 ml - 125 ml grinding jars EasyFit
05.114.0063
O-ring for 250 ml - 500 ml grinding jars EasyFit, agate
03.111.0438
Flat gasket for 50 ml, 80 ml or 125 ml
03.111.0439
Flat gasket for 250 ml - 500 ml

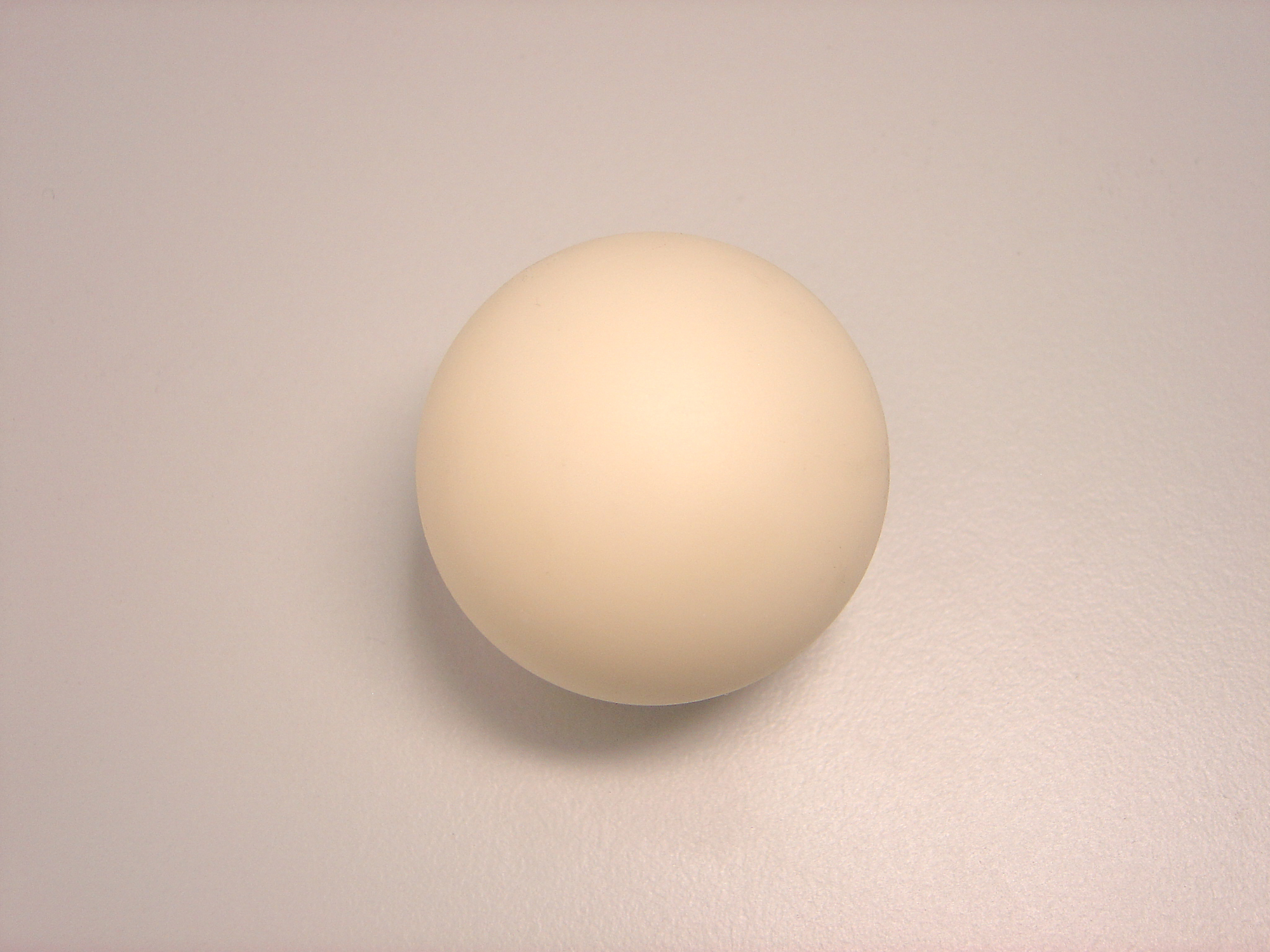

Grinding balls
Grinding balls are available in different diameters. The rule of thumb is: for efficient milling the ball should be at least 3 times larger than the largest particle in the sample. To avoid abrasion and wear it is essential to only use balls with identical diameter.
The number of grinding balls depends on the jar volume used. The document “Grinding Jar Ball Charge” in the Downloads section provides details about usable volumes, maximum feed sizes and correct filling of the jars with grinding balls for dry and wet milling as well as cell disruption.
Grinding jars and grinding balls should always be made of the same material.
Available materials:
- Hardened steel (density 7.8 g/cm3; hardness ≤ 235 HB, medium abrasion resistance)
typically used for pulverizing medium-hard to hard and brittle samples.
- Stainless steel (density 7.7 g/cm3; hardness ≤ 245 HB, medium abrasion resistance)
typically used for pulverizing medium-hard to hard and brittle samples.
- Tungsten carbide (density 14.8 g/cm3; hardness 93.6 HRA; high abrasion resistance)
used for grinding very hard, brittle sample materials. By using tungsten carbide, contamination of the sample with iron is prevented.
- Agate (density 2.6 g/cm3; hardness 6.5 – 7 Mohs, low abrasion resistance)
a highly pure natural material suitable for pulverizing soft to medium-hard or fibrous samples. Due to its low-density agate is suitable for gentle grinding processes with low energy input.
- Sintered aluminum oxide (density 3.8 g/cm3; hardness 1600 HV 0.5, medium abrasion resistance) is a ceramic material suitable for grinding soft to medium-hard or fibrous samples. It is mainly used for heavy-metal-free grinding processes.
- Silicon nitride (density 3.6 g/cm3; hardness 1600 HV, high abrasion resistance) is a ceramic material suitable for grinding medium-hard to hard samples. Due to its low density silicon nitride is used for gentle grinding processes with low energy input. Thanks to the high abrasion resistance of the material it is also highly suitable for ultrafine grinding.
- Zirconium oxide (density 6.05 g/cm3; hardness 1250 HV, high abrasion resistance)
ceramic material suitable for pulverizing medium-hard to hard and fibrous samples. It is typically used for heavy-metal-free grinding processes or applications which aim at ultrafine particle sizes.
Please note: The grinding tool material should be harder than the sample. For further information check the “Material Analyses of Equipment & Accessories” document in the Downloads section.

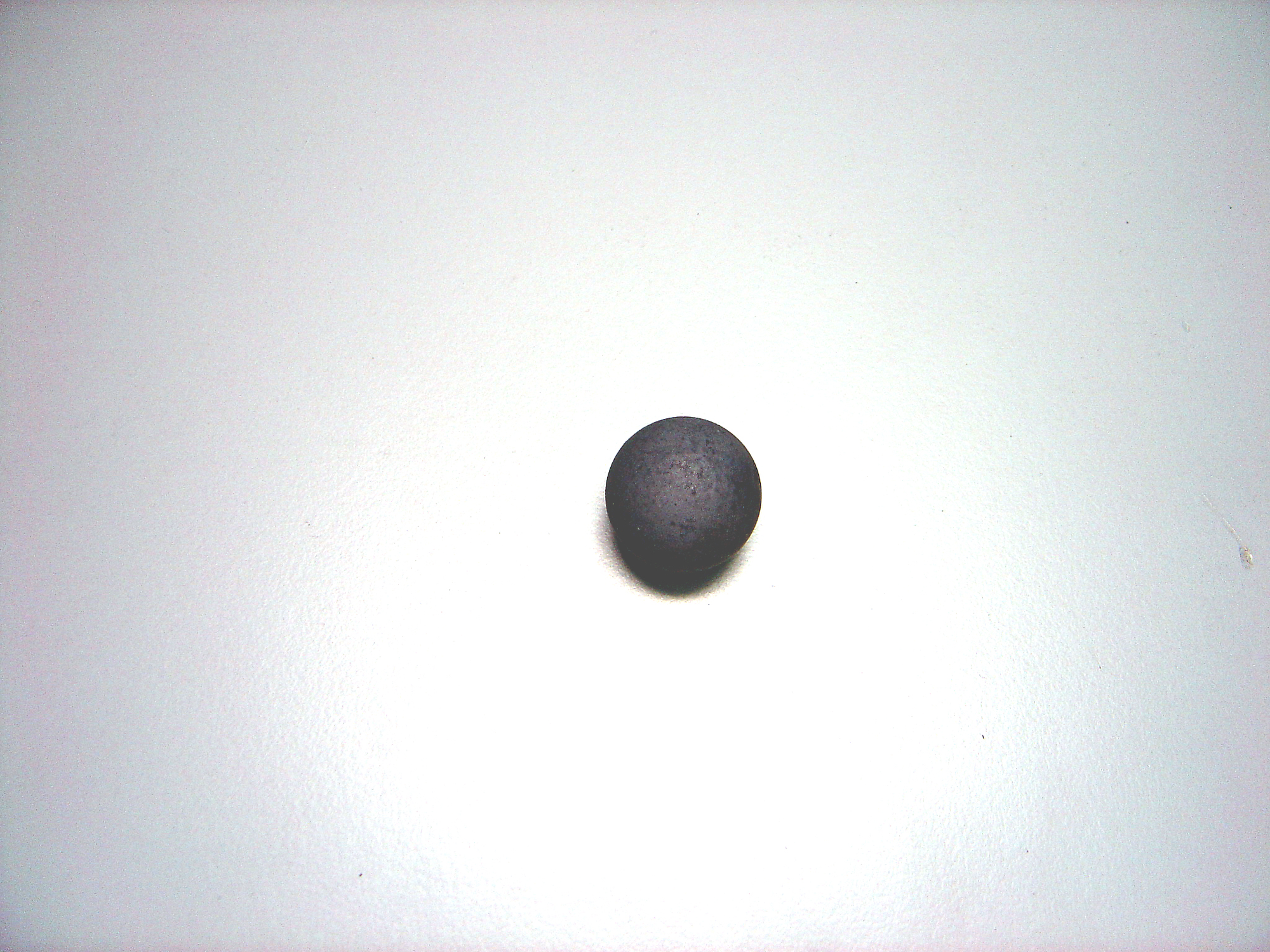

Hardened steel
05.368.0029
5 mm Ø
05.368.0030
7 mm Ø
05.368.0059
10 mm Ø
05.368.0032
12 mm Ø
05.368.0108
15 mm Ø
05.368.0033
20 mm Ø
05.368.0057
30 mm Ø

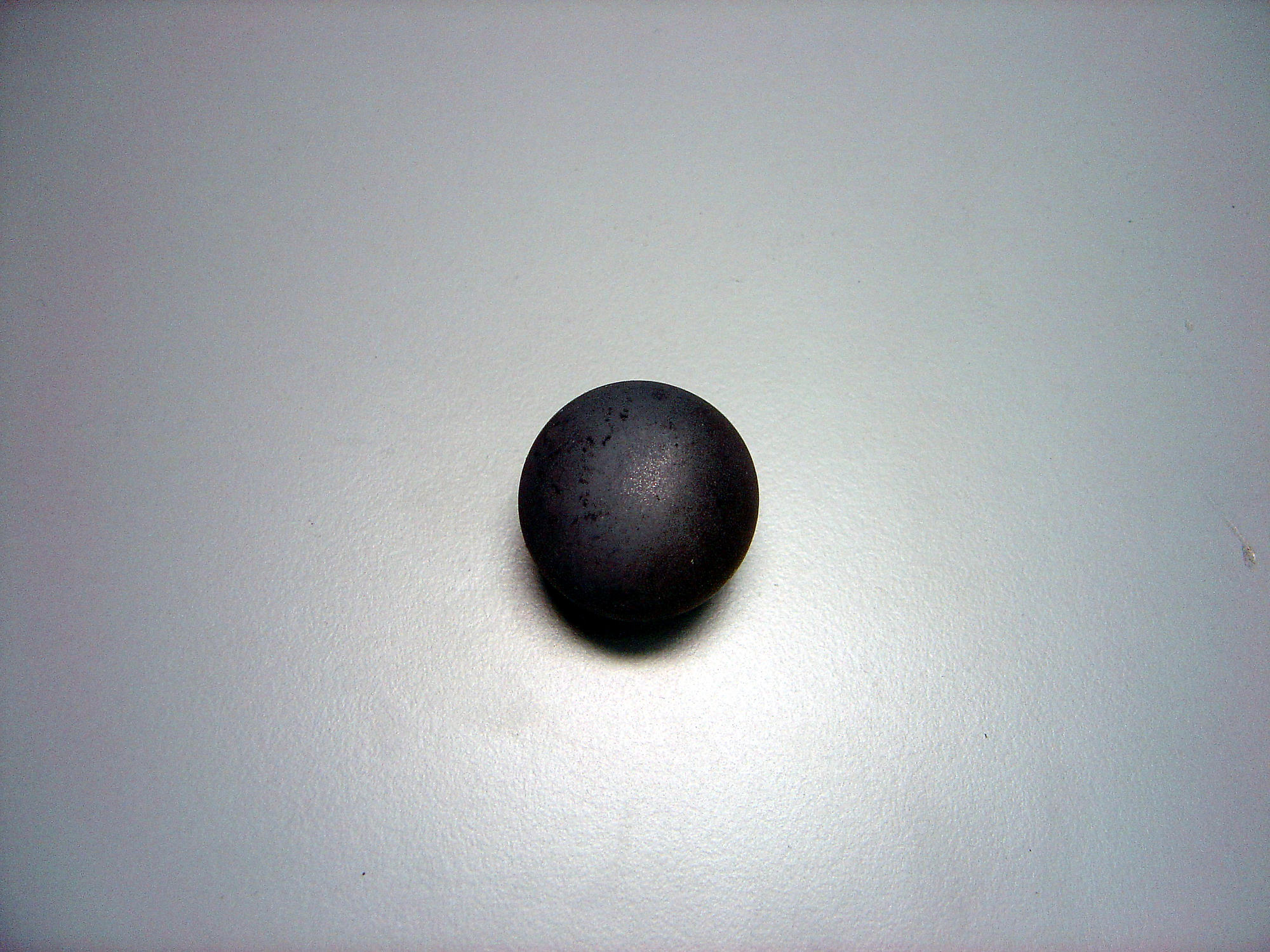

Stainless steel
22.455.0010
2 mm Ø, 500 g (approx. 110 ml)
22.455.0011
3 mm Ø, 500 g (approx. 120 ml)
22.455.0002
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0001
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0003
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0034
5 mm Ø
05.368.0035
7 mm Ø
05.368.0063
10 mm Ø
05.368.0037
12 mm Ø
05.368.0109
15 mm Ø
05.368.0062
20 mm Ø
05.368.0105
25 mm Ø
05.368.0061
30 mm Ø
Tungsten carbide
22.455.0006
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0005
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0004
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0038
5 mm Ø
05.368.0039
7 mm Ø
05.368.0071
10 mm Ø
05.368.0041
12 mm Ø
05.368.0110
15 mm Ø
05.368.0070
20 mm Ø
05.368.0069
30 mm Ø

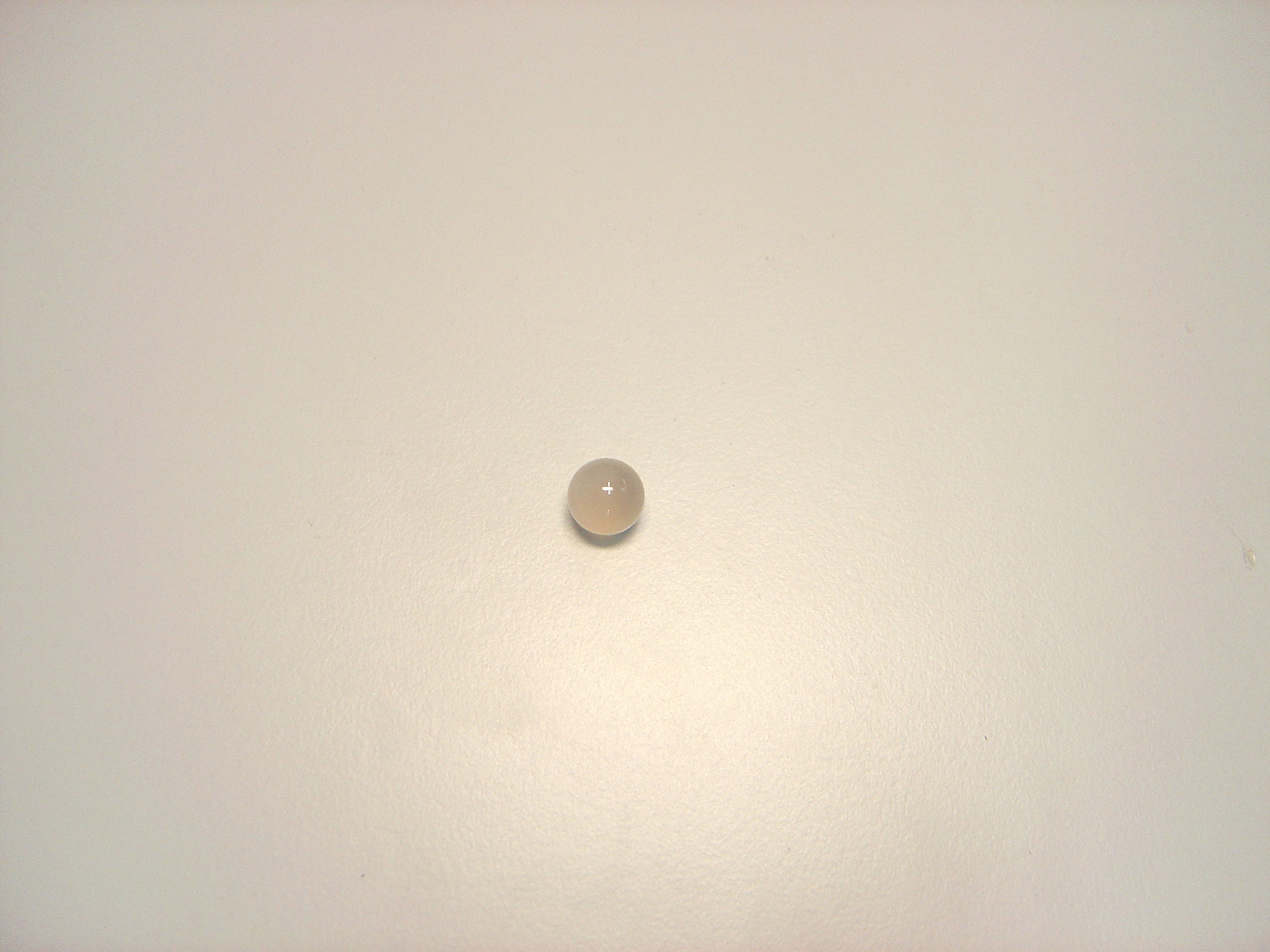

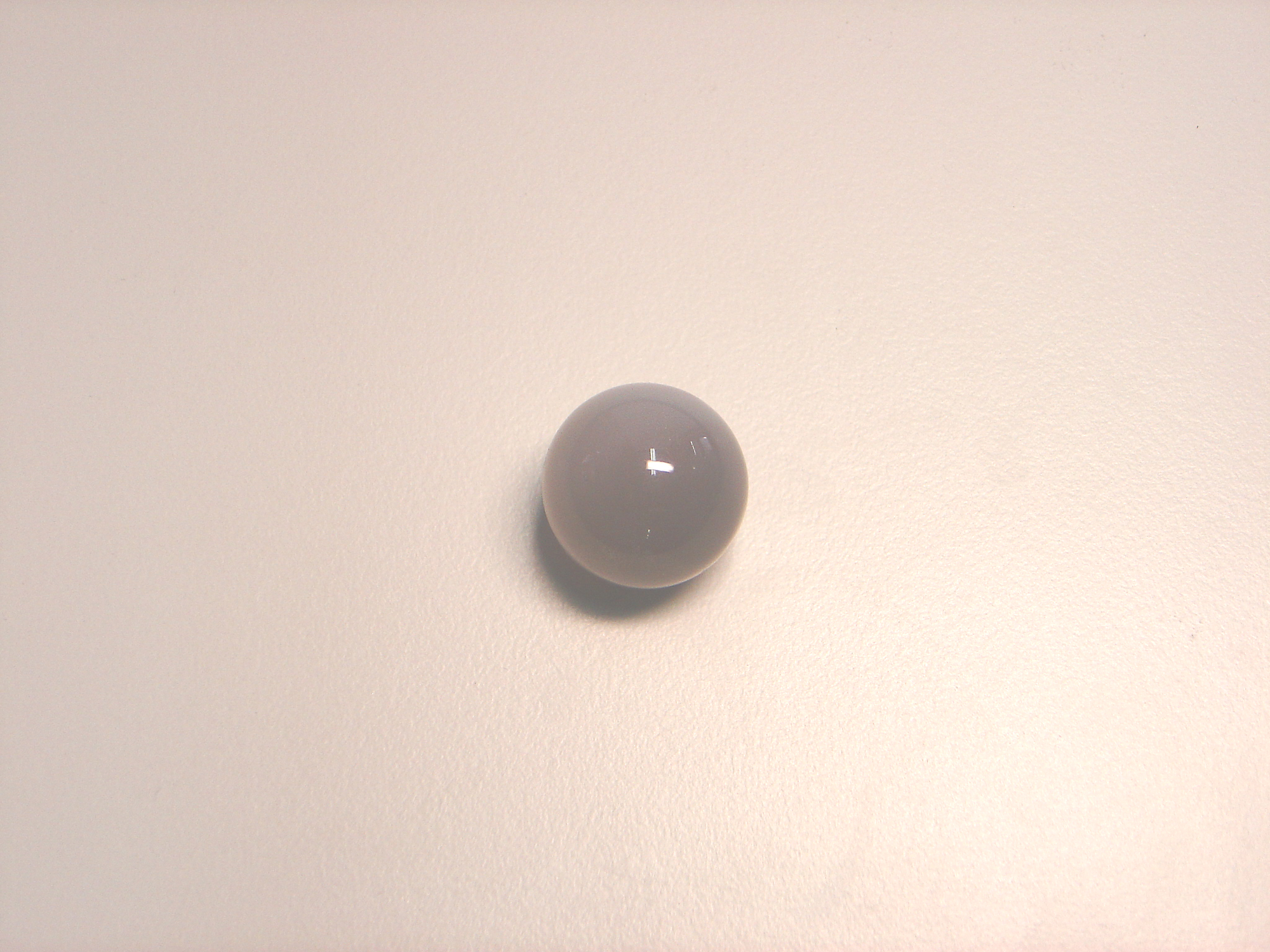

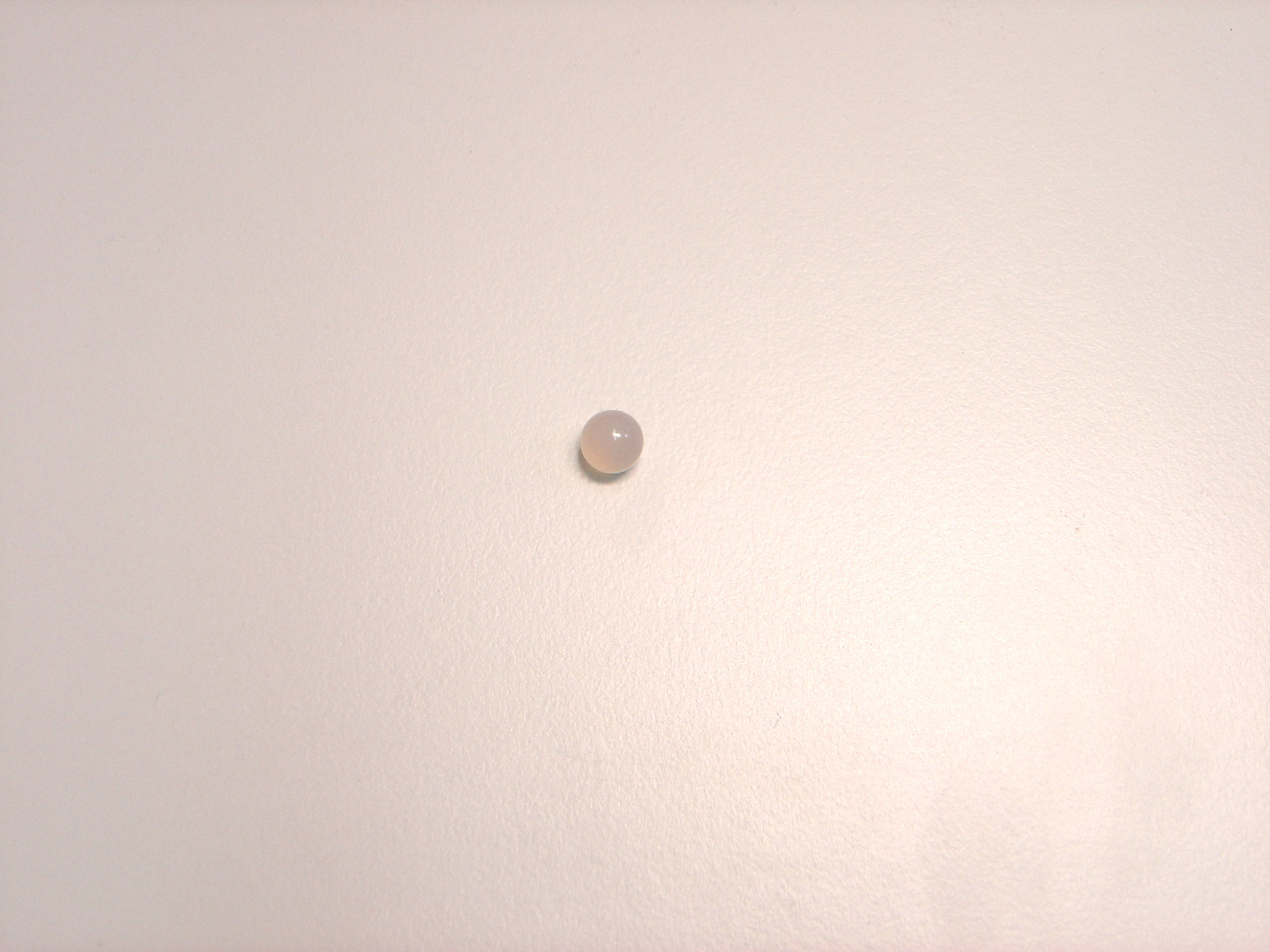

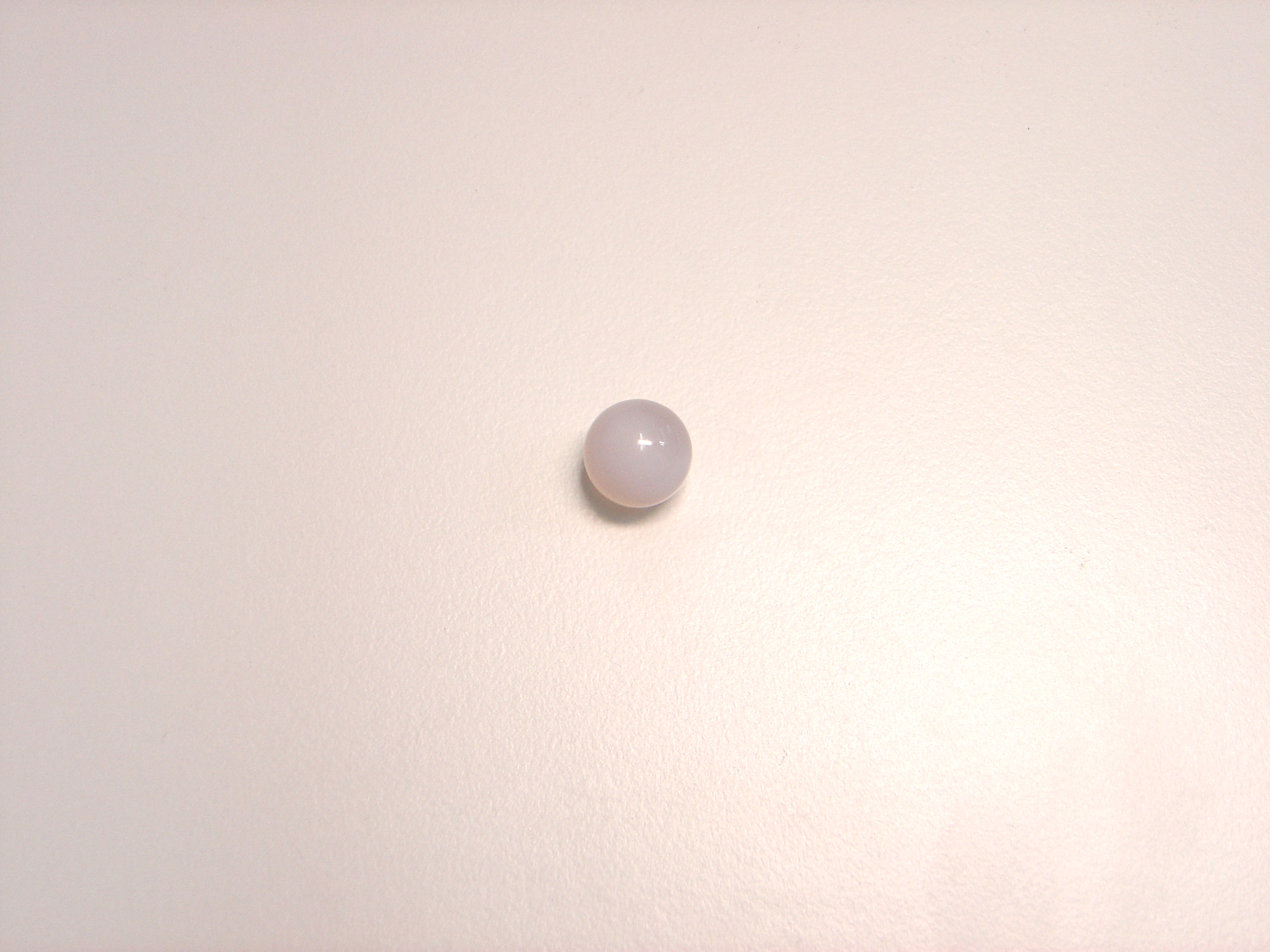

Agate
05.368.0024
5 mm Ø
05.368.0025
7 mm Ø
05.368.0067
10 mm Ø
05.368.0027
12 mm Ø
05.368.0111
15 mm Ø
05.368.0028
20 mm Ø
05.368.0065
30 mm Ø

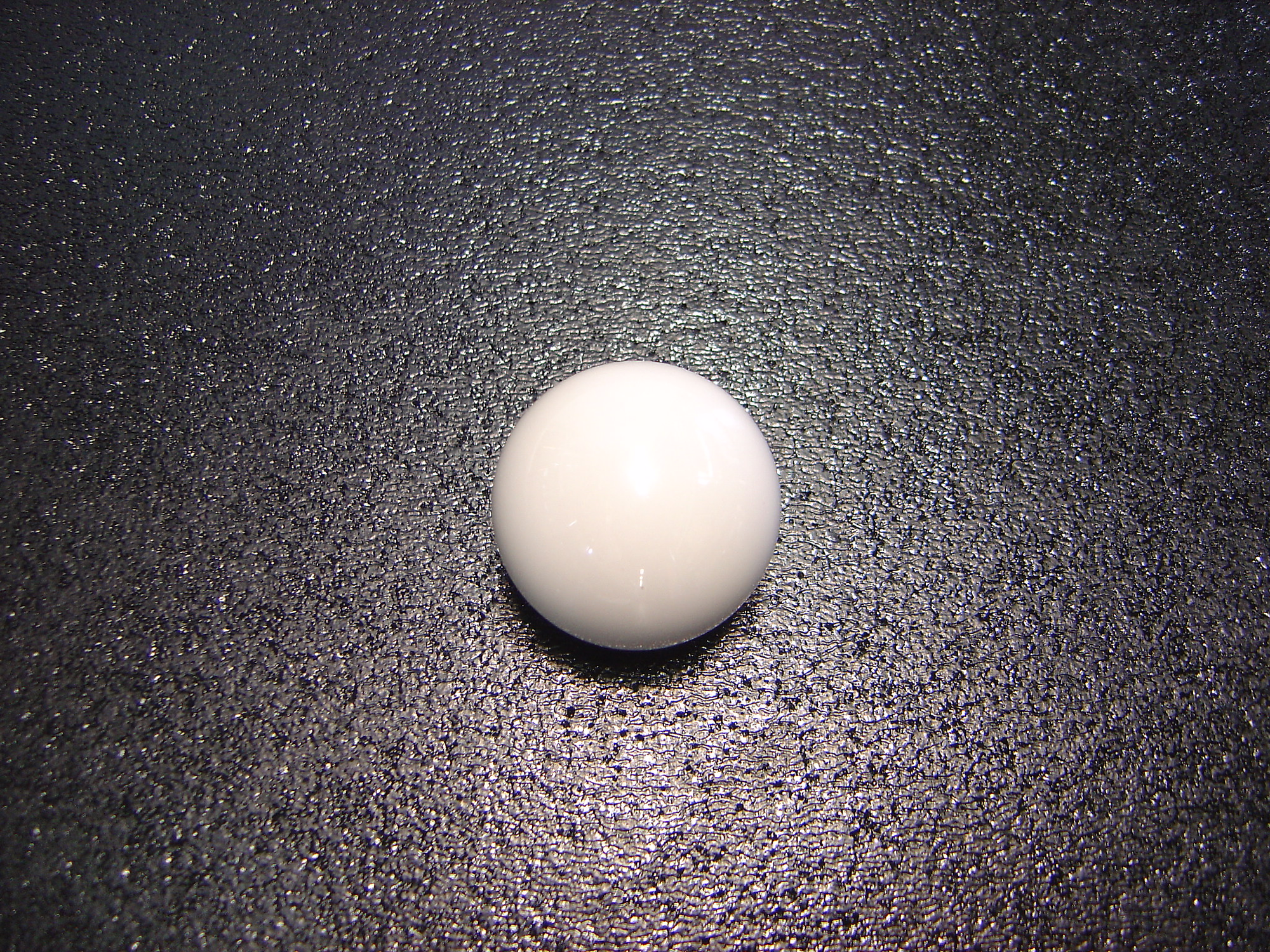

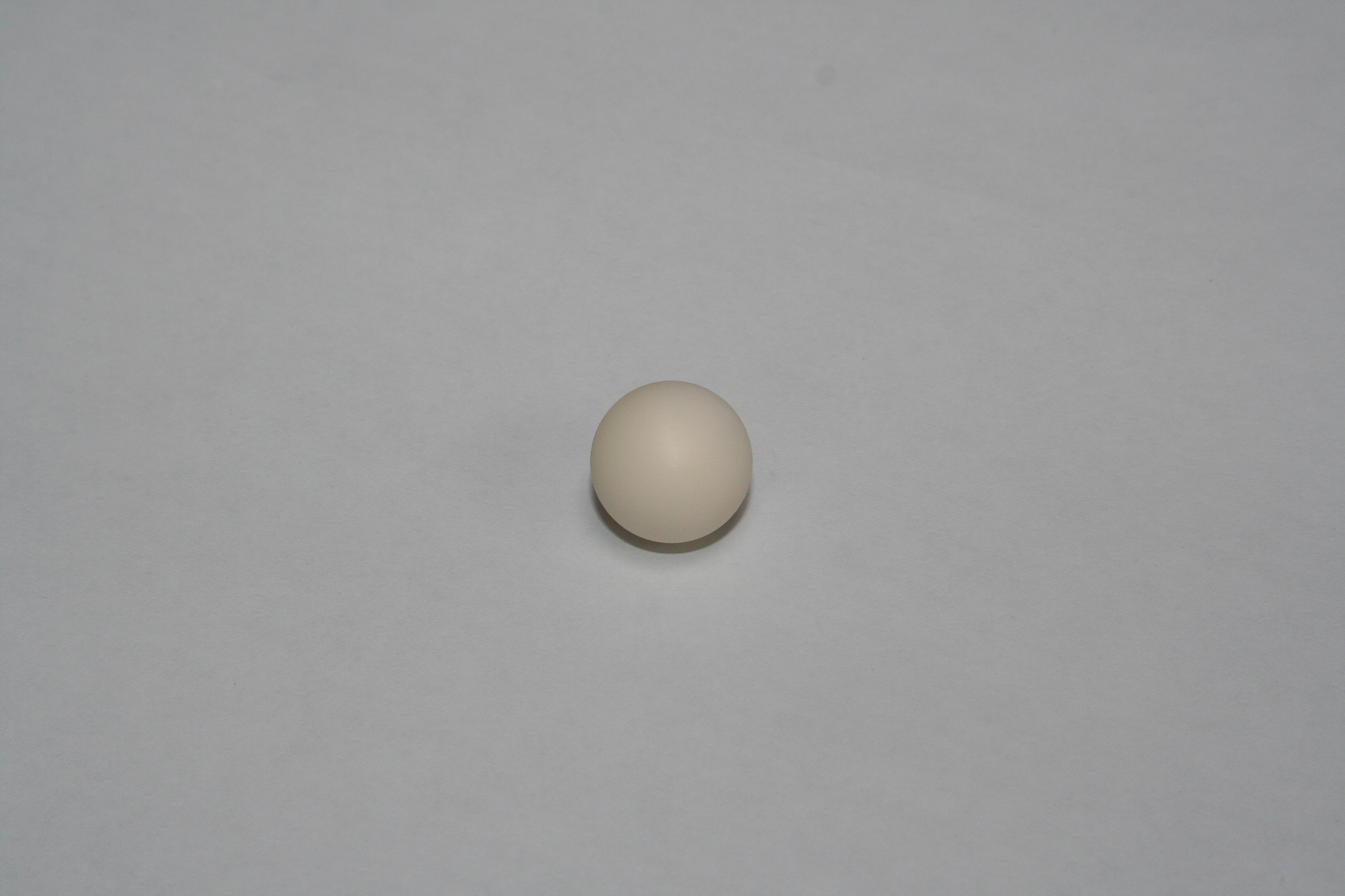

Sintered aluminum oxide
05.368.0021
10 mm Ø
05.368.0112
15 mm Ø
05.368.0054
20 mm Ø
05.368.0053
30 mm Ø
05.368.0052
40 mm Ø

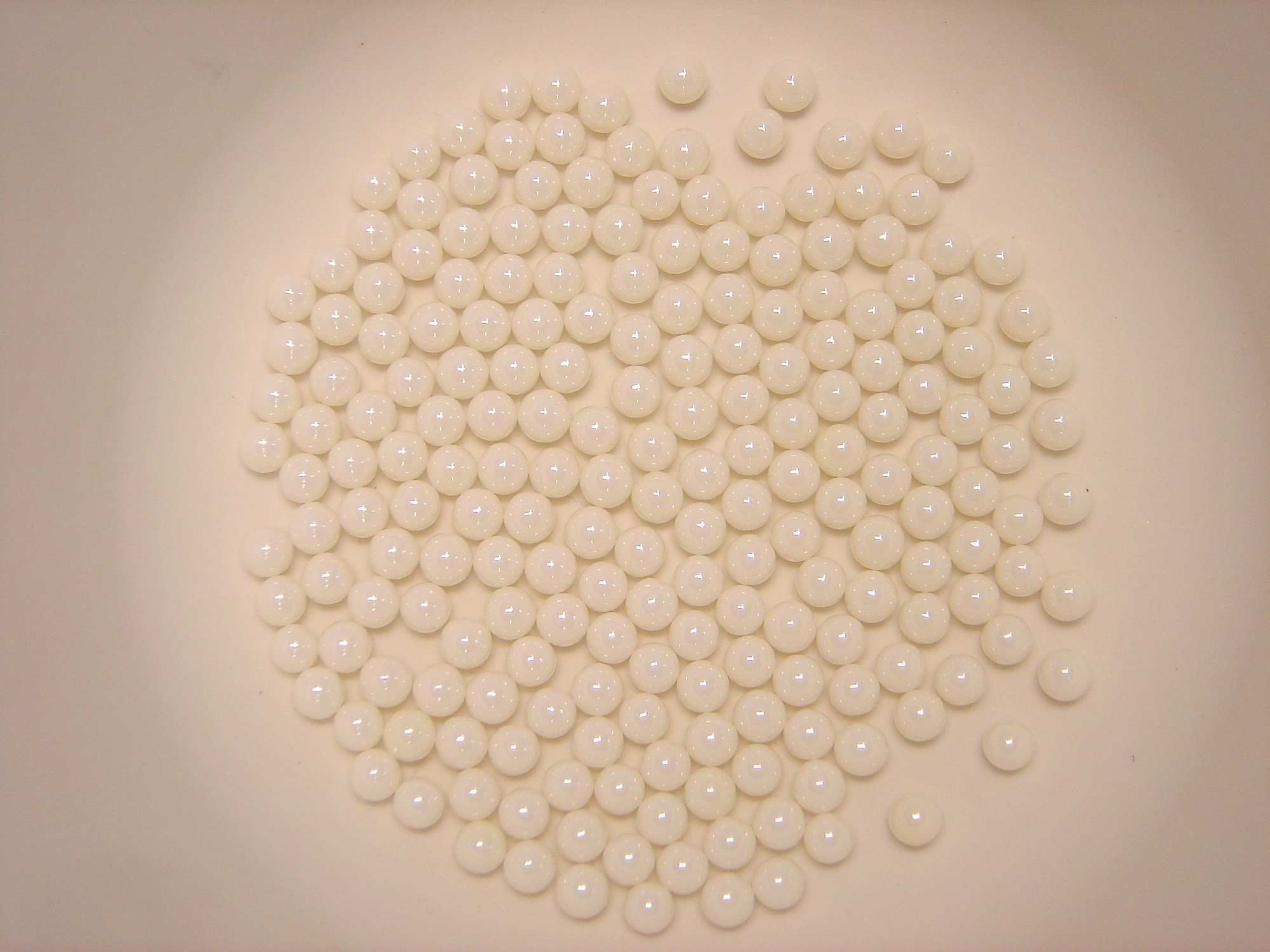

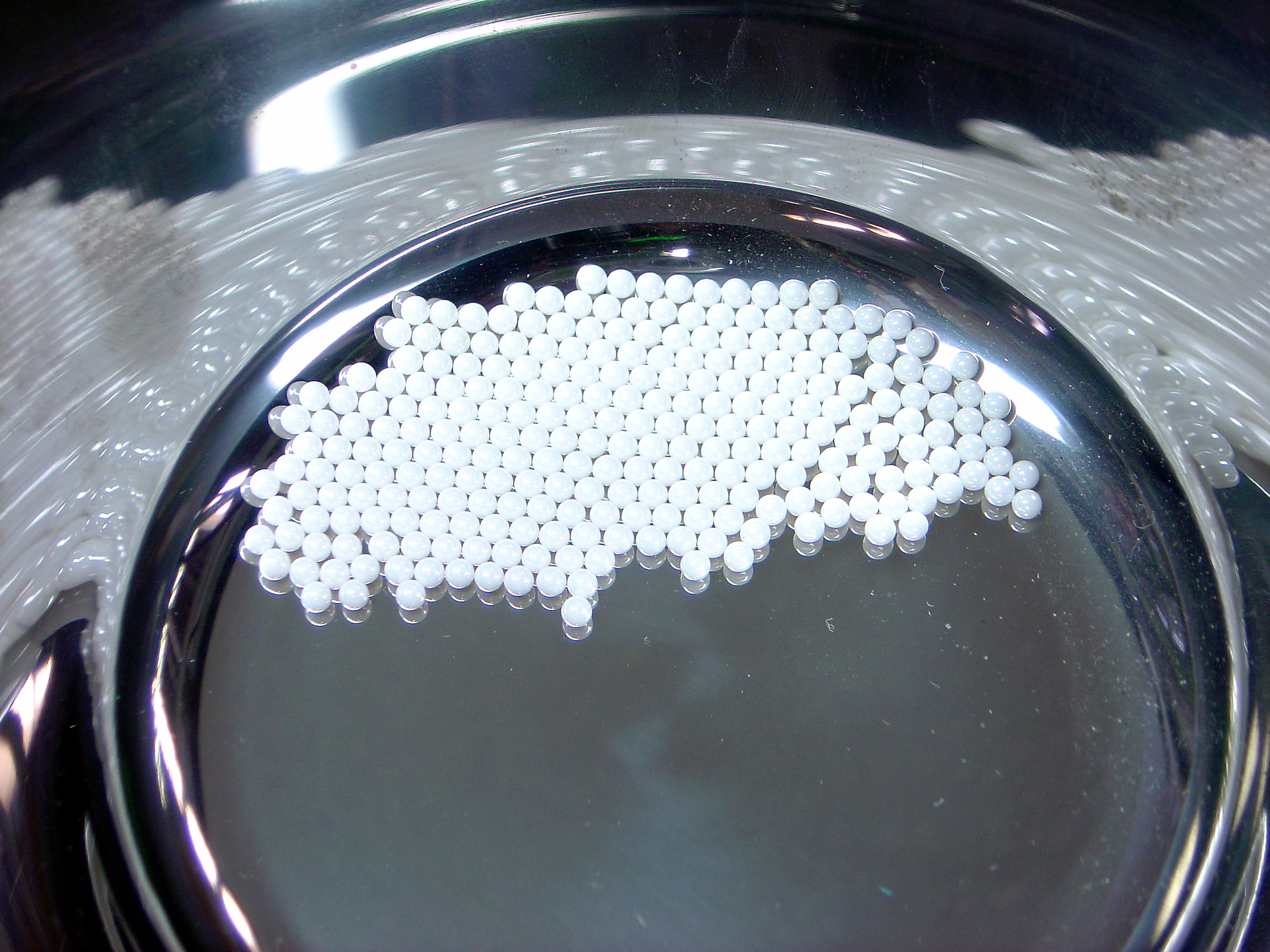

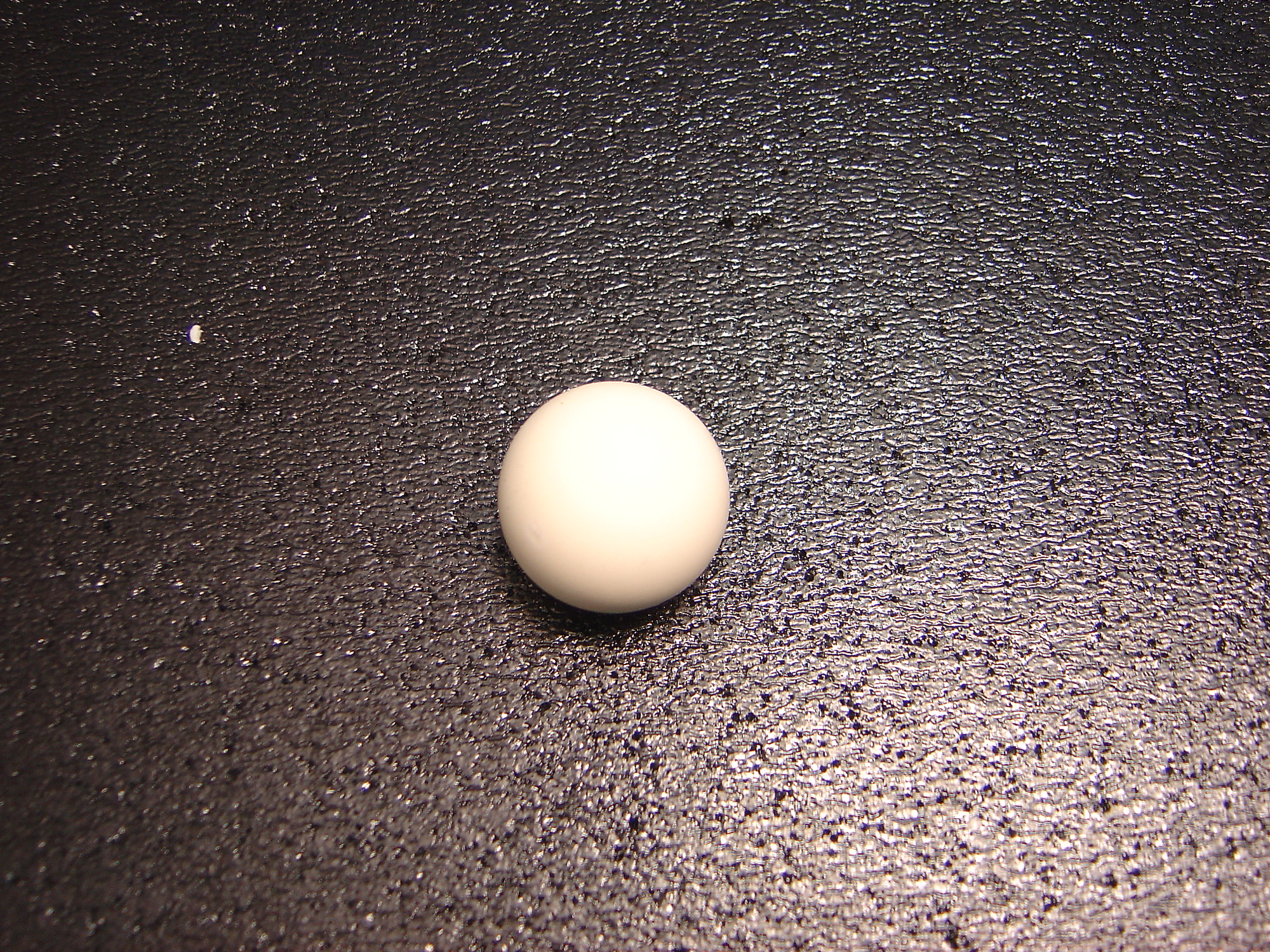

Zirconium oxide
32.368.0005
0.1 mm Ø, 0.5 kg (approx. 135 ml)
32.368.0003
0.5 mm Ø, 0.5 kg (approx. 135 ml)
32.368.0004
1 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0089
2 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0090
3 mm Ø, 0.5 kg (approx. 140 ml)
22.455.0007
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0009
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0094
10 mm Ø
05.368.0096
12 mm Ø
05.368.0113
15 mm Ø
05.368.0093
20 mm Ø
05.368.0106
25 mm Ø
05.368.0092
30 mm Ø
