Cutting Mill SM 300
Cutting mills are suitable for the grinding of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products. The new Cutting Mill SM 300 excels especially in the tough jobs where other cutting mills fail.
The high torque of the new 3 kW drive with RES technology (additional flywheel mass) allows for an exceptionally effective preliminary size reduction of heterogeneous mixtures, such as waste or electronic components. Analytical fineness is often achieved in one working run.
The cutting mill is used successfully for a great variety of materials. The sample is only moderately warmed up during the grinding process so that the mill is perfectly suitable for grinding temperature-sensitive materials. Another innovation is the wide, freely selectable speed range from 700 to 3,000 min-1.
When operated with the optional cyclone-suction-combination, the SM 300 is also suitable for grinding light sample materials or smaller quantities. In combination with the wide choice of bottom sieves, hoppers and collecting vessels, the mill can be easily adapted to varying application requirements.
Application Examples
Product Advantages
- powerful size reduction thanks to 3 kW drive with high torque and
RES technology - perfect adaptation to application requirements by variable speed from 700 to 3,000 min-1
- optimum cutting effects thanks to double acting cutting bars
- quick and easy cleaning due to fold-back hopper, smooth surfaces and push-fit rotor
- defined final fineness due to bottom sieves with aperture sizes from 0.25 - 20 mm
- wide range of accessories including various hoppers, collection systems, rotors and sieves
- highest safety standards due to engine brake, central locking device, electronic safety check and base frame
Features
| Applications | size reduction by cutting |
| Field of application | agriculture, biology, chemistry / plastics, engineering / electronics, environment / recycling, food, medicine / pharmaceuticals |
| Feed material | soft, medium-hard, tough, elastic, fibrous |
| Size reduction principle | shearing, cutting |
| Material feed size* | < 60 x 80 mm |
| Final fineness* | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz) | 700 - 3000 min-1 |
| Rotor peripheral speed | 4.7 - 20.3 m/s |
| Rotor diameter | 129.5 mm |
| Types of rotors | parallel section rotor / 6-disc rotor |
| Types of hoppers | universal, long stock |
| Material of grinding tools | hardened steel, stainless steel, steel for heavy-metal free grinding, tungsten carbide |
| Sieve sizes | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Collector systems / capacities | collecting receptacle 5 l / optional: 30 l collecting unit 0.25 / 0.5 l cyclone-suction combination (0.25 l - 5 l) |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 3 kW with flywheel mass ~ 28.5 kg |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Engine brake | yes |
| Protection code | IP 20 |
| W x H x D closed | 576 (1080 opened) x 1677 x 750 mm (with base frame and universal hopper) |
| Net weight | ~ 160 kg |
| Documentation | Operation & Application Video |
| Standards | CE |
| *depending on feed material and instrument configuration/settings |
Function Principle

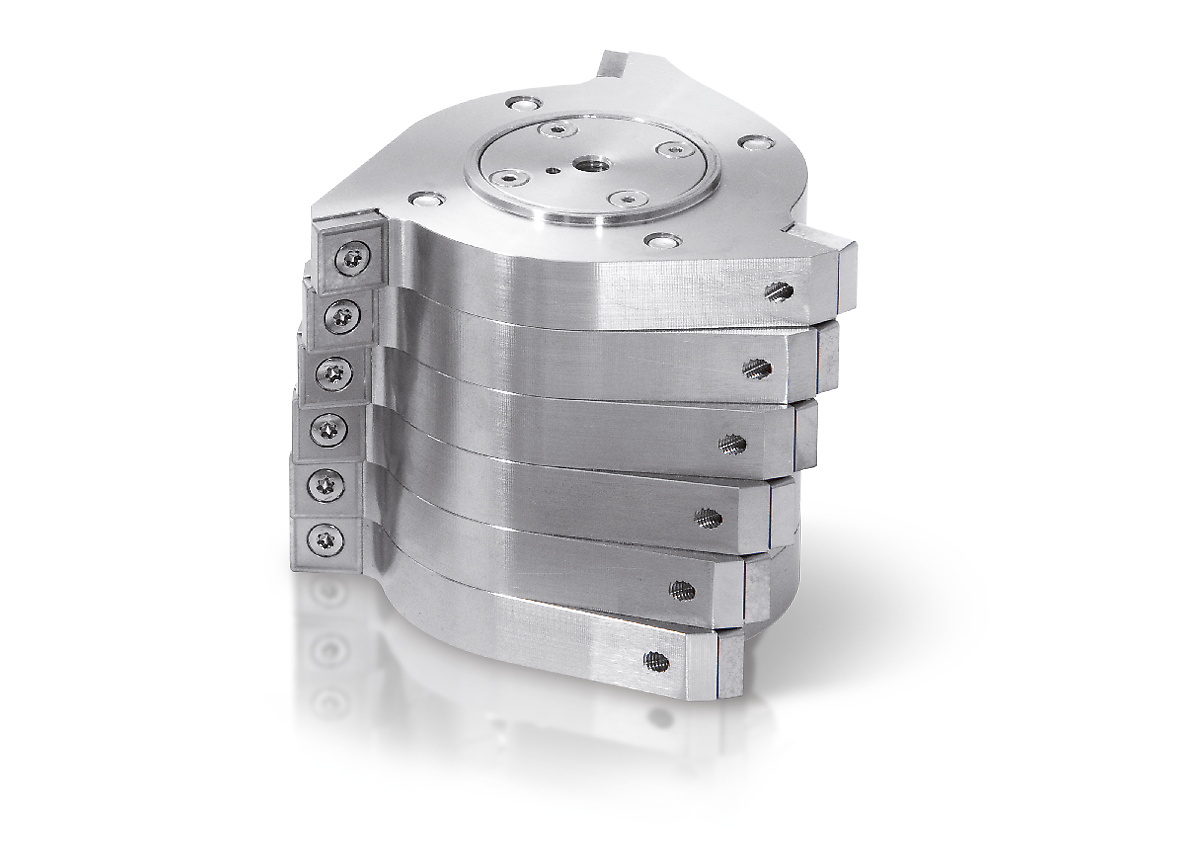

In the 6-disc rotor, spirally arranged reversible hard metal plates operate by cutting in sequence.
The knives of the parallel section rotor carry out comminution with a powerful cutting action. An additional flywheel mass (RES technology) on the drive shaft produces the exceptional performance of the SM 300. Thanks to the variable speed from 700 to 3,000 min-1, the SM 300 can be easily adapted to different application requirements
Subject to technical modifications and errors
