Crushing Limestone and Clay

Limestone and clay are the primary raw materials used in cement production. For quality control and process optimization, these materials must be homogenized before analysis. Crushing limestone is typically the first step, as it determines downstream grinding efficiency and final fineness. When selecting suitable equipment, key parameters include the sample quantity, initial particle size, and target fineness. Jaw crushers are commonly used for pre crushing limestone and clay. A wide range of jaw crusher models allows optimal adaptation to varying sample characteristics, from small laboratory batches for example in the BB 50 to larger sample quantities up to 3.5 t/h in the BB 600. Alternatively, hammer mills can be used, as crushing limestone and clay is generally not too hard for this type of mill.

Hammer mills such as the HM 200 can also be used, since the crushing of limestone and clay generally does not involve extremely hard materials.

Subsequent fine grinding to particle sizes below 40 µm is typically performed in ball mills. Here, cement grinding principles already apply at laboratory scale, with sample quantity being the decisive factor for selecting the appropriate mill. From a few milliliter up to kilogram scale samples, suitable solutions are available for efficient and reproducible grinding.

Rotor beater mills such as the SR 300 can also be used for crushing limestone and clay samples. They accept feed sizes of up to 25 mm and achieve final fineness values of around 100 µm, while processing significantly larger sample quantities compared to planetary ball mills. Drum mills like the TM 300 are likewise capable of handling larger volumes, but require considerably more time to reach the fineness range of 100–300 µm.

Limestone samples

Clay samples

Grinding Cement, Clinker and Concrete

Cement clinker formed after sintering is significantly harder and more abrasive than limestone or clay. In principle, the same mills and considerations apply as for crushing limestone and clay, and jaw crushers are typically used also for pre crushing.

From the range of rotor mills, the cross beater mill SK 300 is suitable for the next fine grinding step, as it is designed for harder, abrasive materials. With interchangeable tungsten carbide baffle plates and toothed grinding chamber inserts, it is ideal for crushing cement clinker. In this way, 1 kg of pre crushed sample (5 mm) can be reduced to approximately 200 µm in just 1 minute. If finer final fineness is required, ball mills such as the PM 400 are used. The PM 400 achieves 80 µm in 15 minutes.

The best of both worlds - speed combined with high fineness - is offered by a disc mill for crushing clinker samples. This is why a combination of a jaw crusher followed by a disc mill RS 200 or RS 300 is the classic setup for cement grinding. The RS 300 can grind the amount of one kilogram to below 100 µm in about 4 minutes. The RS 200 is designed for smaller sample quantities up to 250 ml and is generally even faster than the RS 300.

Clinker samples

^{Pre crushing in the jaw crusher to 5 mm, fine grinding in the RS 300 to 200 µm. The total process time for 1 kg was 4 minutes.}
The same considerations as for clinker crushing apply to the cement grinding or concrete samples. However, for fine grinding, ball mills or disc mills (RS 200, RS 300 or DM 200) are most used.

Concrete samples

Additive Gypsum

Compared to clinker, gypsum exhibits much softer material properties, which simplifies crushing and homogenization in the laboratory. However, gypsum tends to form agglomerates, which can complicate fine grinding during cement grinding preparation. The classic approach for gypsum samples is therefore pre crushing in a jaw crusher, followed by a rotor mill such as the cross beater mill SK 300, the hammer mill HM 200 or the ultra-centrifugal mill ZM 300. Drying the samples before grinding for example in the TG 200 is recommended to prevent agglomeration even in rotor mills. The use of cyclone modules is also helpful, as they facilitate sample discharge. In the ZM 300, distance sieves are preferred for gypsum samples. In many cases, the use of jaw crushers can be avoided if the samples are first ground with a very coarse sieve in the ZM 300 or HM 200, and then finally homogenized in the fine grinding step using a finer sieve.

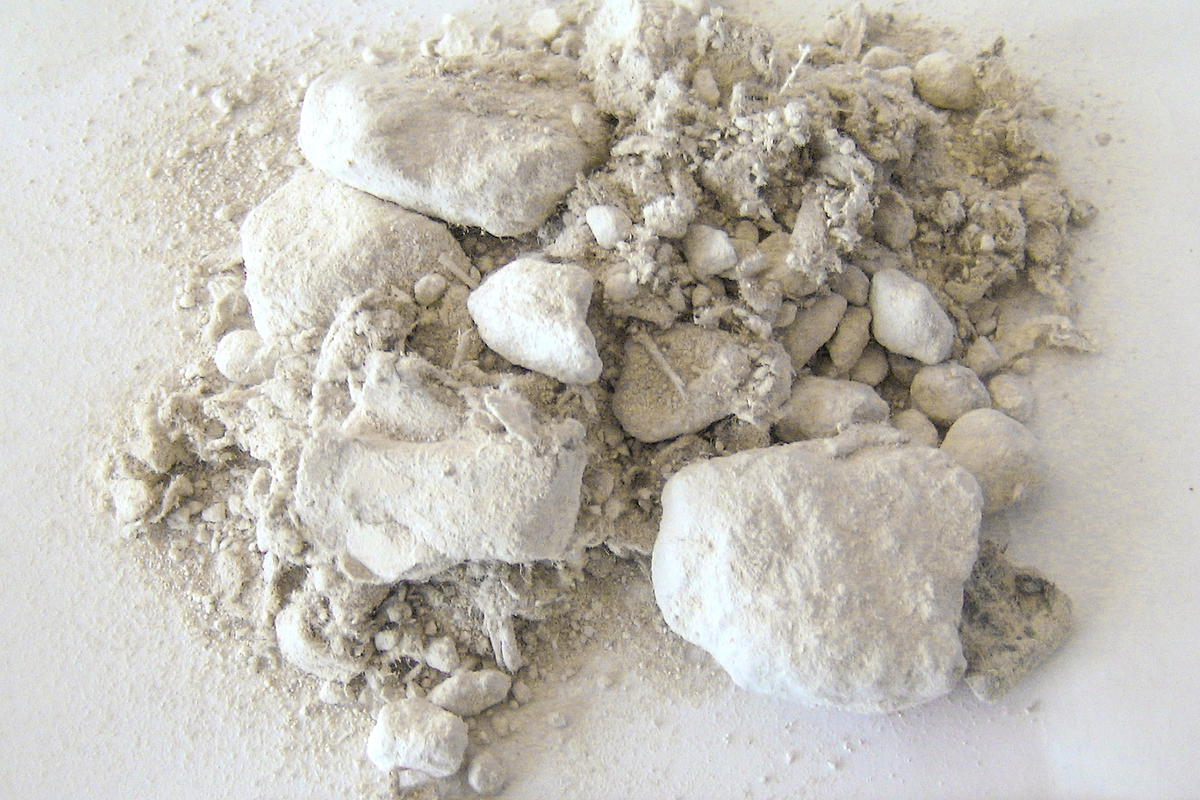

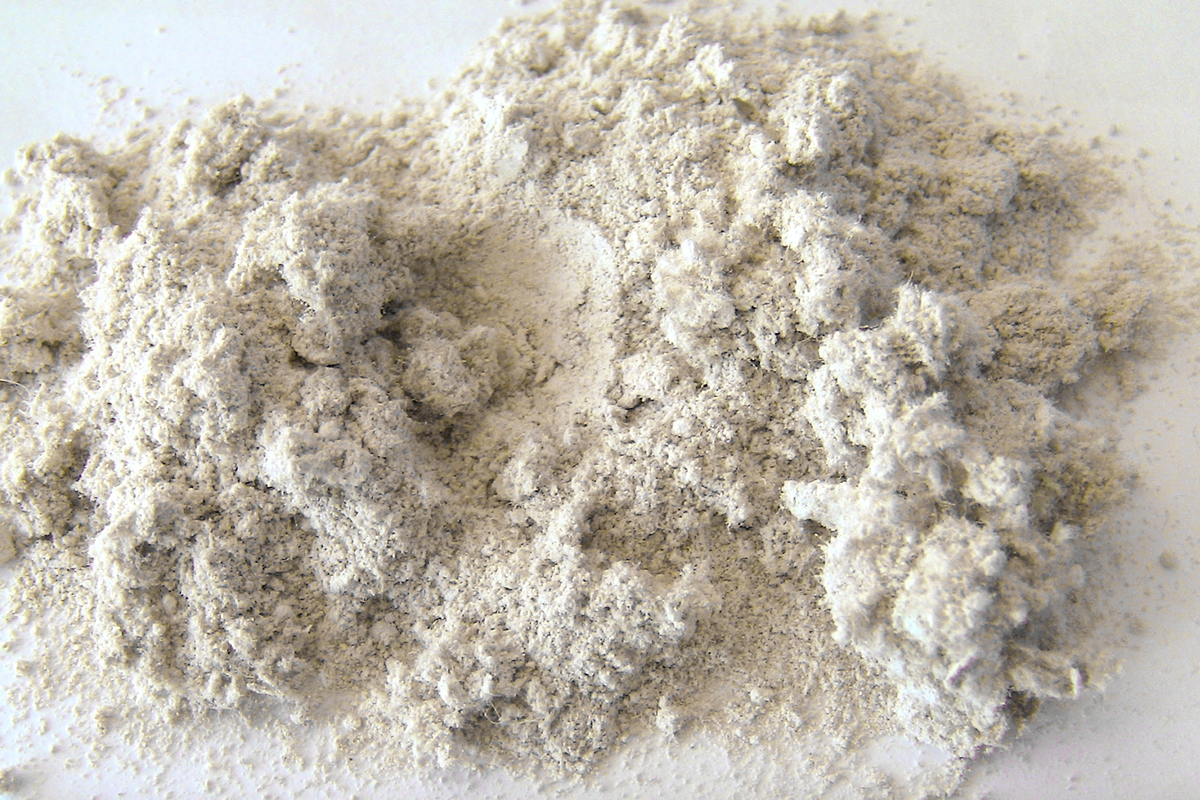

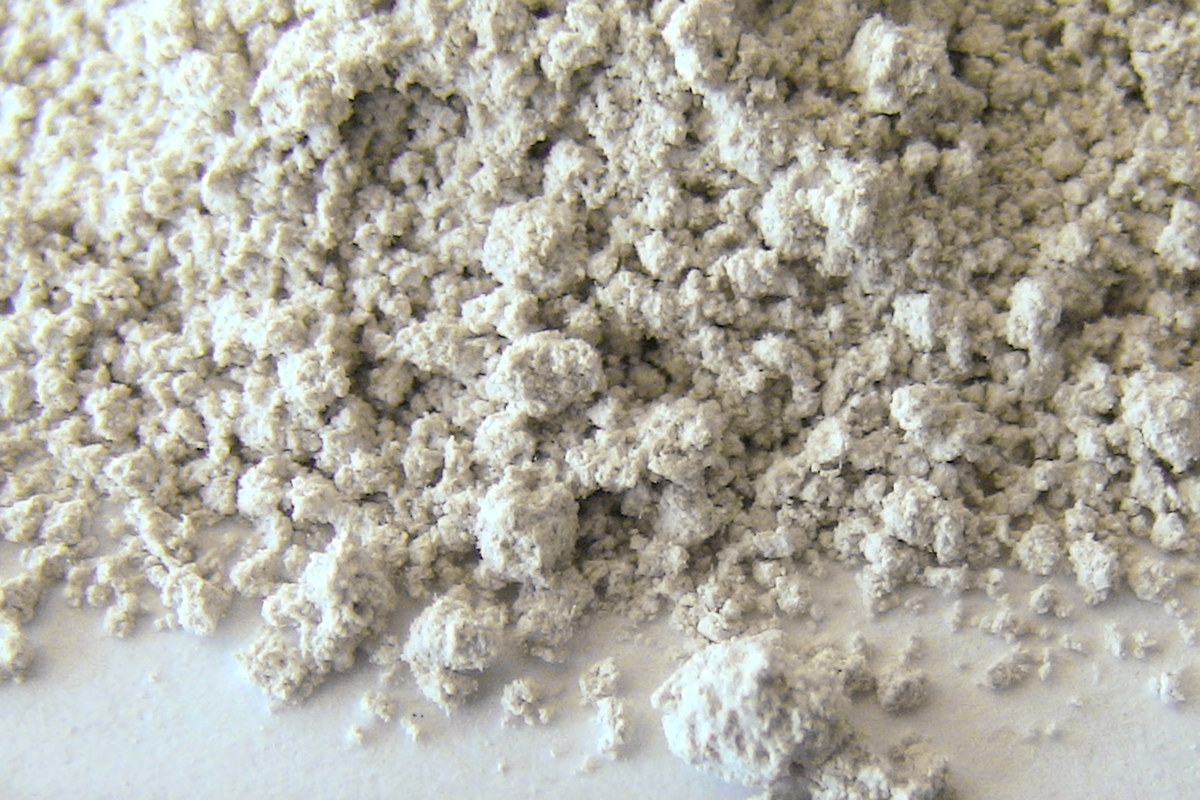

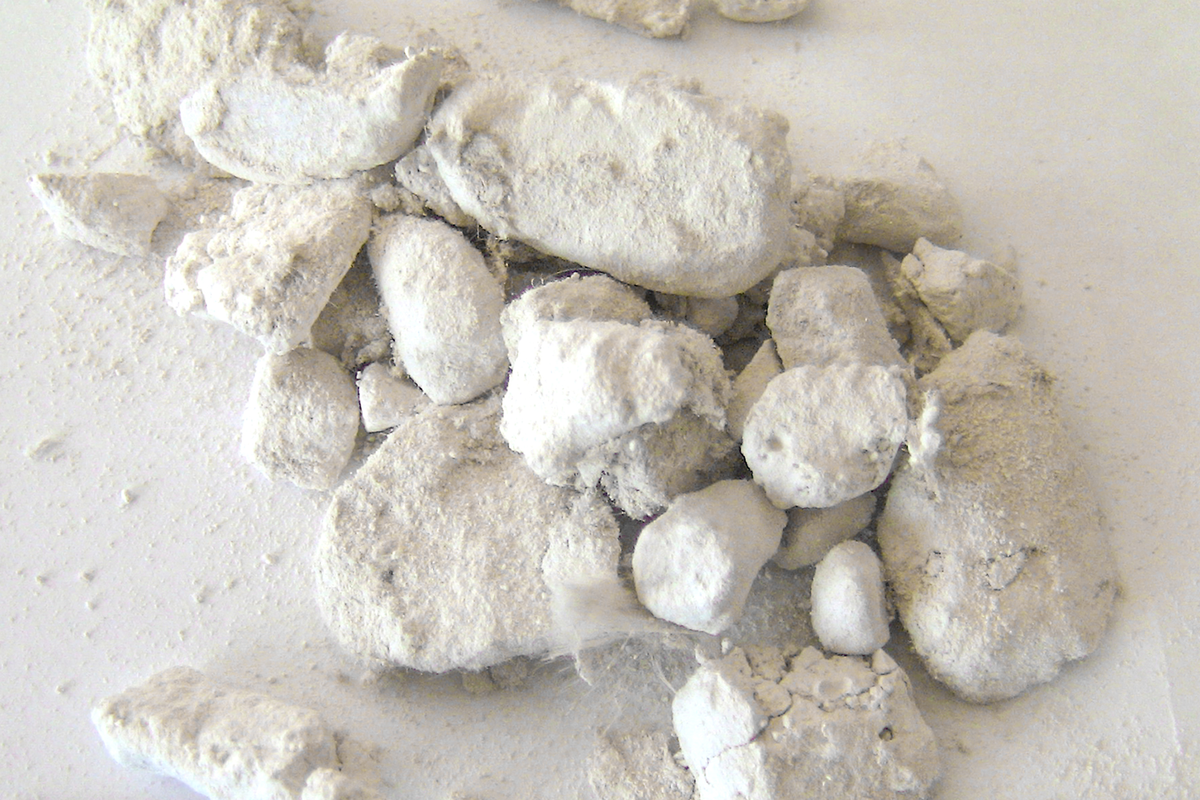

Gypsum samples

Recycling gypsum

Drying the samples in the TG 200 makes the sample homogenization easier.

Образец 1: 10 mm, 0,3 kg

Образец 2: 10 mm, 0,3 kg

15 мин | < 80 мкм
