With the Vibratory Sieve Shaker AS 450 control RETSCH have designed their first 3-D shaker for 400 mm and 450 mm sieves. It can be used for dry and wet sieving of sample amounts of up to 25 kg. The AS 450 control combines the benefits of electromagnetic sieving – controlled amplitude with highest reproducibility – with the powerful drive based on CET technology (Continuous Energy Transfer).

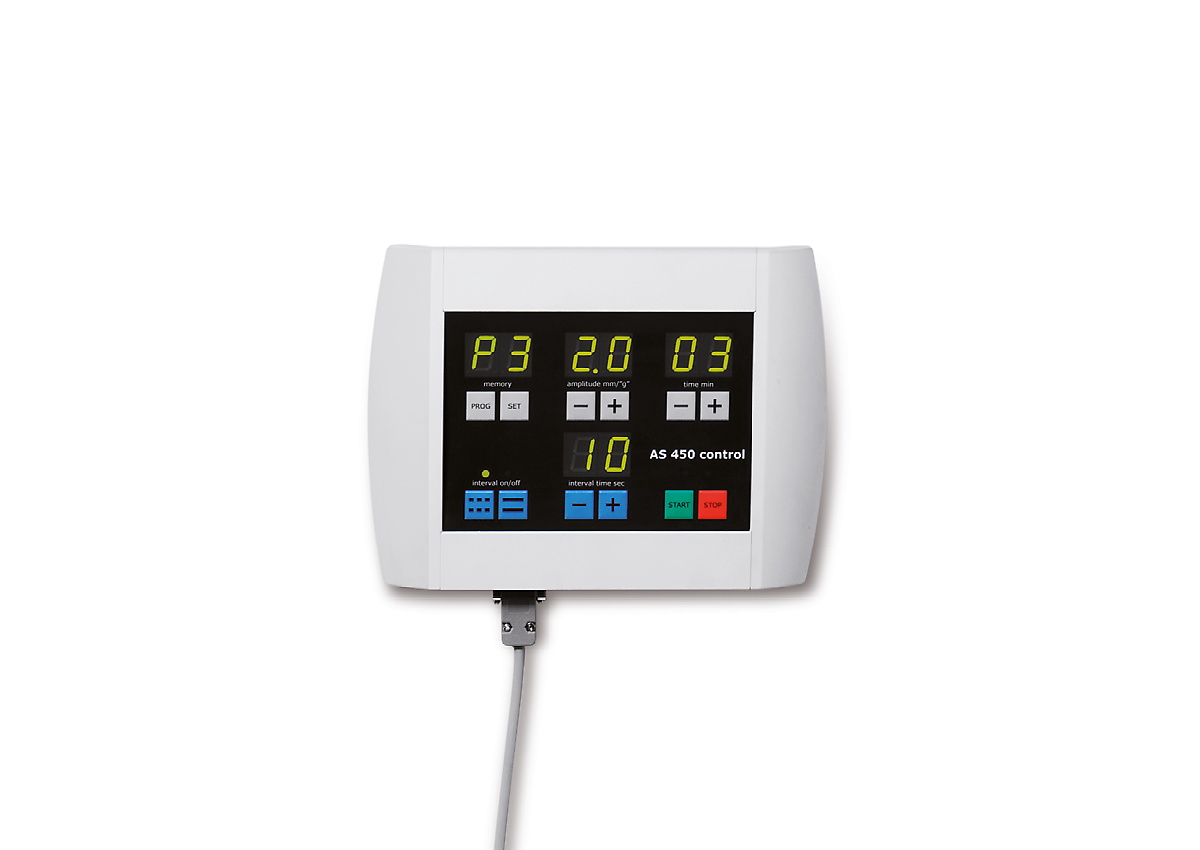

Even with high loads a constant vibration height of 2.2 mm and, as a result, high separation efficiency are achieved thanks to the continuous controlled energy input. Manual re-sieving is no longer required. When it comes to operating comfort, the AS 450 control meets all the requirements of a modern laboratory. All parameters such as amplitude, time and interval are digitally set, displayed and controlled via a remote operation panel
Accuracy & Efficiency
- Sieving with 3-D effect
- High sieve loads (up to 25 kg)
- Suitable for dry and wet sieving
- Measuring range 25 μm to 125 mm
- Sieve stack up to 963 mm, for sieves up to 450 mm Ø
- Memory for 9 Standard Operating Procedures (SOPs)
- With remote operation panel
- Sieve acceleration independent of power frequency
- Test materials monitoring according to DIN EN ISO 9001
Vibratory Sieve Shaker AS 450 control Wet sieving with Vibratory Sieve Shakers
There are many applications for which wet sieving is the best solution, e.g. when the material to be tested is a suspension or when a very fine sample (< 45 μm) that tends to agglomerate needs to be sieved. All vibratory sieve shakers from RETSCH can be used for wet sieving. There are special accessories like clamping lids with spray nozzle and collecting pans with outlet available. By placing RETSCH’s venting rings between the sieves, air cushions can expand without letting liquid or sample material escape.
Vibratory Sieve Shaker AS 450 control Accessories & Options
RETSCH's vibratory sieve shakers are ideally suited for separation, fractioning and particle size determination of cement clinker, chemicals, coal, coke, construction materials, fillers, minerals, ores, plastics, sand and soils.
- Clamping units
With the RETSCH clamping devices the sieves are clamped safely, quickly and conveniently on the sieve shaker. The clamping devices “comfort” are particularly user-friendly and timesaving.
- IQ/OQ Documents
We provide IQ/OQ documentation for the „control“ sieve shakers to support IQ/OQ certification by our customers.
- Accessories for test sieves
Collecting pans, intermediate pans, intermediate rings and sieve lids.
- Sample DividersMeaningful results can only be obtained if the sample represents the original material. Sample dividers produce representative part samples, thus ensuring reproducibility of the analysis.
- Accessories for wet sieving
Clamping lid with nozzle, collecting pans with outlet, venting rings.
- Ultrasonic baths and dryers
Suitable for thorough cleaning of test sieves and for quick, gentle drying of samples and sieves.
- Sieving Aids
Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).
RETSCH test sieves and accessories - Engineered for superior performance
EasySieve / EasySieve CFR Evaluation Software
EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11-conform version.
Vibratory Sieve Shaker AS 450 control Typical Sample Materials
RETSCH's vibratory sieve shakers are ideally suited for separation, fractioning and particle size determination of cement clinker, chemicals, coal, coke, construction materials, fillers, minerals, ores, plastics, sand and soils.
fertilizers
soil
cereals
construction materials
To find the best solution for your sample preparation task, visit our application database.
Vibratory Sieve Shaker AS 450 control Functional Principle
RETSCH has patented the Continous Energy Transfer Technology (CET Technology) on which the drive of the AS 450 control is based. The CET Technology provides a substantially higher energy input than the technology used in conventional sieve shakers. The AS 450 control achieves the highest amplitude even with maximum load which ensures optimum separation efficiency and high reproducibility.
The electromagnetic drive which lets the sieve stack vibrate continuously transfers its energy in a controlled way to the sieve plate, following the harmonic sinusoidal oscillation of alternating current.
The drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface. The advantage: high stress capacity, extremely smooth operation and short sieving times with high separation efficiency.
Vibratory Sieve Shaker AS 450 control Technical Data
| Applications | separation, fractioning, particle size determination |
|---|---|
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | powders, bulk materials, suspensions |
| Measuring range | 25 µm - 125 mm |
| Sieving motion | throwing motion with angular momentum - 3D movement |
| Max. batch / feed capacity | 25 kg |
| Max. number of fractions | 13 / 9 (min. 3)* |
| Max. mass of sieve stack | 50 kg |
| Amplitude | digital, 0.2 - > 2.2 mm |
| Sieve acceleration | 1 -> 7.1 g |
| Time display | digital, 1 - 99 min |
| Interval operation | 10 - 99 s |
| Storable SOPs | 9 |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | yes |
| Serial interface | yes |
| Suitable sieve diameters | 400 mm / 450 mm |
| Max. height of sieve stack | 963 mm |
| Clamping devices | standard, "comfort", each for wet and dry sieving |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| W x H x D | 705 x 440 x 635 mm |
| Net weight | ~ 220 kg |
| Standards | CE Complies with the requirements of the European Pharmacopoeia 2.9.12 and 2.9.38 |
