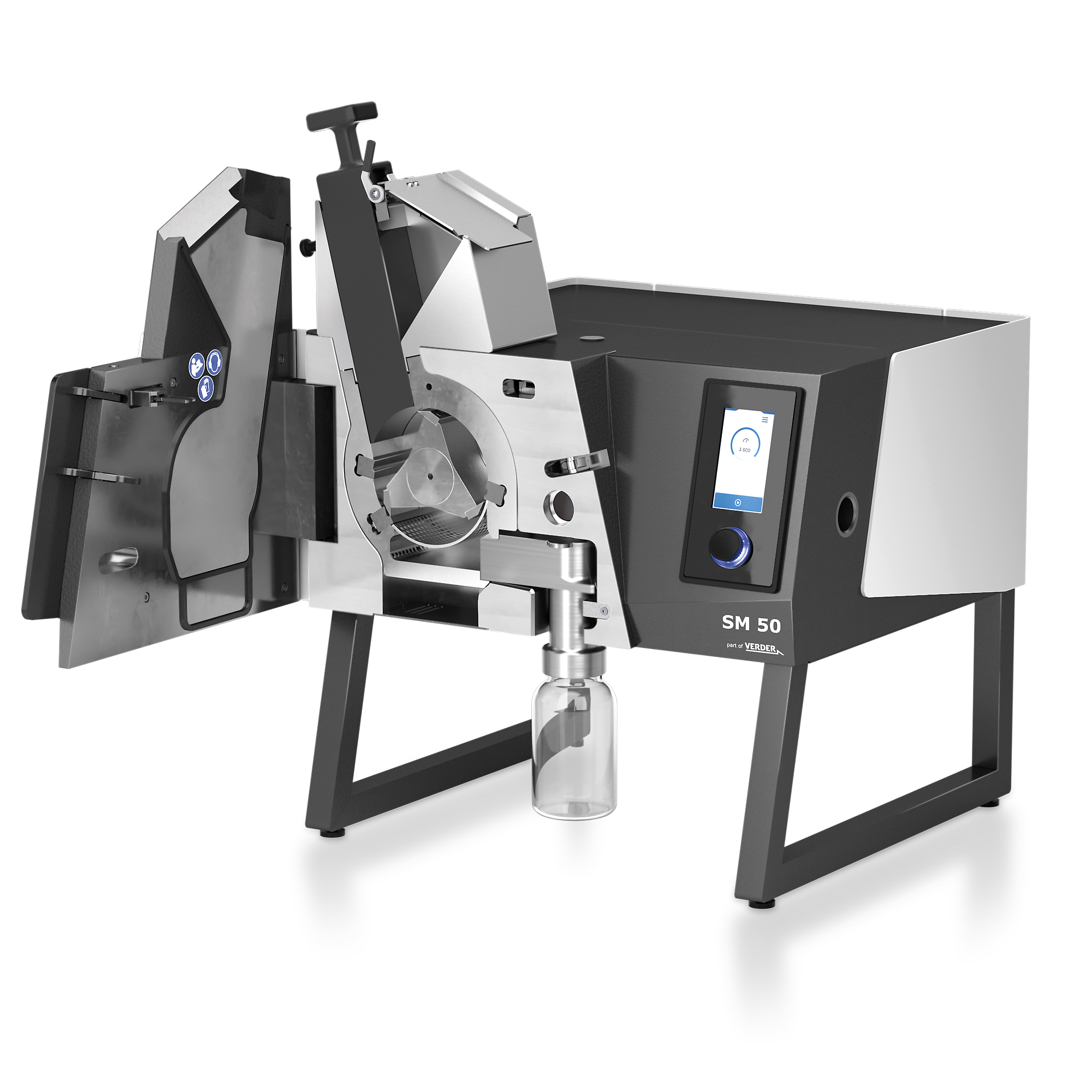

Cutting Mill SM 50 (please order milling chamber set, rotor, hopper and bottom sieve seperately)
20.720.0001
SM 50
200-230V 50/60Hz, with frequency converter for variable speed
20.720.0003
SM 50
110V 50/60Hz, with frequency converter for variable speed
Milling Chamber Sets SM 50
Consisting of milling chamber, double acting cutting bars, door insert and 500 ml glass bottle / receptacle
22.010.0003
For standard applications: Aluminum milling chamber with stainless steel double acting cutting bars, stainless steel cyclone, stainless steel door insert, and 500 ml glass bottle
22.010.0004
For abrasion and corrosion resistant applications: Stainless steel milling chamber with stainless steel double acting cutting bars, stainless steel cyclone, stainless steel door insert, and 500 ml glass bottle
22.010.0005
For grinding without heavy metal contamination: Aluminum milling chamber with steel 1.1740 double acting cutting bars, stainless steel cyclone, heavy metal free steel door insert, and 500 ml glass bottle
22.010.0006
For grinding without cyclone: Aluminium gravitiy chamber with stainless steel double acting cutting bars, stainless steel door insert, adapter incl. stainless steel 3 l receptacle
Rotors SM 50
22.608.0041
3-disc rotor made of stainless steel with reversable cutting tips made of tungsten carbide
22.608.0042
3-disc rotor made of steel 1.0570 with reversable cutting tips made of tungsten carbide, for grinding without heavy-metal contamination
22.608.0039
Parallel-section rotor made of stainless steel with cutting plates made of stainless steel
22.608.0040
Parallel-section rotor made of steel 1.0570 with cutting plates made of steel 1.1740, for grinding without heavy-metal contamination
Hopper SM 50
22.785.0011
EasyInspect hopper made of stainless steel with PE plunger

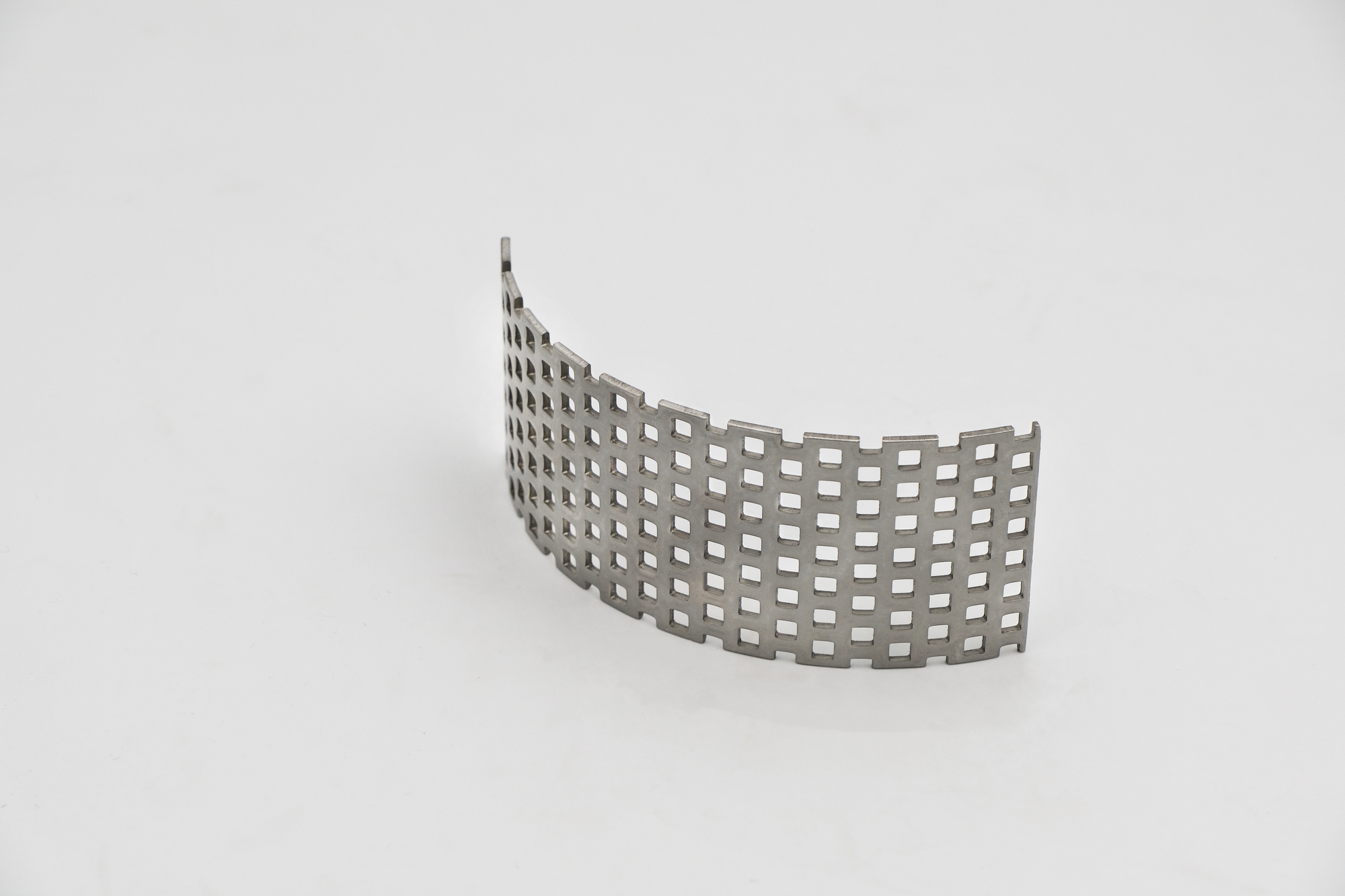

Bottom Sieves SM 50
Bottom sieves made of stainless steel 1.4404
03.647.0574

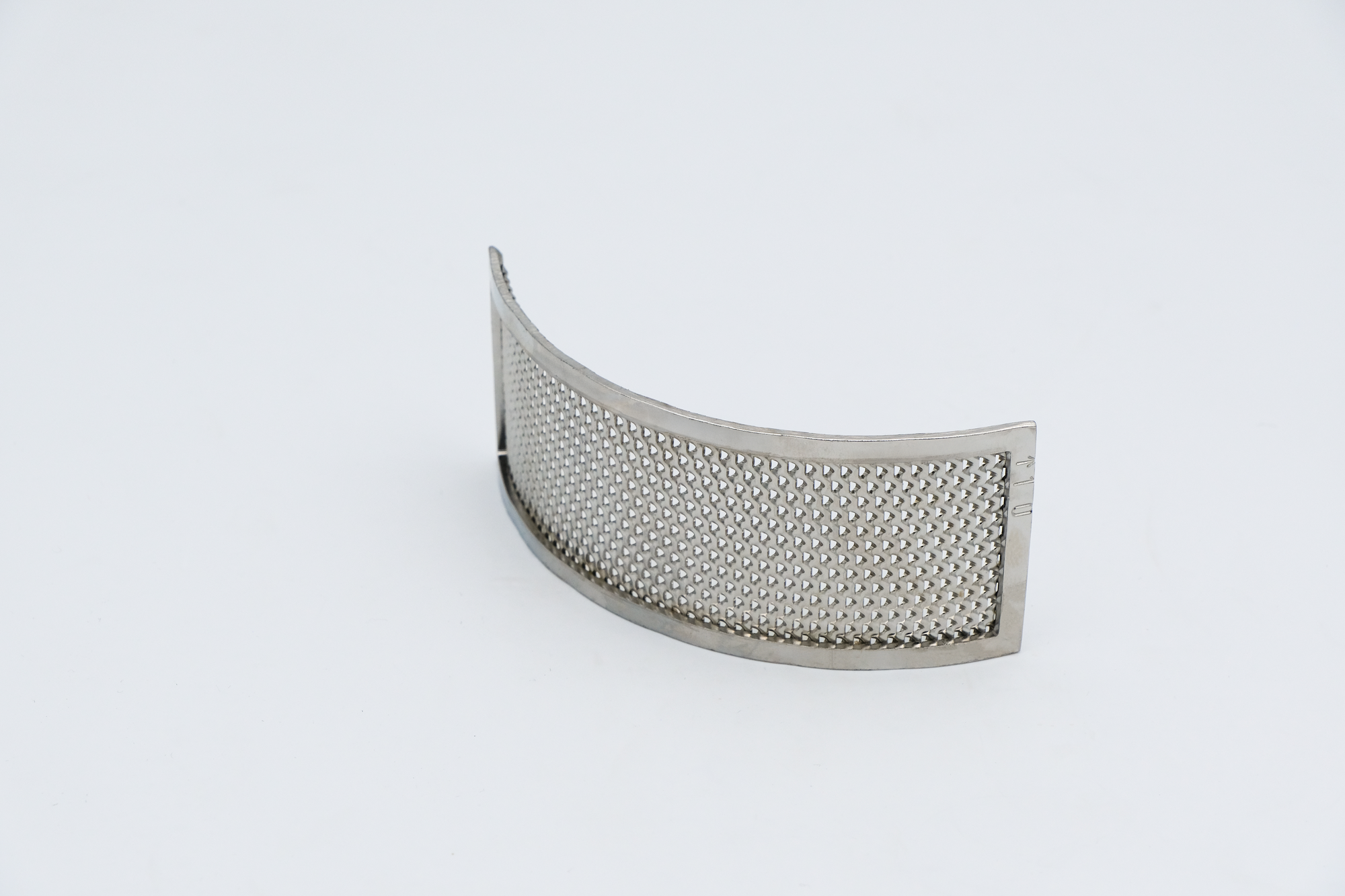

마름모형 공극, 0.25 mm
03.647.0575

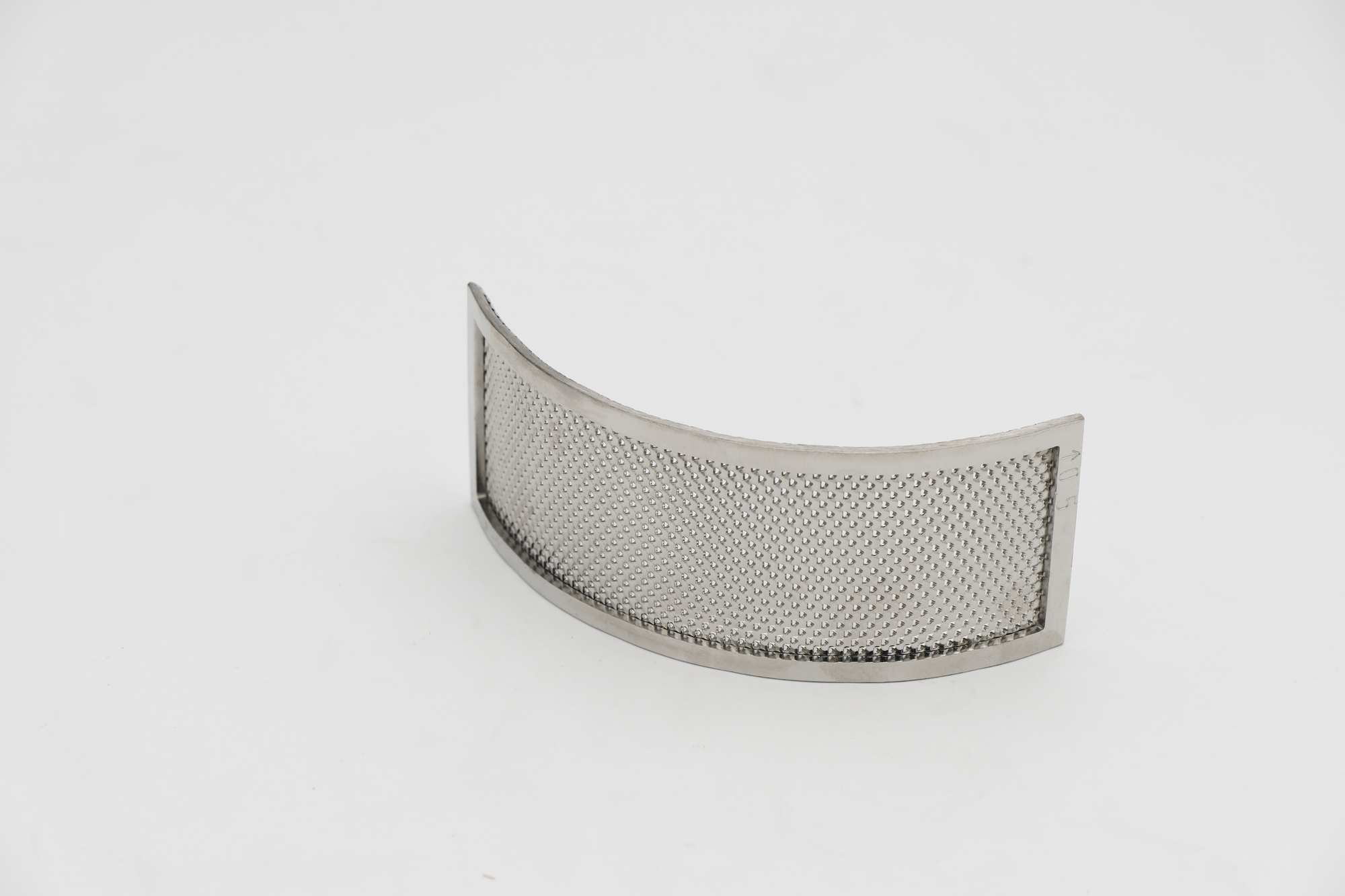

마름모형 공극, 0.5 mm
03.647.0576

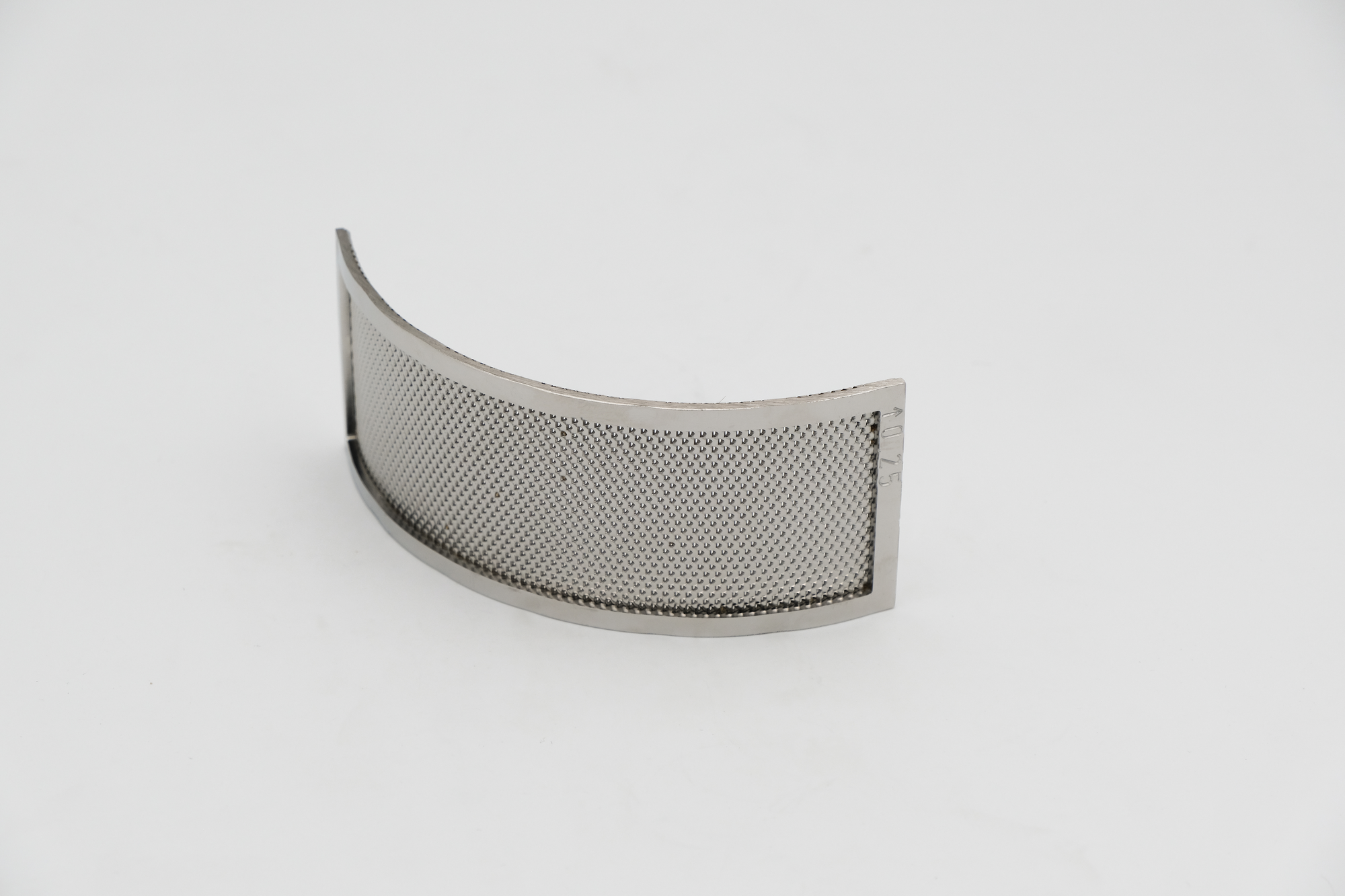

마름모형 공극, 0.75 mm
03.647.0577
마름모형 공극, 1.00 mm
03.647.0578

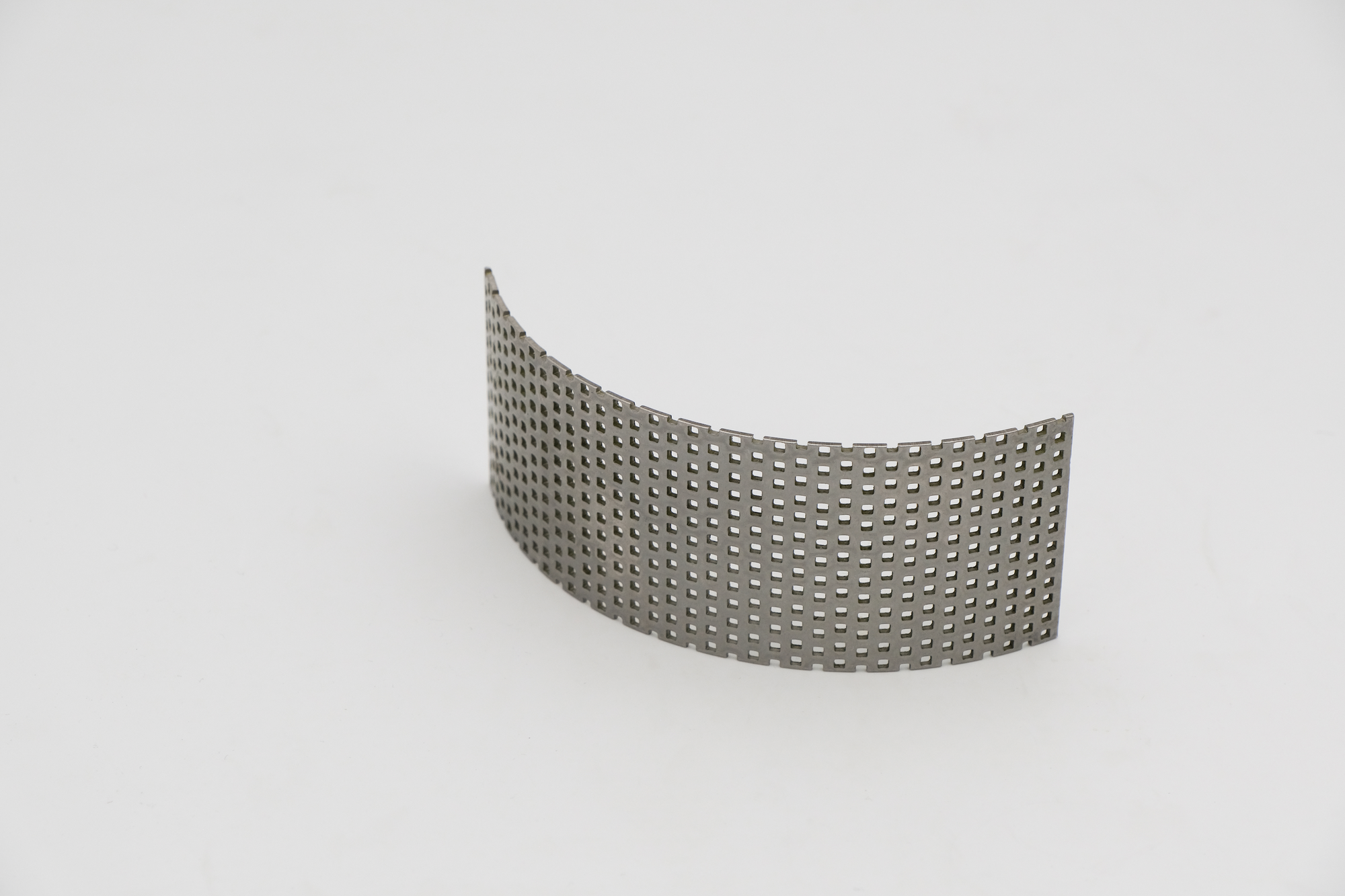

사각형 공극, 2.00 mm
03.647.0579

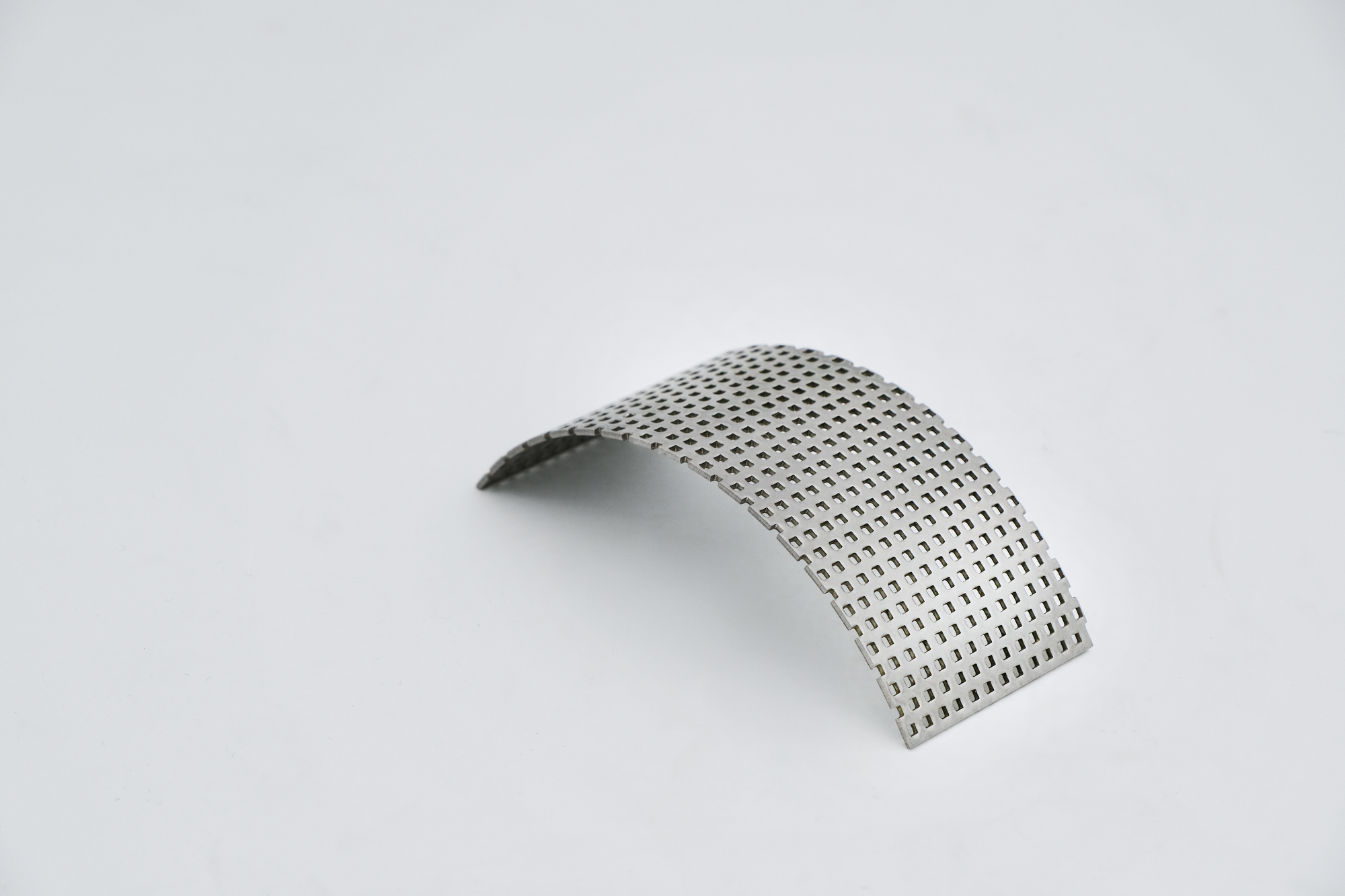

사각형 공극, 4.00 mm
03.647.0580
사각형 공극, 6.00 mm
03.647.0581
사각형 공극, 8.00 mm
03.647.0582

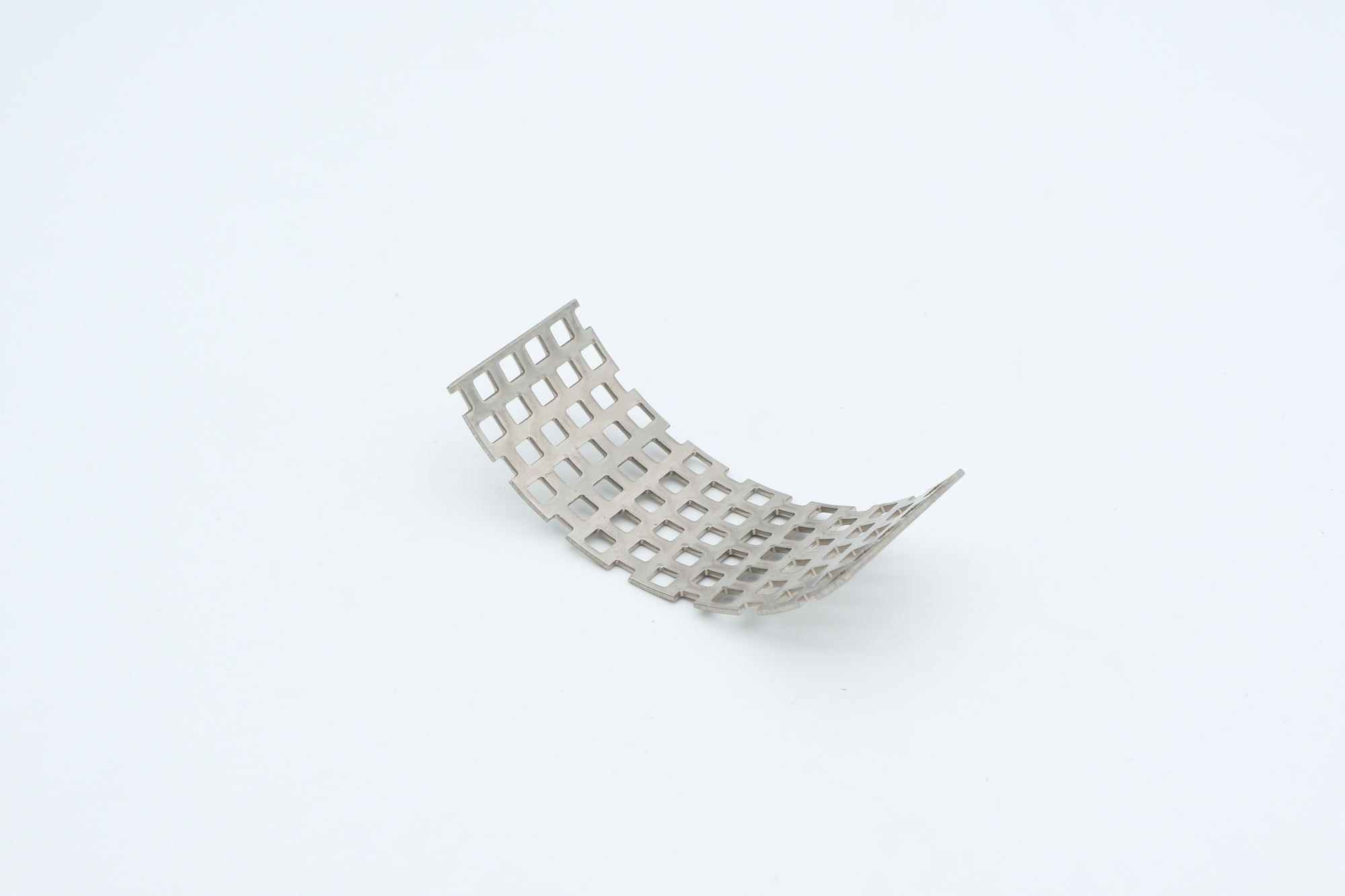

사각형 공극, 10.00 mm
22.647.0001
Bottom sieves made of stainless steel complete set of 9 bottom sieves 0.25 - 10 mm
Bottom sieves made of steel 1.0353 for grinding without heavy-metal contamination
03.647.0583
마름모형 공극, 0.25 mm
03.647.0584
마름모형 공극, 0.5 mm
03.647.0585
마름모형 공극, 0.75 mm
03.647.0586
마름모형 공극, 1.00 mm
03.647.0587
사각형 공극, 2.00 mm
03.647.0588
사각형 공극, 4.00 mm
03.647.0589
사각형 공극, 6.00 mm
03.647.0590
사각형 공극, 8.00 mm
03.647.0591
사각형 공극, 10.00 mm
22.647.0002
Bottom sieves made of steel 1.0353 complete set of 9 bottom sieves 0.25 - 10 mm
Accessories SM 50
회수 용기
22.523.0001
Sample bottle 250 ml (10 pcs.)
22.523.0002
Sample bottle 500 ml (10 pcs.)
02.107.0493
Lid for collecting receptacle cyclone 3l (only for cyclone)
02.011.0031

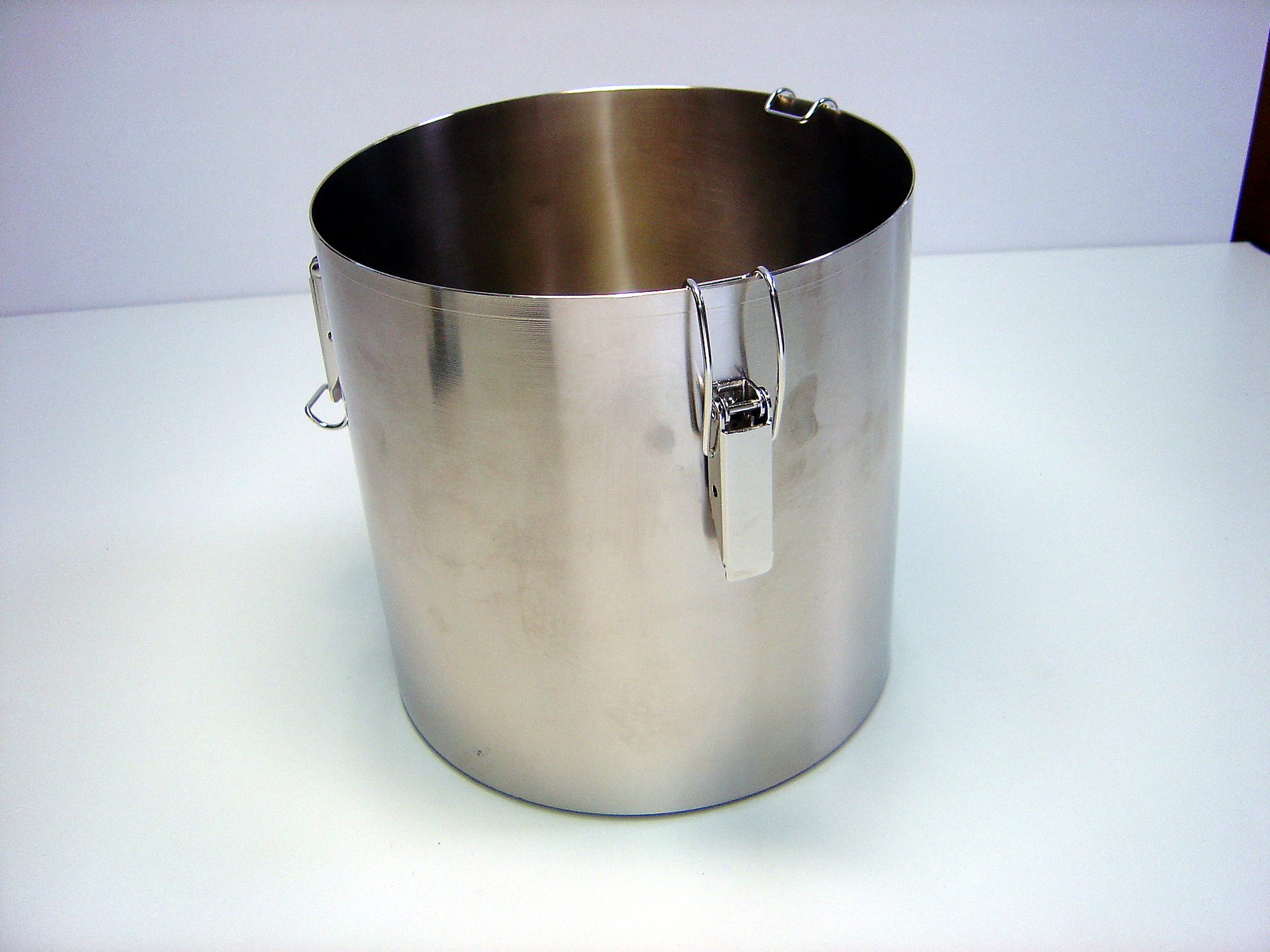

Collecting receptacle 3 litres, stainless steel (for grinding with or without cyclone)
02.183.0146
Adapter for collecting receptacle 3l and 5l (only for SM 50 gravity outlet)
02.011.0029
Collecting receptacle 5 litres, stainless steel (only for SM 50 gravity outlet)
Milling chambers
22.010.0007
Milling chamber for cyclone made of aluminium with stainless steel double acting cutting bars for standard grinding applications (A)
22.010.0008
Milling chamber for cyclone made of aluminium with steel 1.1740 double acting cutting bars for grinding without heavy metal contamination (A)
22.010.0009
Milling chamber for cyclone made of stainless steel with stainless steel double acting cutting bars for corrosion resistant applications (A)
22.010.0010
Milling chamber for gravity use made of aluminium with stainless steel double acting cutting bars (B)
22.730.0004
Door insert made of heavy metal free steel 1.0570
22.730.0003
Door insert made of stainless steel
Stationary cutting bars for milling chambers
22.152.0012
Double acting cutting bars made of stainless steel (3 pcs.) for SM 50
22.152.0013
Double acting cutting bars made of steel 1.1740 (3 pcs.) for grinding without heavy metal contamination
22.608.0043
Adjustment tool for double acting cutting bars
Accessories for rotors
05.908.0001
Reversible cutting tips made of tungsten carbide for 3-disc (10 pcs.)
22.151.0010
Cutting plates made of stainless steel for parallel section rotors (3 pcs.)
22.151.0011
Cutting plates made of steel 1.1740 for parallel section rotors (3 pcs.)
Cyclones
22.935.0040
Cyclone made of stainless steel
22.748.0005
Industrial vacuum cleaner for mills, 230 V, 50/ 60 Hz (other electrical versions and spare filter bags available upon request)
