Achieve optimal ball milling processes with GrindControl
The GrindControl system continuously measures and records the pressure and temperature inside the grinding jar. This gives users clear insight into the milling process and ensures reliable, reproducible conditions. By monitoring these key variables, sample preparation becomes more efficient, temperature sensitive materials are protected, and stable conditions for colloidal or long term grinding are maintained.
GrindControl also supports demanding applications such as mechanical alloying and mechanochemical synthesis by enabling precise process control.
GrindControl is available for the Mixer Mills MM 500 nano/control, the High Energy Ball Mill Emax, and planetary ball mills. It consists of a hardware measurement unit and analysis software.
Monitoring temperature and pressure during grinding is essential for both research and quality control.
It helps to improve:
Quality: Temperature strongly influences material properties. Monitoring ensures consistent sample quality.
Efficiency: Temperature and pressure significantly influence the grinding outcomes of many materials, as well as the results of mechanochemical processes. Real-time monitoring enables precise control of operating conditions.
Safety: High temperatures and pressures can pose risks. Monitoring keeps the process within safe limits.
Mechanochemical insights / Error detection: Sudden changes in temperature or pressure may indicate chemical reactions or process deviations. Continuous monitoring enables early detection, better understanding of mechanochemical processes, and quick troubleshooting.
The GrindControl system is available for the Planetary Ball Mills, the Mixer mills MM500 nano/control, and Emax. It includes hardware for pressure and temperature measurement plus analysis software.
グラインドコントロールのソフトウェアは、小型で直感的なプログラムであり、コンピューターに簡単にインストールすることができます。このソフトウェアは、送信された圧力と温度のデータを記録し、保存します。データは測定中にリアルタイムでモニターされ、測定後に.pdfまたは.csvフォーマットでエクスポートすることが可能です。
その他のソフトウェアの特徴：
Monitoring pressure and temperature provides valuable insight into what happens inside the grinding jar. GrindControl is widely used to investigate material syntheses such as mechanical alloying and other mechanochemical reactions.
A mechanochemical synthesis was performed in an MM 500 nano using a 125 ml stainless steel jar with GrindControl. The reactants and 32 × 10 mm balls were milled at 20 Hz under air.
After about 20 seconds of milling, an ignition event occurred, leading to a pressure increase to approx. 730 mbar and a temperature rise. GrindControl captured the ignition point precisely – the key parameter for this self-propagating mechanochemical synthesis reaction (MSR). [7]
When processing temperature sensitive materials (e.g., APIs, vitamins, volatile compounds), it is crucial to avoid for example exceeding 30 °C. GrindControl ensures safe homogenization without thermal degradation.
In wet grinding, long grinding times and high energy input cause significant heat and with temperature often pressure builds up, especially when solvents like alcohols are used. Monitoring both parameters, temperature and pressure increases safety and simplifies the optimal setting of grinding breaks.
ボールミルを使って化学反応を行う場合、最終製品に望ましい特性を持たせるためには、特定の温度や圧力条件が必要となります。圧力や温度の測定は、特定の反応が起こる条件を調べるために使用することができます。
温度制御による錠剤のサンプル調製
湿式粉砕プロセスにおける温度と圧力のモニタリング
メカノケミカル反応における温度モニタリング
詳細なデータをご希望の方は、アプリケーションデータベースをご覧ください

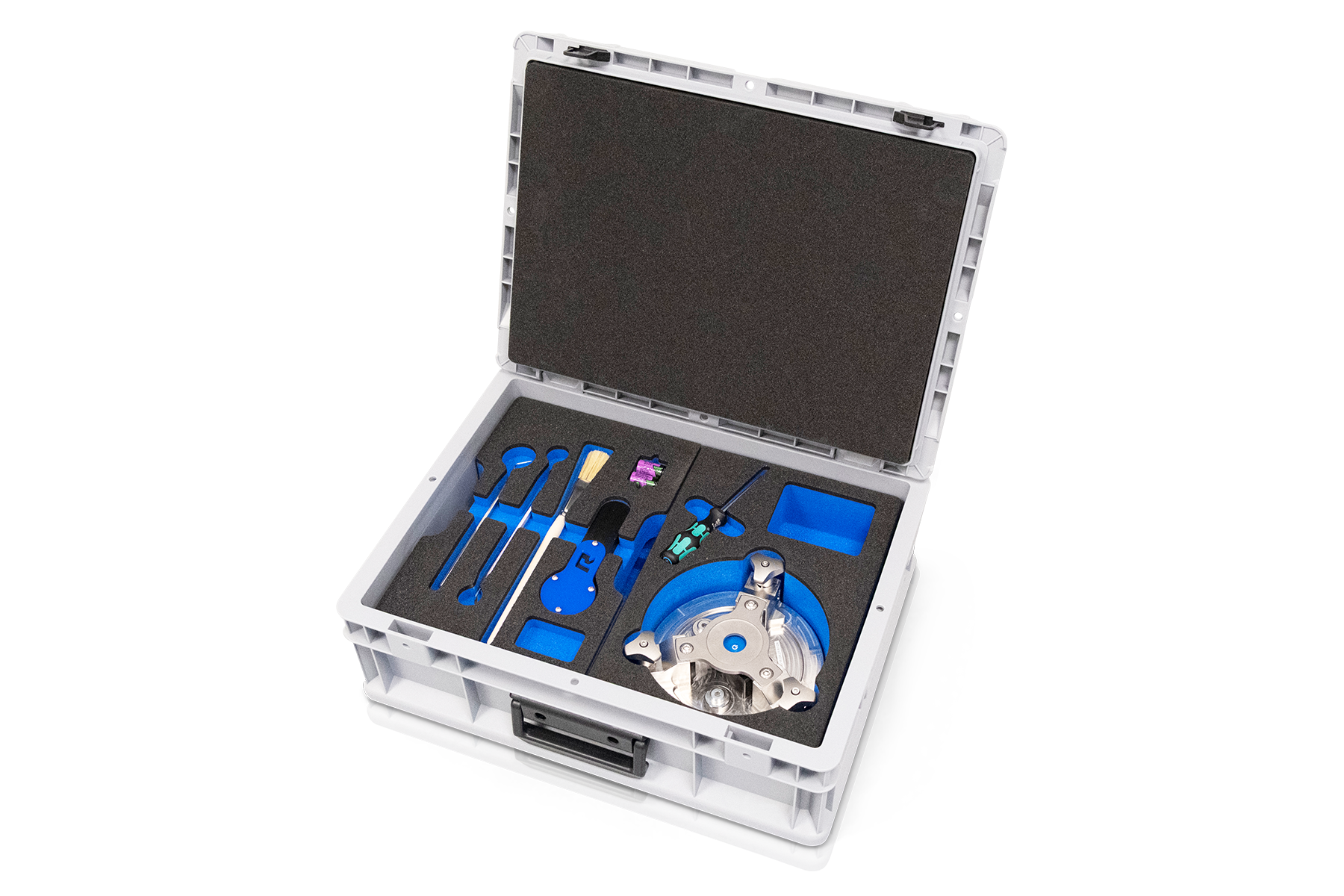

A Bluetooth transmitter integrated into electronic unit of the lid sends pressure and temperature data to the PC using a secure industrial protocol. A protective filter prevents contamination of the pressure sensor. The GrindControl software records all data in real time and stores them in a consecutive list. Measurements can be exported as .csv for further processing.
| 用途 | pressure and temperature measuring for Planetary Ball Mills, Emax and Mixer Mills MM 500 nano/control |
| 分野 | material synthesis, エンジニアリング / 電子工学, ガラス / セラミックス, バイオ, 化学/化成品, 地質学/ 冶金学、金属学, 建設材料, 環境/ リサイクリング, 薬 / 薬剤, 農業, 食品 |
| 内圧測定範囲 | gas pressure: 0 - 500 kPa (5 bar) temperature: -20°C - +100 °C |
| 試料容器容量 | 125 ml (MM); 50 ml & 500 ml (PM) |
| 乾式粉砕 | 準拠 |
| 湿式粉砕 | 準拠 |
| 凍結粉砕 | yes min. -20 °C |
| 粉砕ジャーの種類 | Screw-Lock (MM) and EasyFit jars (PM) |
| 粉砕セットの材質 | hardened stainless steel, 酸化ジルコニウム |
| 粉砕ジャーのサイズ | 125 ml (MM); 50 -500 ml (PM) |
| Transmission frequency | 5 /s |
| シリアル・インターフェイス | |
| 電圧 | battery (up to 90 h operation time) |
| アクセサリー： | opening aid, cleaning tools, o-ring, PC-software (PC not included), filter, (lid insert not included) |
| 本体重量 | lid with sensor unit 360 g (MM) 1780 g / 1140 g(PM) |
| 規格 | CE |
| Technical requirements | PC with Windows 11 and Bluetooth 5.0 or higher |
| Software | live monitoring of measurement data, full measurement protocol, storable templates, list of performed measurements, data export in .pdf and .csv |
