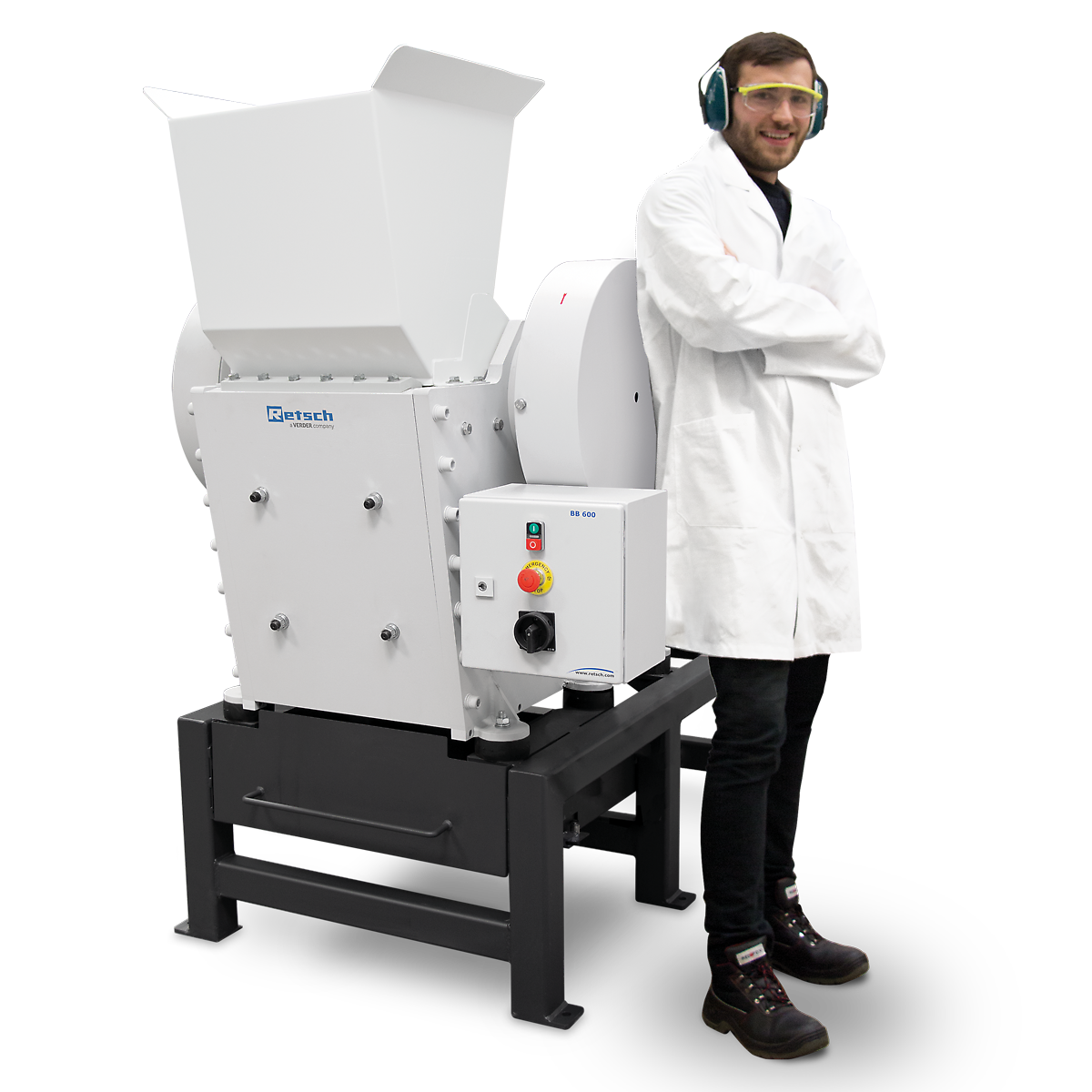

The Jaw Crusher BB 600 XL is used for rapid, effective, crushing and pre-crushing of medium-hard, hard, brittle and tough materials.
Due to the low installation height (1 m), the BB 600 XL is ideally suited for continuous operation in automatic installations and sampling stations. Thanks to the compact design of the BB 600 XL it may replace a jaw crusher in existing installations.
Small sample amounts with large particle sizes can be crushed batch-wise in the Jaw Crusher BB 600 XL.
alloys, basalt, cement clinker, ceramics, chamotte, coal, coke, construction materials, feldspar, glass, granite, minerals, ores, oxide ceramics, quartz, rocks, silicon, slag, ...
|Applications||coarse and pre-crushing|
|Field of application||chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics|
|Feed material||medium-hard, hard, brittle, tough|
|Size reduction principle||pressure|
|Material feed size*||< 350 x 170 mm|
|Final fineness*||< 6 mm|
|Material of grinding tools||manganese steel|
|Jaw width||400 x 240 mm|
|Gap width setting||6 - 60 mm with spacer plates|
|Dust extraction unit||yes|
|Process line version||optional|
|Collector capacity||30 l|
|Drive power||15 kW|
|Electrical supply data||different voltages|
|Protection code||IP 55|
|W x H x D closed||925 x 1600 x 1370 mm|
|Net weight||~ 1350 kg|
*depending on feed material and instrument configuration/settings
Subject to technical modifications and errors
