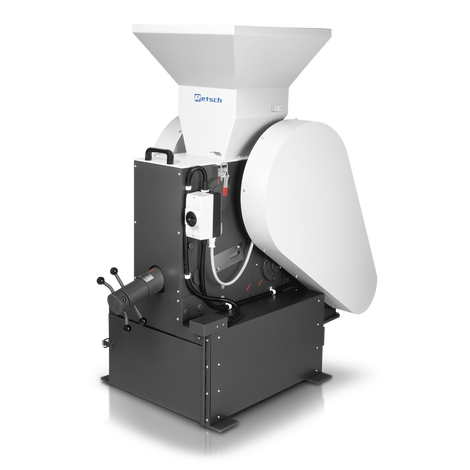

Jaw Crusher BB 300



The Jaw Crusher BB 300 is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered, including heavy-metal free steel and its efficiency and safety makes the BB 300 ideal for sample preparation in laboratories and industrial plants.

For small amounts of sample the Jaw Crusher BB 300 can be used batch-wise; for larger amounts it can be operated continuously. Control of the gap width and zero point adjustment allow for reproducible results. The Belleville spring washer protects the unit from overloads and in conjunction with the central lubrication guarantees a long service life.

Application Examples

alloys, basalt, cement clinker, ceramics, chamotte, coal, coke, construction materials, feldspar, glass, granite, minerals, ores, oxide ceramics, quartz, rocks, silicon, slag, ... continue to application database

Product Advantages

  • excellent crushing performance

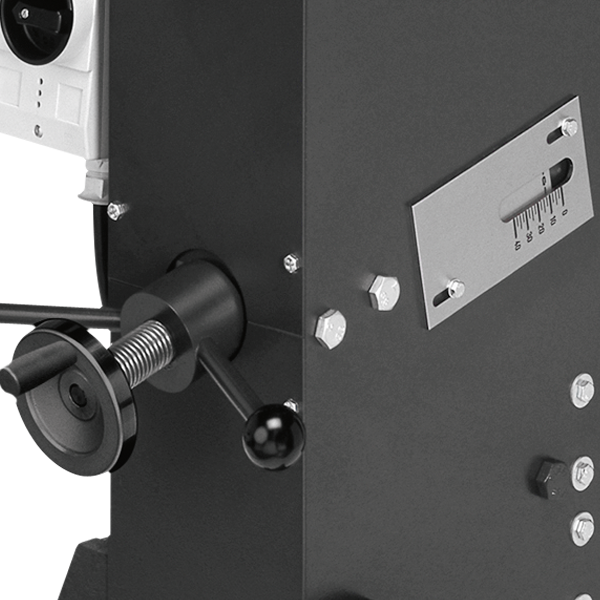

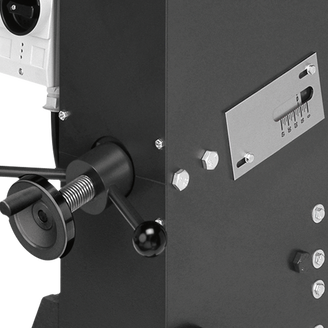

  • wear compensation with zero-point adjustment
  • infinitely gap width setting
  • overload protection
  • wide range of materials for contamination free grinding

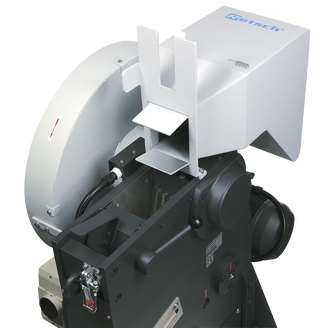

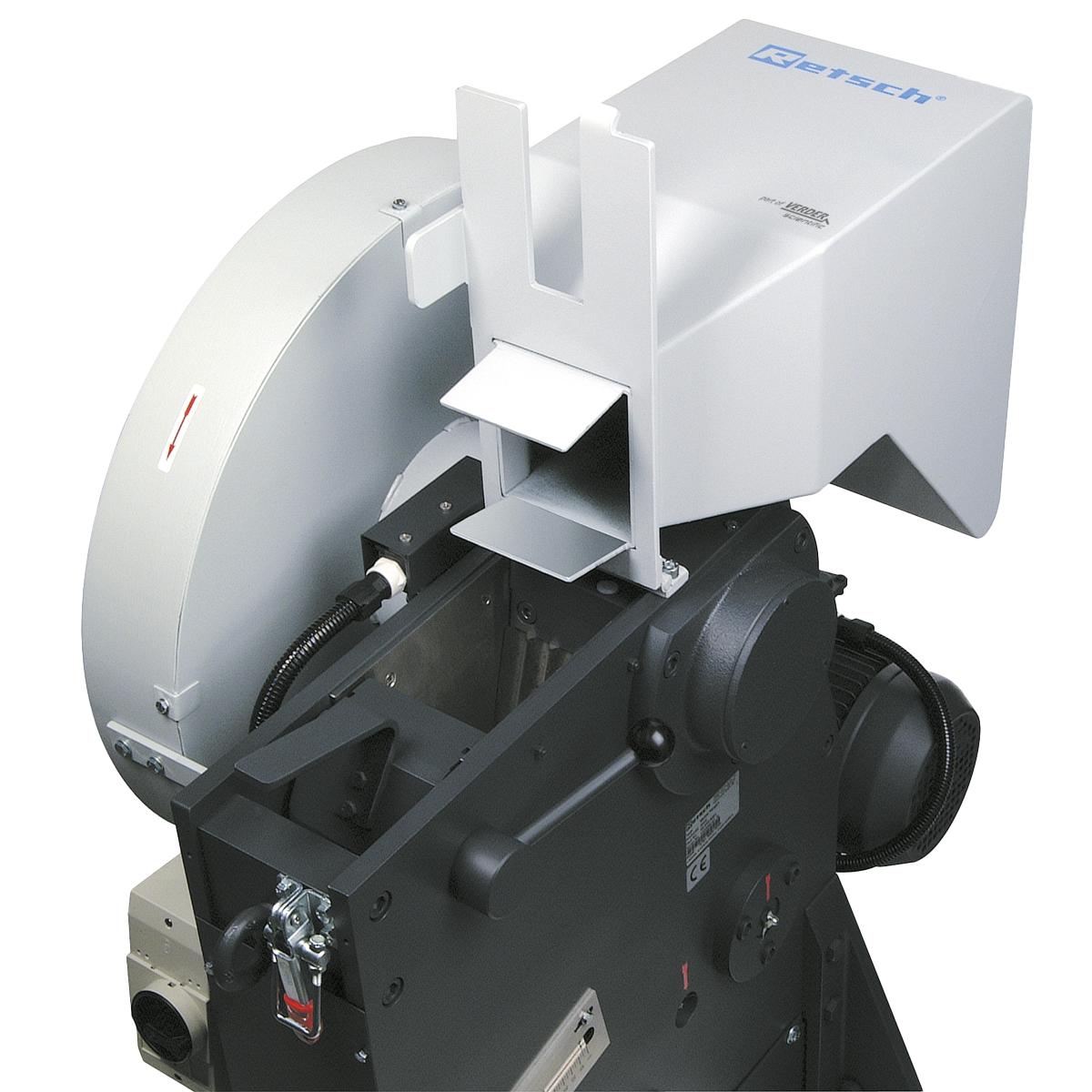

  • no-rebound feed hopper with quick-release clamp
  • brake motor with safety switch
  • easy-to-clean crushing chamber
  • connector for dust extraction
  • central lubrication
  • suitable for integration in automatic installations

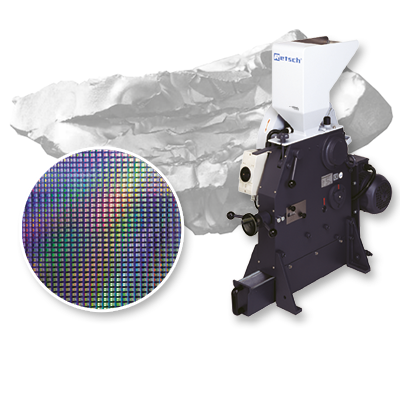

  • special version for grinding semi-conductor materials


Applications coarse and pre-crushing
Field of application chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics
Feed material medium-hard, hard, brittle, tough
Size reduction principle pressure
Material feed size* < 130 mm
Final fineness* < 5 mm

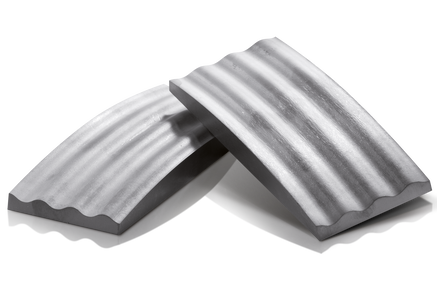

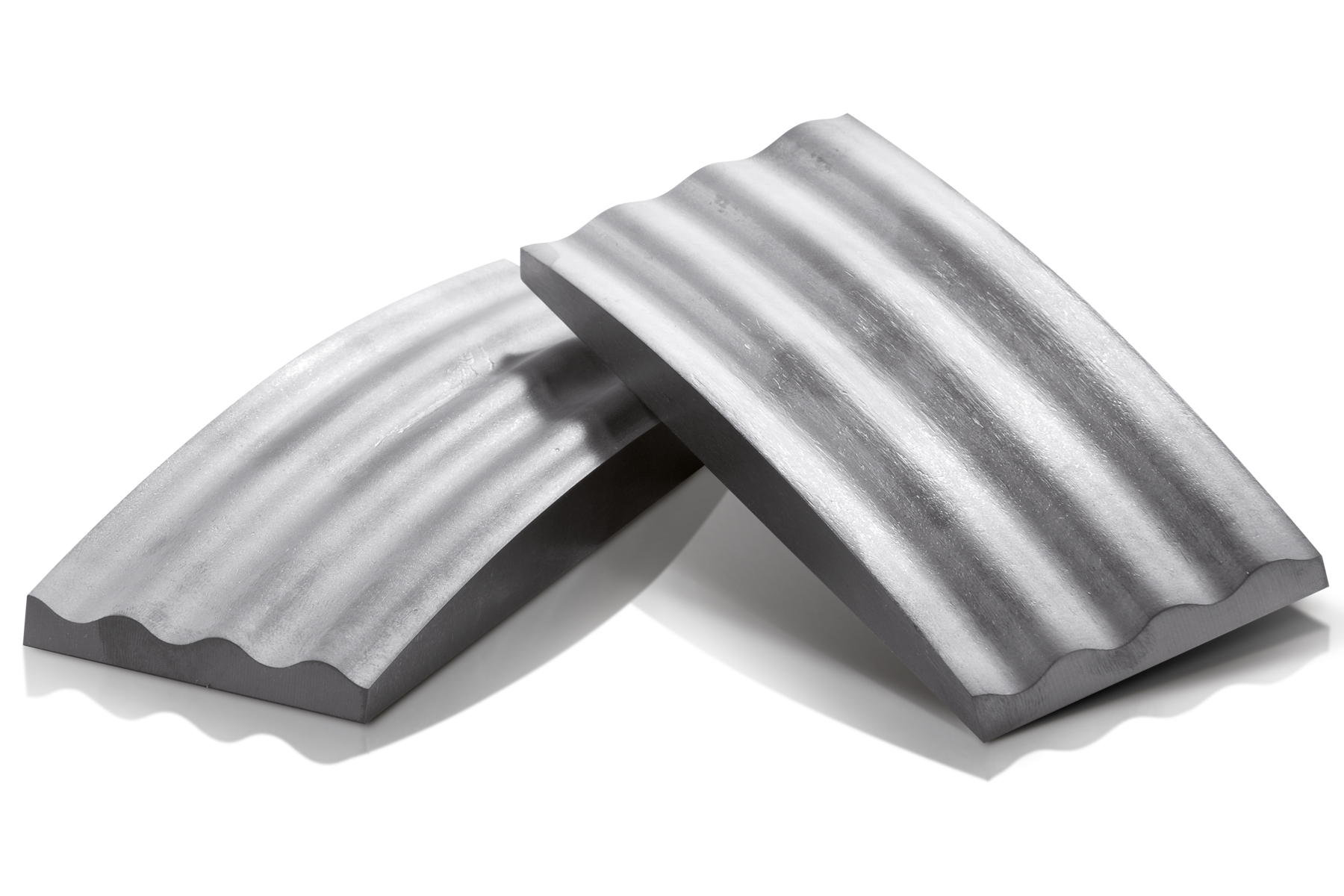

Material of grinding tools manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding)
Jaw width 138 x 198 mm
Gap width setting 1 - 40 mm
Gap width display scale
Zero point adjustment yes
Hinged hopper yes
Dust extraction unit yes
Central lubrication yes
Process line version optional
Collector capacity 27.5 l / 35.4 l
Drive 3-phase motor
Drive power 3.0 kW
Electrical supply data different voltages
Power connection 3-phase
Protection code IP 54
W x H x D closed 670 x 1450 x 1600 mm
Net weight ~ 700 kg
Standards CE

Please note:
*depending on feed material and instrument configuration/settings

Function Principle

The Jaw Crusher BB 300 is a robust and powerful forced-feed crusher. The feed material passes through the no-rebound hopper and enters the crushing chamber. Size reduction takes place in the wedgeshaped area between the fixed crushing arm and one moved by an eccentric drive shaft. The elliptical motion crushes the sample which then falls under gravity.

As soon as the sample is smaller than the discharge gap width, it falls into a removable collector. The continuous gap width setting with scale ensures optimum size reduction in accordance with the set gap width.

Subject to technical modifications and errors
