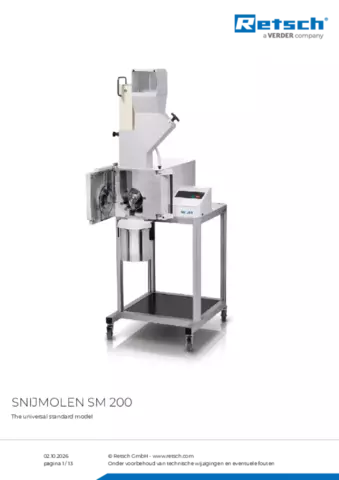

Cutting Mill SM 200

Cutting mills are suitable for the grinding of soft, medium-hard, elastic, fibrous, and heterogeneous mixes of products. The new cutting mill SM 200 is a powerful and easy-to-operate instrument for efficient primary and fine size reduction. Cleaning is made particularly easy.Within the group of the RETSCH cutting mills, it is the universal standard model which covers a vast range of applications with its strong 2.2 kW drive and 1,500 rpm rotor speed. When operated with the optional cyclone-suction-combination, the SM 200 is also suitable for grinding light sample materials or smaller quantities. In combination with the wide choice of bottom sieves, hoppers and collecting vessels, the mill can be easily adapted to varying application requirements.

Toepassingen

afval, aluminium slag, beenderen, diervoeders, electronic components, folies, harsen, hout, kabels, karton, kruiden, kunststoffen, leder, ligniet, materiaalmengsels, non-ferro metalen, papier, pharmaceutische producten, plantenmaterialen, plastic toys, polymers, rubber, secundaire brandstoffen, stro, textiel, voederpellets, voedsel, ...

Voordelen

optimum cutting effects thanks to double acting cutting bars
quick and easy cleaning due to fold-back hopper, smooth surfaces and push-fit rotor
powerful size reduction with 2.2 kW drive
defined final fineness due to bottom sieves with aperture sizes from 0.25 - 20 mm
wide range of accessories including various hoppers, collection systems, rotors and sieves
highest safety standards due to engine brake, central locking device, electronic safety check and safety base frame

Kenmerken

Toepassingen	snijvermaling
Toepassingsdomein	biologie, chemie / kunststoffen, engineering / electronica, geneesmiddel / medicijnen, landbouw, Milieu / Recycling, voedsel
Toevoermateriaal	zacht, medium-hard, taai, elastisch, vezelig
Maalprincipe	scheren, snijden
Korrelgrootte materiaal*	< 60 x 80 mm
Eindfijheid*	0.25 - 20 mm
Snelheid bij 50 Hz (60 Hz)	1,500 min^-1
Rotor omtreksnelheid	9.4 - 11.4 m/s
Rotordiameter	129.5 mm
Rotortypes	parallelsectierotor / 6-schijvenrotor
Trechtertypes	standaard, lange stukken
Materiaal van maalwerktuigen	gehard staal, roestvrij staal, staal voor het malen zonder zware metalen, wolfraamcarbide
Zeefmaten	trapezoidale gaten 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm vierkante gaten 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm
Opvangsystemen/capaciteiten	opvangcontainer 5 l / optioneel: 30 l opvangeenheid 0.25 / 0.5 l cycloon-stofzuigercombinatie (0.25 l - 5 l)
Aandrijving	3-fasenmotor
Aandrijfvermogen	2.2 kW
Gegevens electriciteit	verschillende spanningen
Aansluiting electriciteit	3-fasen
Motorrem	ja
Beschermingsklasse	IP54
B x H x D gesloten	576 (1090 geopend) x 1675 x 760 mm (met onderstel en standaard trechter)
Netto gewicht	~ 90 kg without hopper
Documentatie	Toepassings- & applicatievideo
Standaarden	CE
*afhankelijk van toegevoerd materiaal en configuratie/instellingen van toestel

Principe

Size reduction in the Cutting Mill SM 200 takes place by cutting and shearing forces. The sample comes into contact with the rotor, and is comminuted between the blades and the stationary double acting cutting bars inserted in the housing.In the 6-disc rotor, spirally arranged reversible hard metal plates operate by cutting in sequence. The knives of the parallel section rotor carry out comminution with a powerful cutting action. The dwelling time of the sample in the chamber is short; as soon as it is small enough to pass through the openings of the bottom sieve it is discharged and collected in the receptacle. The rotorspeed of 1.500 min-1 ensures gentle and rapid size reduction. The optional cyclone-suction-combination not only has a cooling effect on the sample but also improves the discharge of material from the grinding chamber.

Onder voorbehoud van technische wijzigingen en eventuele fouten
